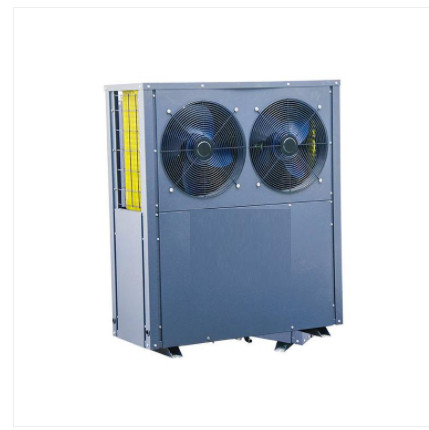

DN50 Air Source Dc Inverter Heat Pump 1L Energy Saving 88A
DN50 Air Source Dc Inverter Heat Pump 1L Energy Saving 88A
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: KCHR-13I/BP Side wind
High Light:

88A Dc Inverter Heat Pump


Dc Inverter Heat Pump 1L


DN50 Inverter Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Cooling Capacity: 13kW(3kW-15kW)
Heating Capacity: 6.8 KW
Refrigerant/charge Volume: R410A/1750g
Voltage: 220V~50Hz
Running Temp: Instant Hot Water -25℃~45℃
Specification: 100-600 Litres
Product Description

Features of Energy Saving Air Source Heat Pump Water Heater for House with Capacity 100-600 Litres

Main functions

·Settable electric heater function

The indoor heating system can be different,example floor heating , fan coil units ,or radiators with different heating water temperature.The conditions for boosting the electric heater could be adjustable , to fit different types of indoor heating.

·Heating Curves

The inbuilt heating curves help to create the more comfortable indoor temperature for users.The heating curves can be adjustable by users according to their living habit,Also,heating curves help to save more energy.

·AUTO Sterilization for hot water

The hot water mode contains the AUTO sterilization function once every week,heating the hot water by electric heater up to 65DegC and keeping 15min. This function is enabled when hot water mode is enabled and runs fully automatically.

. Works with heating demand signal

One heating system would contain different types of heating , and choose the suitable heater for energy saving as per condition changes. Suoher DC inverter heat pump controller receives a remote ON/OFF signal of 230V to start/standby. This ON/OFF signal can be from solar controller, room thermostat,or the master controller of the house heating system.

·Circulation pump setting for heating /cooling

The circulation pump working mode in heating / cooling circuit can be adjustable according to practical conditions of the heating system.

·Smart phone APP control

The heat pump can be controlled by smartphone APP. The APP can monitor mode,status and errors, and can operate power on/off, mode setting, temperature setting and timer function,all the necessary functions that users may need.

. Other functions

-Works with solar system.-Memory function.

-Displays all symbols on controller screen.-All protections for refrigerant system.-All protections for water circuits.


Company brief introduction
Over 20 years production experience, thanks to R&D hard and smart working, company is authorized over 400 patents, products quality play a lead role in HVAC system field

Our strong and professional technical and marketing team ready to make best service!

Pre order(Inquiry progress):

Check with customer about usage, request specifications, enviroment and other request

Make details proposal/offer to customer

Order Processing

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers

  • After sale service

  • 2 years warranty

  • Feedback and solution will be provided within 1 working day

  • Free technical support!

Technical paremeters of Energy Saving Air Source Heat Pump Water Heater for House with Capacity 100-600 Litres

Nominal heating capacity
at room temperature(kW)
Nominal input power
at room temperature(kW)
Rated voltage(Hz) 380V3N-50
Low temperature
nominal heatingWkW)
Low temperature
nominal input power(kW)
Maximum input power(kW) 40
Maximum current(A) 88
noisedb(A) <78
Anti-shock level I
waterproof level IPX4
Caliber of inlet and outlet DN50
Unit size (mm) 2206x1030x2170
Unit Weight kg) 750

The nominal working conditions at room temperature are: ambient dry bulb 20°C, ambient wet bulb 15°C, initial water temperature 15°C, and ending water temperature 55. (2; The nominal low temperature conditions are: ambient dry bulb 72, ambient wet bulb 61, initial water temperature 15°C, and ending water temperature 55.

DN50 Air Source Dc Inverter Heat Pump 1L Energy Saving 88A 0

DN50 Air Source Dc Inverter Heat Pump 1L Energy Saving 88A 1
