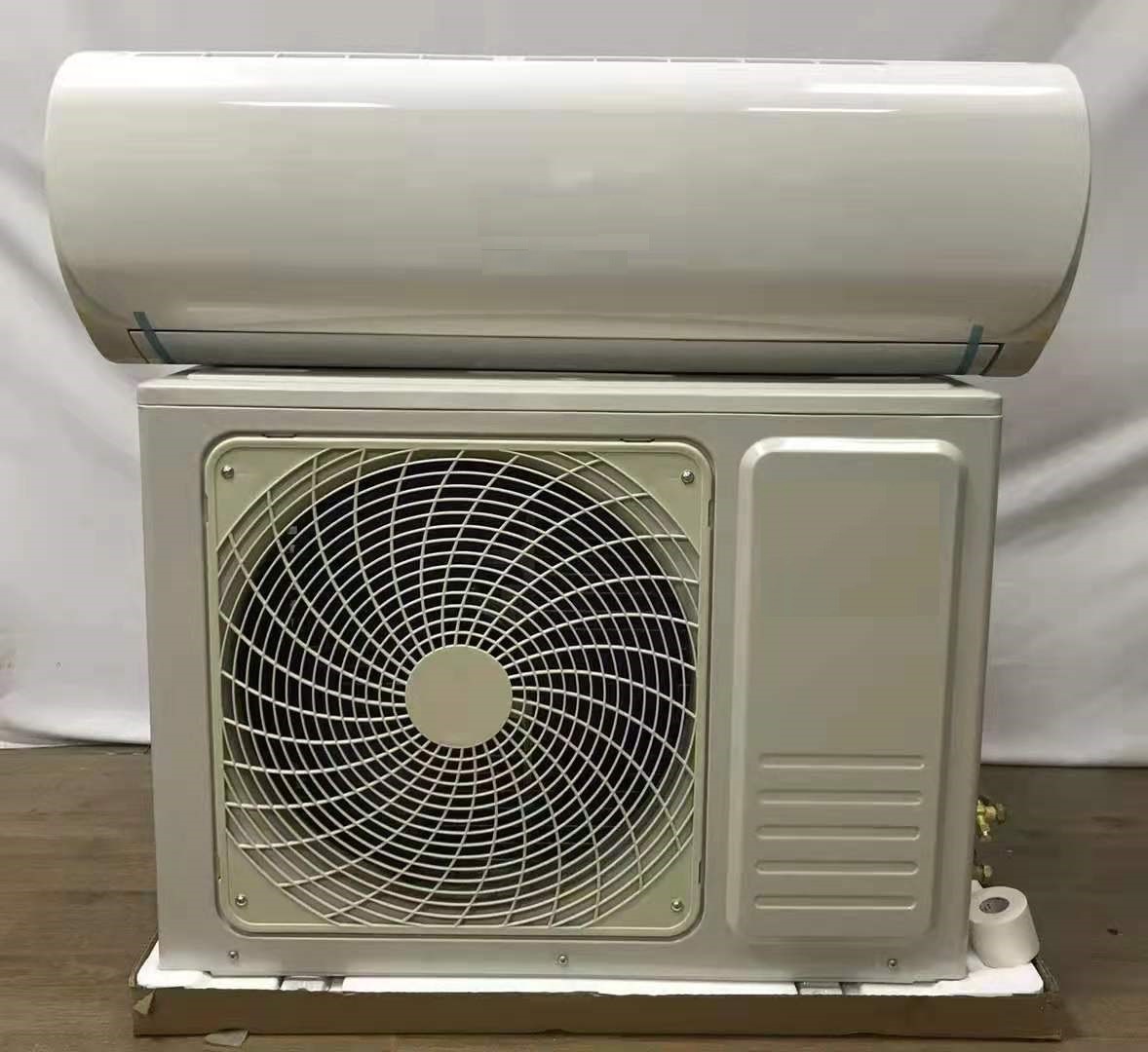

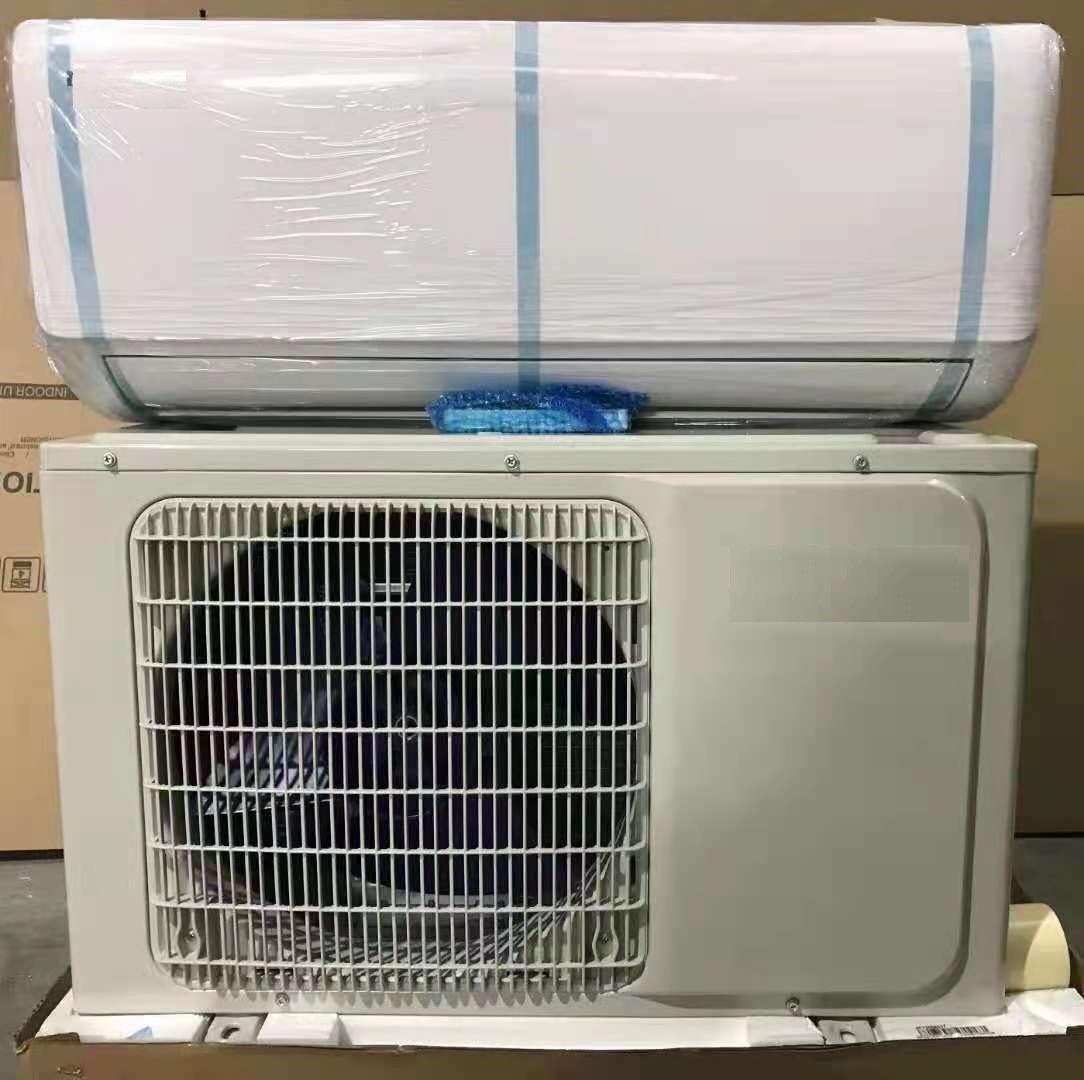

Features of R22 12000BTU Cooling&Heating Wall Split Inverter Air Conditioner Home Use super quiet DC Inverter new or second hand
1.Vector Precision Air Supply,More choices for users.
2.Smart Airflow
3.Clean & Healthy:55℃ High Temperature Self-cleaningA evaporator that can clean itself
OEM/ODM service!
Specification for R22 12000BTU Cooling&Heating Wall Split Inverter Air Conditioner Home Use super quiet DC Inverter new or second hand
| Model | KFR-25GW/M | KFR-35GW/M | KFR-51GW/M | KFR-72GW/M | KFR-80GW/M | KFR-90GW/M | |
| Power souce | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | |
| Horsepower(P) | 1 | 1.5 | 2 | 3 | 3.5 | 4 | |
| Capacity (BTU) | 9000BTU | 12000BTU | 18000BTU | 24000BTU | 30000BTU | 36000BTU | |
| Cooling capacity | 2500W | 3496W | 5100W | 7200W | 7600W | 8800W | |
| Cooling powet input | 820W | 1160W | 1650W | 2200W | 2450W | 3220W | |
| Heating capacity | 2550W | 3530W | 5000W | 7000W | 7700W | 9000W | |
| Heating powet input | 860W | 1230W | 1600W | 2100W | 2250W | 3100W | |
| Current input | 4.2A | 5.9A | 7.8A | 9.8A | 11.5A | 13.8A | |
| Air Flow Volume(M3/h) | 450 | 550 | 900 | 950 | 1350 | 1500 | |
| Ratde current input | 5.9A | 7.9A | 12.3A | 13 | 18.5A | 21A | |
| Indoor/Ourdoor noise | 30~36/45db(A) | 36~42/48db(A) | 39~45/55db(A) | 42~46/55db(A) | 46~51/56db(A) | 48~53/58db(A) | |
| Compressor | GMCC | GMCC | GMCC | GMCC | GMCC | GMCC | |
| Refrigerants | R22/520g | R410/860g | R410A/1500g | R410A/1650g | R410A/2130g | R410A/2590g | |
| Pipe diameter | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 12.7 | 9.52 / 15.88 | 9.52 / 15.88 | 9.52 / 15.88 | |
| Weight | 9/29KG | 11/35KG | 13/43KG | 14/54KG | 18/58KG | 20/72KG | |
| Product Dimensions (L*W*H)mms |
Indoor unit | 790*280*200 | 790*280*200 | 890*300*210 | 1020*320*260 | 1180*330*280 | 1320*350*290 |
| Outdoor unit | 600*250*450 | 780*260*550 | 850*300*600 | 850*320*700 | 850*320*700 | 900*320*860 | |
| Packing Dimensions (L*W*H)mm |
Indoor unit | 865*330*260 | 870*350*275 | 980*370*300 | 1100*390*320 | 1350*400*330 | 1480*420*360 |
| Outdoor unit | 760*350*550 | 860*350*600 | 950*400*680 | 990*400*690 | 990*400*750 | 1120*500*900 | |
| Quantities | 20GP(28m³) | 126 units | 105 units | 75 units | 68 units | 58 units | 38 units |
| 40HQ(68m³) | 308 units | 258 units | 185 units | 165 units | 140 units | 90 units | |
1.We guarantee that the inquiry will be replied within 24 hours on workday.
2.We are an integrated manufacturing and trading company for many years.
3.OEM available:
We can help you to design and put it into production according to your ideas.
ODM&OEM available:
Customized product specifications.
Customized logo and carton.
Provide samples.
4.We can offer CKD/SKD for products,the price normally 5-10% higher than normal one price only.
5.We can make the printing artworks(such as user manual/packing/rating label) in your language for free.
6.After-sale service:
All products have 12 months warranty for complete unit.
The main spare parts has 3-year warranty,We'll replace it for free.
The compressor has 5-year warranty.
We can guide installation and assembly online.
7.Fast delivery:
Sample order: 7~10 days
50~100pcs: 15~25 days
1 MOQ: 30~40days
>1000pcs: 50~75days
If you have any other questions,you can leave us message or inquiry then we will contact you. Or you can directly call us or
sendus direct mail or fax to consult us.
