Various air conditioner to offer
I. Residential type: Wall Split Mounted Type, Window Type, Floor Standing Type, Portable Type and Dehumidifiers

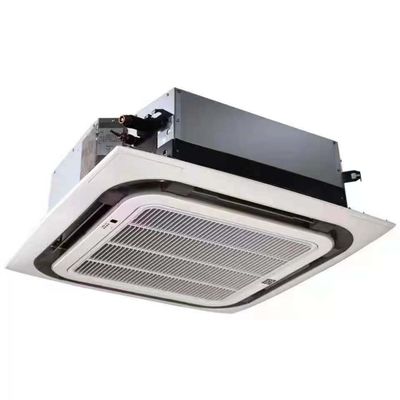

II. Light Commercial type: Duct Type, Ceiling Cassette Type, Floor Ceiling Type, PTAC
III. Heavy commercial type: Water Chillers, Air Chillers, VRF systems, MINI-VRF Systems, Rooftop Packages
IV. Full functional Hybrid Solar Air Conditioners
We offer ODM /OEM servicer,CE certification, 9000-36000 btu
Function: cooling/heating only, both heating and cooling
With products delivery 2 % extra capacitance, transducer and electric motor as spare part
| Model | KFR-25GW/M | KFR-35GW/M | KFR-51GW/M | KFR-72GW/M | KFR-80GW/M | KFR-90GW/M | |
| Power souce | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | 220-240V/50Hz-60Hz | |
| Horsepower(P) | 1 | 1.5 | 2 | 3 | 3.5 | 4 | |
| Capacity (BTU) | 9000BTU | 12000BTU | 18000BTU | 24000BTU | 30000BTU | 36000BTU | |
| Cooling capacity | 2500W | 3496W | 5100W | 7200W | 7600W | 8800W | |
| Cooling powet input | 820W | 1160W | 1650W | 2200W | 2450W | 3220W | |
| Heating capacity | 2550W | 3530W | 5000W | 7000W | 7700W | 9000W | |
| Heating powet input | 860W | 1230W | 1600W | 2100W | 2250W | 3100W | |
| Current input | 4.2A | 5.9A | 7.8A | 9.8A | 11.5A | 13.8A | |
| Air Flow Volume(M3/h) | 450 | 550 | 900 | 950 | 1350 | 1500 | |
| Ratde current input | 5.9A | 7.9A | 12.3A | 13 | 18.5A | 21A | |
| Indoor/Ourdoor noise | 30~36/45db(A) | 36~42/48db(A) | 39~45/55db(A) | 42~46/55db(A) | 46~51/56db(A) | 48~53/58db(A) | |
| Compressor | GMCC | GMCC | GMCC | GMCC | GMCC | GMCC | |
| Refrigerants | R22/520g | R410/860g | R410A/1500g | R410A/1650g | R410A/2130g | R410A/2590g | |
| Pipe diameter | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 12.7 | 9.52 / 15.88 | 9.52 / 15.88 | 9.52 / 15.88 | |
| Weight | 9/29KG | 11/35KG | 13/43KG | 14/54KG | 18/58KG | 20/72KG | |
| Product Dimensions (L*W*H)mms |
Indoor unit | 790*280*200 | 790*280*200 | 890*300*210 | 1020*320*260 | 1180*330*280 | 1320*350*290 |
| Outdoor unit | 600*250*450 | 780*260*550 | 850*300*600 | 850*320*700 | 850*320*700 | 900*320*860 | |
| Packing Dimensions (L*W*H)mm |
Indoor unit | 865*330*260 | 870*350*275 | 980*370*300 | 1100*390*320 | 1350*400*330 | 1480*420*360 |
| Outdoor unit | 760*350*550 | 860*350*600 | 950*400*680 | 990*400*690 | 990*400*750 | 1120*500*900 | |
| Quantities | 20GP(28m³) | 126 units | 105 units | 75 units | 68 units | 58 units | 38 units |
| 40HQ(68m³) | 308 units | 258 units | 185 units | 165 units | 140 units | 90 units | |
After sales services:FAQ
1. Why to Choose Our Factory and Products ?
We Are Manufacturer and Have More Than 10 Years Experted Experience in This Field.
2. Why to Trust Us and Products ?
There is An Old Sayings: Seeing is believing.
We Warmly Welcome Friends from All Over the World to Take A Visit.
We Are Willing to Provide Samples and Spare Parts Free of Charges for Double Checking.
3. Is It Reliable with Us ?
Of Course, the Business is Under the Protect from the Beginning to the End.Have export over 40 countries,good reputation, competitive price and quality.
Mutual Trust Brings Mutual Benefits and Long-Term Cooperation.
4. What Will We Do for Our Customers ?
We Can Do Pre-inspection for You Which is A Good Idea for Both.
We Will Surely Send the Goods According to the Sample Sealed and Agreed in the PI and Other Documents.
Besides,We Also Provide 24 Hours Online Technical Supports and Lifetime After-Sale Service
