PRODUCT DESCRIPTION
All in one heat pump high temperature heat pump for cooling heating and hot water Domestic
Real estate All in One Air Source Heat Pump
High-efficiency heat pump system, smart and energy-saving
Heat pump special compressor, fast heating, high water temperature, energy saving and stable system
Horizontal wall mounting does not take up space
Horizontal wall-mounted design, installation is more relaxed, and perfectly coping with narrow spaces

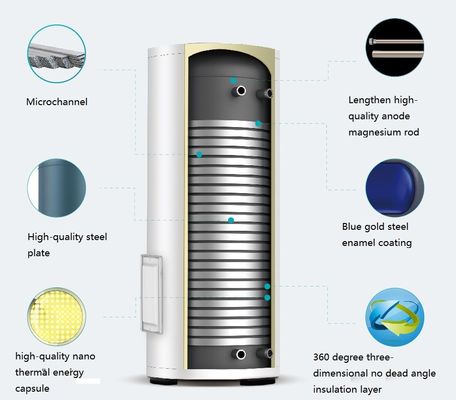

Blue gold steel enamel liner
280,000 times of pulse pressure test, no leakage, no scaling, corrosion resistance, clean and healthy water quality
Sealed cabin design, enjoy quietness
Exquisite craftsmanship creates a library-level mute, sleeps peacefully without disturbing
Blue gold steel enamel liner
280,000 times of pulse pressure test, no leakage, No scaling, corrosion resistance, clean and healthy water quality
Integrated design, easy to install
Small footprint, saving space and making installation easier and faster
Dedicated brand compressor
Special brand compressor for heat pump, higher heating efficiency, no need to wait for hot water gushing out
Intelligent wire control, beautiful and exquisite
Fashion design, simple and delicate, pleasing to the eye
All in one heat pump high temperature heat pump for cooling heating and hot water Domestic
Factory introduction
• Leomon is specialized in the research and development, production
and sales of new energy products such as enamel pressure water
tanks, solar energy, and air energy water heaters. • Supplier for many high-tech enterprises. Leomon continuously
innovates designs, obtains national patents, and possesses key
technologies. The company always insists on high quality
• The quality route is to create high-quality new energy products. The
products have passed the European Union CE, SOLAR KEYMARK,
North American ETL, Australia WATER MARK, British water and other
international certifications.
Specification of
All in one heat pump high temperature heat pump for cooling heating and hot water Domestic
All in one heat pumps specification | ||||||
Item | KRS16A-80H | KRS16A-100H | KRS37B-150V | KRS37B-200V | KRS37B-350V | KRS37B-420V |
Rated Capacity | 80L | 100L | 150L | 200L | 350L | 420L |
EER | 1 | |||||
Energy efficiency ratio | 3.4 | 3.4 | 3.46 | 3.46 | 3.49 | 3.49 |
Rated voltage/ frequency | 220V~50HZ | |||||
Heating power | 750W | 750W | 1800W | 1800W | 5300 W | 5300 W |
Heating capacity | 16L/h | 16L/h | 37L/h | 37L/h | 50L/h | 50L/h |
Rated max water temperature | 75℃ | |||||
Max input power | 2450W | 2450W | 2200W | 2200W | 5000W | 5000W |
Heat pump rated power | 220W | 220W | 520W | 520W | 1300W | 1300W |
Rated power of electric heating | 1500W | 1500W | 1500W | 1500W | 2500W | 2500W |
Rated pressure of water tank | 0.8MPa | |||||
noise | 45 dB(A) | |||||
weight KG | 65 | 72 | 74 | 86 | 205 | 235 |
Refrigerant | R22 | R22 | R22 | R22 | R134A | R134A |
Working temperature | 5~45℃ | |||||
Product dimensions mm | Φ470×1075 | Φ470×1225 | Φ525×1620 | Φ525×1950 | 675*937*1720 | 675*1006*1720 |
Package dimensions mm | 550×520×1195 | 550×520×1345 | 590×590×1710 | 590×590×2045 | 715*960*1810 |
715*1080*1810 |
