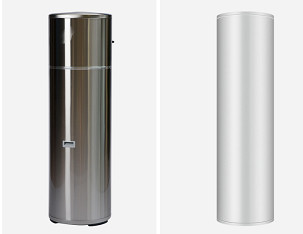

Water Circulation Domestic Air Energy Water Heater All In One Heat Pump
Water Circulation Domestic Air Energy Water Heater All In One Heat Pump
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC ROHS
Model Number: KRS16A-80H
High Light:

Domestic Air Energy Water Heater


Water Circulation Air Energy Water Heater


50L All In One Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Water Valume: 80-420L
Heating Power: 750-5300W
Heating Capacity: 16-50 L
Application: Outdoor, Hotel, Household, Bathroom
Item: Domestic Hot Water Heat Pump
Compressor:: Rotary
Product Description

Water circulation domestic air energy water heater All In One Heat Pump top 10 heat pumps


1. The integrated air-energy water heater adopts the international famous brand electronic expansion valve to adjust the flow and pressure of the refrigerant more accurately, so that the refrigerant can fully evaporate and absorb the heat in the air, which greatly improves the energy efficiency ratio (COP) of the unit.

2. The integrated air energy water heater adopts spiral coaxial heat exchanger, which has higher heat exchange efficiency and is not easy to scale.

3. The key components are all products of listed companies, which are stable, reliable, durable, and quality guaranteed.

4. Complete unit protection and complete engineering supporting functions, high and low temperature protection, overcurrent protection, exhaust high temperature protection, phase sequence protection, water shortage protection, antifreeze protection, crankshaft heating and other multiple protection functions. It has the functions of water level display, timing water replenishment, constant temperature water replenishment, timing water supply, water return timing switch machine, wire control switch machine and so on.

5. One-piece air energy water heater models with ambient temperature range can be selected according to different regions: standard type (-5~45℃), low temperature type (-15~15℃), ultra-low temperature type (-25~45℃, jet Enthalpy increase)


Factory introduction
• Leomon is specialized in the research and development, production
and sales of new energy products such as enamel pressure water
tanks, solar energy, and air energy water heaters. • Supplier for many high-tech enterprises. Leomon continuously
innovates designs, obtains national patents, and possesses key
technologies. The company always insists on high quality
• The quality route is to create high-quality new energy products. The
products have passed the European Union CE, SOLAR KEYMARK,
North American ETL, Australia WATER MARK, British water and other
international certifications.


Specification of

All in one heat pump high temperature heat pump for cooling heating and hot water Domestic

All in one heat pumps specification
Item KRS16A-80H KRS16A-100H KRS37B-150V KRS37B-200V KRS37B-350V KRS37B-420V
Rated Capacity 80L 100L 150L 200L 350L 420L
Energy efficiency ratio 3.4 3.4 3.46 3.46 3.49 3.49
Rated voltage/ frequency 220V~50HZ
Heating power 750W 750W 1800W 1800W 5300 W 5300 W
Heating capacity 16L/h 16L/h 37L/h 37L/h 50L/h 50L/h
Rated max water temperature 75℃
Max input power 2450W 2450W 2200W 2200W 5000W 5000W
Heat pump rated power 220W 220W 520W 520W 1300W 1300W
Rated power of electric heating 1500W 1500W 1500W 1500W 2500W 2500W
Rated pressure of water tank 0.8MPa
noise 45 dB(A)
weight KG 65 72 74 86 205 235
Refrigerant R22 R22 R22 R22 R134A R134A
Working temperature 5~45℃
Product dimensions mm Φ470×1075 Φ470×1225 Φ525×1620 Φ525×1950 675*937*1720 675*1006*1720
Package dimensions mm 550×520×1195 550×520×1345 590×590×1710 590×590×2045 715*960*1810



Water circulation domestic air energy water heater All In One Heat Pump top 10 heat pumps


What are the advantages of the integrated air energy water heater? Why is it so popular? Below, let us take the school hot water project as an example to explain.

School hot water has two characteristics: one is the large number of users, and the consumption of hot water is large; the other is that the water use time is concentrated, which is similar to that of domestic hot water. These two characteristics require hot water equipment to meet the requirements of high efficiency, energy saving, stability and comfort. In the past, school hot water supply equipment mostly used gas, oil boiler or solar water heater, but the former consumes too much energy and the latter heat supply is unstable. Therefore, these two types of hot water supply equipment are not very ideal.

But the integrated air-energy water heater is different. The integrated air-energy water heater pump uses the heat in the air to heat, and it is not affected by weather, geography, environment and other factors during heating. It can be used as long as there is air, and its adaptability is very good. Strong, it can provide constant temperature hot water service for teachers and students all year round, and energy saving is also very good. According to statistics, heating one ton of tap water (normal temperature tap water is generally 15 degrees) to a bath temperature (55 degrees), only about 11 degrees of electricity is needed.

At the same time, the integrated air energy water heater adopts heat preservation water tank water storage heating, and has a microcomputer control system. The system can automatically complete heating, adding water, and heat preservation according to the water temperature and water volume in the water tank, ensuring uninterrupted hot water supply for 24 hours
