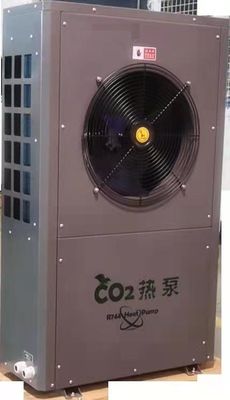

Principle Introduction of 7.5kw CO2 heat pump air source water source residential hot water high temperature 90℃

The compressor sucks low-temperature and low-pressure gas carbon dioxide refrigerant from the evaporator, and compresses the carbon dioxide refrigerant into a high-temperature and high-pressure supercritical fluid through work. The high-temperature and high-pressure supercritical fluid enters the gas cooler to exchange heat with water, and is cooled in the gas cooler. The high-pressure fluid releases a lot of heat, and the water absorbs the heat released and the temperature continues to rise. After the high-pressure fluid is throttled and depressurized by the expansion valve, in the evaporator, the fan absorbs the heat in the surrounding air and evaporates into low-pressure gas, which is sucked into the compressor and compressed, so that it is repeatedly circulated to provide hot water.

Features of 7.5kw CO2 heat pump air source water source residential hot water high temperature 90℃
Natural environmental protection refrigerant: CO2 refrigerant, ODP is 0, GWP is 1, no pollution to the environment, non-toxic, non-flammable;
High water outlet temperature: the supply/return water temperature can reach 65°C/45°C, and the highest outlet water temperature can reach above 75°C, suitable for radiators;
Excellent low-temperature performance: at -35°C ambient temperature, heating is still normal;
High efficiency: The heating performance COP can reach 1.8 at an ambient temperature of -30°C;
Wide range of application: it can work normally in the ambient temperature range of -35℃~20℃, suitable for most cold regions in northern my country.

7.5kw CO2 heat pump air source water source residential hot water high temperature 90℃, besides the following specifications, also others availible, welcome to inquiry



Monobloc CO2 Heat Pump Heating System
Unit type		SJKRS-28 II/C	SJKRS-36II/C	SJKRS-55 II/C
Specifications		7.5HP	10HP	15HP
Power supply		Three-phase five-wire380V/50Hz
Heating mode		Direct heat/cycle type
Standard working condition	Heating capacity( kw )	27.5	36.7	55.1
	Input Power(kW)	6.1	8.2	13.7
	COP	4.5	4.5	4.5
	Hot Water flow(m³/h)	0.59	0.79	1.18
High temperature condition	Heating capacity kw )	23.9	28.5	51.5
	Input Power(kW)	7.5	8.9	16.1
	COP	3.2	3.2	3.2
	Hot Water flow(m³/h)	0.27	0.33	0.59
Low temperature condition	Heating capacity( kw )	17.3	21.4	34.8
	Input Power(kW)	6.2	7.6	12.4
	COP	2.8	2.8	2.8
	Hot Water flow(m³/h)	0.32	0.4	0.65
Components Information	Size of water pipe joint	DN20		DN25
	Water heat exchanger	Plate or sleeve heat exchanger
	Air Heat Exchanger	Aluminum Fin for copper tube
	compressor type	Semi-closed reciprocating
	Operation Panel	Color touch screen
Maximum outlet temperature(℃)		90℃
Refrigerants		R744 (CO2 )
Design pressure(MPa)		High side 15, low side 8
Dimensions (L*W*H mm)		1450x950x1450	1600x950x1500	1850x1150x1900
Noise (dB)		56	59	62
Weight(kg)		550	660	780
SCOPE of use	Feed water temperature(℃)	5~ 40
	Feed water pressure	0.05~ 0.4
	Effluent temperature(℃)	55~ 90
	Maximum flow	1.2	1.5	2.4
	Ambient temperature(℃)	’-20~43
