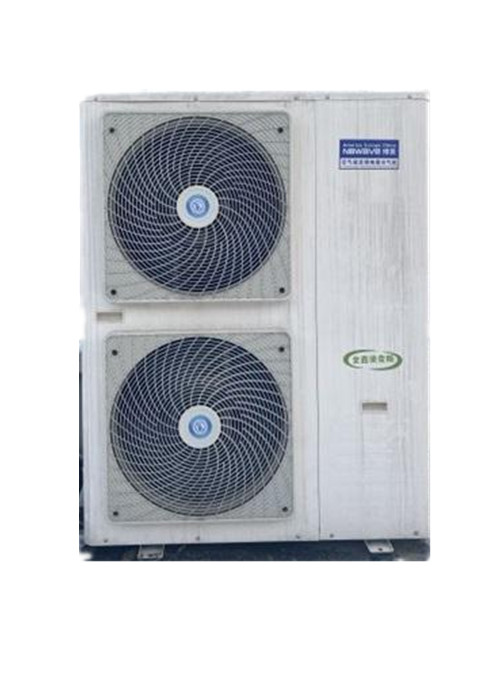

17.4kw Water Resistant EVI Air Source Heat Pump 380V
Negotiable
MOQ
Negotiable
Price
17.4kw Water Resistant EVI Air Source Heat Pump 380V
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-19II/CY
High Light:

17.4kw EVI Air Source Heat Pump

,

380V EVI Air Source Heat Pump

,

Water Resistant EVI Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Specifications
Specificaition: DKFXRS-19II/CY/ Air Source Heat Pump Water Heater
Power: 220/380V As Per Customer Choice
Condenser: High Efficiency Shell And Tube Heat Exchanger
Function: Cooling,Heating,hot Water,heating/hot Water,DHW
Refrigerant: R410A,R407C/R410A,R22/R407C,R143a,R407c
Installation: Freestanding,Wall Mounted,Wall Mounted/Freestanding
Product Description

Features of EVI air to water (air source)heat pumps 17.4 Kw EVI Monobloc Air To Water Heat Pump

Leomon heat pumps enjoy longer lifespan 17.4 Kw EVI Monobloc Air To Water Heat Pump

This kind of An energy-saving air energy heat pump water supply device, comprising a first water tank, a second water tank, an air energy heat pump, a circulating water pump, and a filter. The first water tank is connected to the air energy heat pump, and the right side of the air energy heat pump is also fixed A second water tank is provided; the top of the air energy heat pump is fixedly provided with a circulating water pump, the suction port of the circulating water pump is connected with the heat exchanger of the air energy heat pump through a water pipe, and the drain is connected with the filter. The structure of the utility model is reasonable. By first heating the water with higher temperature and liquid level, it can not only increase the heat exchange rate, but also save energy, and effectively improve the working efficiency of the equipment; the filter can effectively filter impurities such as scale in the water, Improve water quality; and through the probe and control valve, it can effectively avoid serious damage to equipment due to abnormal high and low pressure

EVI air source heat pumps are designed for domestic/commercial hot water and house heating in cold areas where lowest air temperature is above -30℃.

An ultra-low temperature heat pump hot water unit is adopted, including a low-temperature enthalpy-increasing compressor connected in a loop, a heat exchanger group and a flash liquid storage tank, and the heat exchanger group is provided with a heat exchanger 1 and a heat exchanger connected side by side. Second, there is a fan on one side of the heat exchanger, the second heat exchanger is arranged inside the water tank, and the heat exchanger one is connected to the sixth interface of the flash storage tank through an expansion valve. The second heat exchanger is connected to the seventh interface of the flash storage tank through the expansion valve two. The utility model reduces the exhaust temperature of the compressor by using the low-temperature enthalpy increase technology, so that the refrigerant flow rate is increased, and the refrigerant flow is extremely high. The efficiency of the compressor is greatly improved, while the refrigeration cycle is improved, and the circulating amount of the working fluid at low temperatures is ensured, which greatly reduces the attenuation of the heating capacity.



Company introduction:

Leomon technology rnjoy rich experience in supplying air source heat pumps, supply its own brand and OEM for customers worldwide.

Products series: air source heat pumps for household, water heater, swimming pool heat pumps, heating system

Keep working at technical and commercial ability, company is athorized over 300 patents, norminated factory for supplying heat pumps.

Quality Control:

100% products inspection before delivery, 3 phrases test to guarantee right quality and quantity before delivery

Whole lifespan after sale service

Low temperature Air source heat pumps
Spec. DKFXRS-19II/CY
Nominal heating at room temperature(kW) 17.4
Nominal power consumption at room temperature(kW 4.6
Low temperature heating(kW) 8.5
Low temperature power consumption(kW) 3.68
Maximum input power(kW) 8.5
Maximum current(A) 15
Power Spec.(Hz) 380V3N-50
Refrigerant/charge amount R22/6500g
noisedb(A) <66
Water resistancekPa <65
Anti-shock level I
waterproof level IPX4
Circulation port diameter DN32
Unit size (mm) 780x820x1700
Unit Weight(kg) 265
