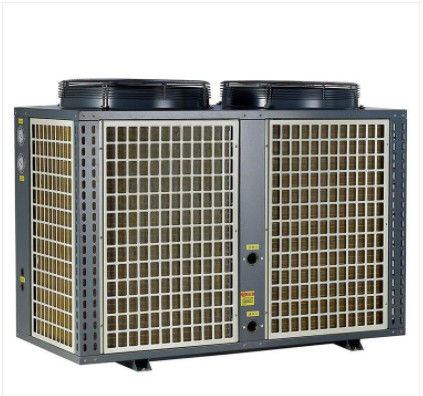

Features of 3kW-15kW Full Inverter Air Source Heat Pump Multi-Functional Radiant Heating Cooling And Domestic Hot Water(DHW)
Main functions
· Heating, cooling and hot water
There are 3 modes: heating , cooling and hot water.The combination of the modes extends the utilization of Suoher DC inverter heat pumps to the whole year. Users can choose the following modes.
-Heating
-Hot water
-Heating+hot water-Cooling
-Cooling +hot water.
Modular control system reduces energy loss
The host provides moderate energy requirements according to the end, reducing unnecessary energy loss.
The main machine does not contain electricity auxiliary heat, energy saving
The host machine of all series products of Leomon heat pumps does not contain electricity and auxiliary heat, which saves unnecessary operation cost
Gold - aluminum condensation process rapid frost
Adopts American gold-aluminum finned evaporator technology and unique precious metal coating, which can effectively improve the evaporation efficiency of air and rain water according to the operation condition of air energy in special environment. -25℃ can also be highly effective for heating.
Company brief introduction
Over 20 years production experience, thanks to R&D hard and smart working, company is authorized over 400 patents, products quality play a lead role in HVAC system field
Over 20% sales volume are invested on improving products research and company service imporovement, we are happy to say"We cannot promise that equipment won't break, that software won't fail, or that we will always be perfect. What we can promise is that if something goes wrong, we will rise to the occasion, take action, and help resolve the issue, and the most important is we have abilidty to solve! ."
Quality control:
100% inspection for each product, 3 phrases test before delivery, free spares supply, good prize if found any unqualified items
Production line:
3 production lines to guarantee production capacity and quick delivery, 2 shifts working
Technical paremeters of 3kW-15kW Full Inverter Air Source Heat Pump Multi-Functional Radiant Heating Cooling And Domestic Hot Water(DHW)
| Item | KCHR-13I/BP Side wind) |
|
| Rated voltage | 220V~50Hz | |
| Cooling and heating | Nominal cooling capacity |
13kW(3kW-15kW) |
| Nominal cooling power consumption |
4.6KW | |
| Nominal cooling(COP) | 2.82 | |
| IPLV | 4.13 | |
| Nominal heating capacity | 14kW(3.5kW-16kW) | |
| Nominal heating power consumption |
4.5KW | |
| Heating | Nominal heating capacity | 10.5KW |
| Nominal heating power consumption |
2.65KW | |
| Nominal heating(COP) | 3.96 | |
| Maximum operating current | 33A | |
| Maximum power consumption | 6.6KW | |
| Rated water flow | 2.24m²/h | |
| Refrigerant/charge volume | R410A/4000g | |
| noise | ≤56dB(A) | |
| Water resistance | ≤15kPa | |
| Maximum working pressure on low pressure/high pressure side |
4.5Mpa/0.15Mpa | |
| Allowable working pressure on suction/exhaust side |
4.5Mpa/0.15Mpa | |
| Anti-shock level | I | |
| waterproof level | IPX4 | |
| Unit size (l× w × h) | 1030×410×1390(mm) | |
| (Cold and warm) Caliber of inlet and outlet |
DN32 | |
| (Hot water) Caliber | DN25 | |
| Application area | 100㎡ | |
Nominal refrigeration conditions: ambient dry bulb 35℃, outlet temperature 7℃. Nominal heating conditions: ambient dry bulb 7℃, ambient wet bulb 6℃,.outlet temperature 45℃
Nominal hot water production conditions: ambient dry bulb 20℃, ambient wet bulb 15℃, initial water temperature 15℃, end water temperature 55℃
