Principle of Air Source Heat Pumps: Renewable Heating Solutions
When the air source heat pump is in operation, the evaporator absorbs heat from the ambient heat energy in the air to evaporate the heat transfer working fluid. The working fluid vapor is compressed by the compressor and the pressure and temperature rise, and the high temperature vapor passes through a special ring bonded to the outer surface of the water storage tank When it is piped, the condenser condenses into liquid and transfers the heat to the water in the air source heat pump storage tank. [2]
Heat pump working fluid

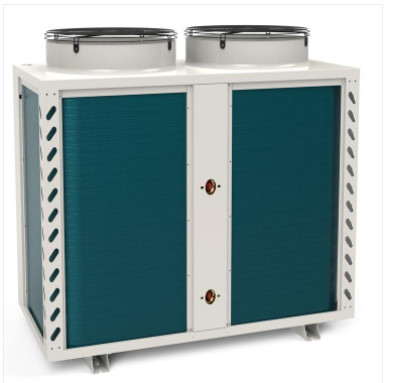

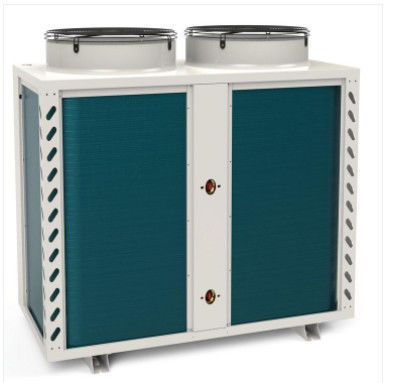

Air source heat pump heater
Air source heat pump heater (2 photos)
The heat transfer working fluid of the air source heat pump is a special substance. Its boiling point is minus 40°C under normal pressure and its freezing point is below minus 100°C. The substance is liquid when it is cold, but it is easy to evaporate into gas, and vice versa. In actual operation, the evaporation limit temperature of the heat transfer medium in the air source heat pump is about minus 20°C, so the ambient temperature of 5°C is also "hot" to such a low temperature, even the temperature of snow, such as 0°C , It’s also hot in comparison, so some heat can still be exchanged
Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.
Our strong and professional technical and marketing team ready to make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and stability.
During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!
Technical paremeters for Pros And Cons Of Air Source Heat Pumps Air To Water HVAC Heating System
| Constant temperature swimming pool heat pump | |||||||
| Spec. | KRY-8II | KRY-12II | KRY-24II | KRY-48II | KRY-96II | KRY-145II | KRY-220II |
| Rated heating capacity(A24/26oC) | 8kw | 12kw | 24kw | 48kw | 96kw | 145kw | 220kw |
| Rated power(kW) | 1.56 | 2.35 | 4.7 | 9.3 | 18.5 | 23.6 | 42.5 |
| COP | 5.1 | 5.1 | 5.1 | 5.16 | 5.41 | 6.14 | 5.17 |
| Rated heating capacityA20/26oC | 7.5kw | 11kw | 21kw | 44 kw | 90kw | 138kw | 208kw |
| Rated power(kW) | 1..5 | 2.3 | 4.5 | 8.6 | 17.5 | 24.1 | 41.5 |
| COP | 5 | 4.78 | 4.66 | 5.11 | 5.14 | 5.73 | 5 |
| Cooling Capacity(kW) | 3.8 | 5.7 | 11.3 | 23.7 | 40 | 58.1 | 98 |
| Consumed Power(kW) | 1.67 | 2.5 | 4.9 | 9.1 | 18.2 | 24.2 | 39 |
| EER | 2.3 | 2.3 | 2.3 | 2.6 | 2.2 | 2.4 | 2.5 |
| Rated voltage(Hz) | 220V 50HZ | 220V 50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
| Maximum input power(kW) | 2 | 3 | 6 | 12 | 24 | 36.5 | 61 |
| Maximum current(A) | 8 | 12 | 24 | 42 | 80 | 90 | 130 |
| Water flownWh | 2.3 | 3.5 | 7 | 13 | 32 | 41 | 62 |
| noise dB(A) | <50 | <50 | <65 | <68 | <69 | <71 | <73 |
| Anti-shock level | I | I | I | I | I | I | I |
| waterproof level | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 |
| Unit size (mm) | 910x350x835 | 1030x410x865 | 780x820x1700 | 1550x780x1700 | 1550x1550x1700 | 2360x1550x1840 | 2206x2020x2170 |
| Unit Weight(kg) | 65 | 95 | 260 | 380 | 760 | 2100 | 4005 |
