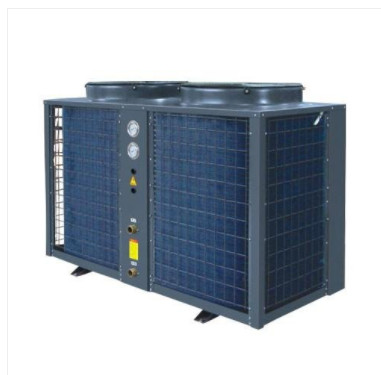

Strength of Monoblock Split DC INVERTER SYSTEMS Smart Energy Solutions
Energy class A++
Free domestic hot water in summer
Minimal architectural impact
Increase in building value
Fast and effective cooling
Operating range from -32°C to +50°C
Elevated seasonal efficiency
DHW temperature up to +75°C
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.
Our strong and professional technical and marketing team ready to make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and stability.
During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!
Technical paremeters for Monoblock Split DC INVERTER SYSTEMS Smart Energy Solutions
| Normal temperature Air source heat pumps | |||||||
| Spec. | KFXRS-9I/CY | KFXRS-11I/CY | KFXRS-11II/CY | KFXRS-19I/CY | KFXRS-19II/CY | KFXRS-28II/CY | KFXRS-42II/CY |
| Nominal heating capacity at room temperature(kW) | 9.6 | 10.8 | 10.8 | 19 | 19 | 28 | 42.5 |
| Nominal input power at room temperature(kW) | 2.17 | 2.7 | 2.7 | 4.19 | 4.19 | 6.2 | 9.2 |
| Rated voltage(Hz) | 220V-50 | 220V-50 | 380V3N-50 | 220V-50 | 380V3N-50 | 380V3N-50 | 380V 3N-50 |
| Low temperature heating(kW) | 7.8 | 8.8 | 8.8 | 15.5 | 15.5 | 23 | 34.5 |
| Low temperature input power(kW) | 2.15 | 2.65 | 2.65 | 4.18 | 4.18 | 6.18 | 9.1 |
| Maximum input power(kW) | 3 | 4.2 | 4.2 | 8 | 8 | 8 | 16 |
| Maximum current(A) | 16 | 23 | 8 | 32 | 13 | 13 | 24.5 |
| noisedb(A) | <55 | <63 | <63 | <66 | <66 | <62 | <63 |
| Anti-shock level | I | ||||||
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of outlet | DN20 | DN20 | DN20 | DN32 | DN32 | DN32 | DN40 |
| Unit size (mm) | 1010x350x835 | 1030x410x865 | 1030x410x865 | 1030x410x1390 | 1030x410x1390 | 820x780x1700 | 1550x780x1700 |
| Unit Weight(kg) | 84 | 88 | 88 | 126 | 126 | 260 | 400 |
