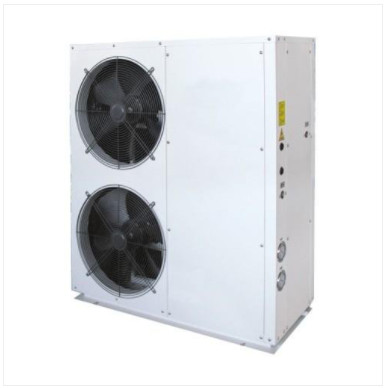

Strength of Monobloc Air Source Water Heater All In One Heat Pump
Integrated process of floor heating and air conditioning reduces installation faults
In the strategic deployment of "integration of host parts" for Leomon heat pumps floor heating air conditioners and ultra-low temperature heating machines, Leomon heat pumps hydraulic balancer and floor heating air conditioners integrator have been released to reduce the installation threshold and installation faults, save installation time, and improve the quality of the whole machine and the energy efficiency of the system.
Ship cabin positioning monitoring system, accurate detection of water temperature
Leomon heat pumps air commercial hot water unit adopts ultrasonic rangefinder to measure the distance between the water surface and the reference position. The weak current power supply is adopted. The ultrasonic rangefinder does not directly contact with the water in the hot water storage box, which makes it safer to use
Dual working conditions of broadband diversion technology, prolong the life of the unit
Leomon heat pumps commercial heat pump unit dual working conditions of broadband diversion combined with temperature compensation technology, in the state of temperature change, to ensure the compressor to achieve the best working state, prolong the service life, improve thermal efficiency.
Modular control system reduces energy loss
The host provides moderate energy requirements according to the end, reducing unnecessary energy loss.
The main machine does not contain electricity auxiliary heat, energy saving
The host machine of all series products of Leomon heat pumps does not contain electricity and auxiliary heat, which saves unnecessary operation cost.
Leomon heat pumps introduction for Air To Water Heat Pumps Innovative Low-Energy HVAC Systems
Leader for air source heat pumps, decades experience,authorized over100 patents, leader for swimming pool air source heat pumps and other pumps, member for editing heat pumps field standards, strong and professional technical team
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.
Our strong and professional technical and marketing team ready to make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and stability.
During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!
Technical paremeters for Monobloc Air Source Water Heater All In One Heat Pump
| Low temperature hot water unit parameters | ||||
| Spec. | DKFXRS-11I/R | DKFXRS-11II/R | DKFXRS-16I/R | DKFXRS-16II/R |
| Nominal heating capacity at room temperature(kW) | 113 | 10.9 | 16 | 16.8 |
| Nominal heating at room temperature(kW) | 2.56 | 2.65 | 3.9 | 4.1 |
| Low-temperature nominal heating capacity(kW) |
4.8 | 4.75 | 7.9 | 8.1 |
| Low temperature nominal heating(kW) | 2.1 | 2.15 | 3.38 | 3.5 |
| Maximum input power(kW) | 4.2 | 4.2 | 6.6 | 6.8 |
| Maximum current(A) | 23 | 8 | 32 | 12 |
| Power Specifications(Hz) | 220V ~ 50 | 380V 3N ~ 50 | 220V ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/5600g | R22/5600g | R22/6000g | R22/6000g |
| noisedb(A) | <62 | <62 | <65 | <65 |
| Water resistancekPa | <55 | <55 | <100 | <100 |
| Anti-shock level | I | |||
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of inlet and outlet |
DN32 | DN32 | DN32 | DN32 |
| Unit size (mm) | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 |
| Unit Weight(kg) | 142 | 142 | 148 | 149 |
