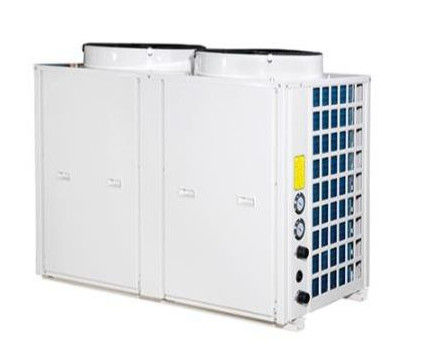

Stainless Steel Housing Air Source Hot Tub Heater Pump R410A
Stainless Steel Housing Air Source Hot Tub Heater Pump R410A
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-38II/CY
High Light:

IPX4 Hot Tub Heater Pump


R410A Hot Tub Heater Pump


DHW Hot Tub Heater Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Working Medium: R410A
Heating Capacity:: 3.5-300Kw
Compressor: Copeland
Housing Material: Stainless Steel Or Spray Coating
Heat Exchanger: Tube In Shell Heat Exchanger
Heating: Circulating Instant Hot Water
Product Description

Universal Hot Tub Heater Air Source Heat Pump

HEAT PUMPS is a device that provides heat energy from a source of heat to a destination called a "heat sink". Heat pumps are designed to move thermal energy opposite to the direction of spontaneous heat flow by absorbing heat from a cold space and releasing it to a warmer one. Leomon Heat Pumps  are designed to suit different applications like Swimming pool heating, Swimming pool cooling, domestic water cooling, boiler back up etc.


1. Heating for swimming pool, Spa pool, Sauna, etc.

2. Working condition range: -30℃ to 43℃

3. Max outlet water temperature: 45℃

4. Anti-corrosion, with titanium tube water heat exchanger

5. Copeland or Sanyo scroll compressor

Company introduction

20 years of professional heat pump system technology excellence

We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 12 invention patents, more than 50 other patents, and participated in the preparation of 25 national standards.


Gold - aluminum condensation process rapid frost

Adopts American gold-aluminum finned evaporator technology and unique precious metal coating, which can effectively improve the evaporation efficiency of air and rain water according to the operation condition of air energy in special environment. -25℃ can also be highly effective for heating.


Leader member for editting air source heat pumps standards, top manufacture of various heat pumps for swimming pool, spas, schools, hotels, etc

Strong and professional technical and commercial support!


Universal Hot Tub Heater Air Source Heat Pump

    Nominal heating capacity at room temperature(kW) 9.6 10.8 10.8 19 19 28 42.5
    Nominal input power at room temperature(kW) 2.17 2.7 2.7 4.19 4.19 6.2 9.2
    Rated voltage(Hz) 220V-50 220V-50 380V3N-50 220V-50 380V3N-50 380V3N-50 380V 3N-50
    Low temperature heating(kW) 7.8 8.8 8.8 15.5 15.5 23 34.5
    Low temperature input power(kW) 2.15 2.65 2.65 4.18 4.18 6.18 9.1
    Maximum input power(kW) 3 4.2 4.2 8 8 8 16
    Maximum current(A) 16 23 8 32 13 13 24.5
    noisedb(A) <55 <63 <63 <66 <66 <62 <63
    Anti-shock level I
    waterproof level IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
    Caliber of outlet DN20 DN20 DN20 DN32 DN32 DN32 DN40
    Unit size (mm) 1010x350x835 1030x410x865 1030x410x865 1030x410x1390 1030x410x1390 820x780x1700 1550x780x1700
    Unit Weight(kg) 84 88 88 126 126 260 400
  • Application of Universal Hot Tub Heater Air Source Heat Pump

Swimming pools, spas, restaurants, hotels, schools, household, wherever need heating, cooling or hot water

Some of our projects

Welcome to contact for further details!
