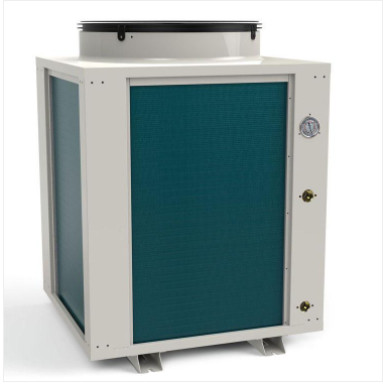

HEAT PUMPS is a device that provides heat energy from a source of heat to a destination called a "heat sink". Heat pumps are designed to move thermal energy opposite to the direction of spontaneous heat flow by absorbing heat from a cold space and releasing it to a warmer one. Leomon Heat Pumps are designed to suit different applications like Swimming pool heating, Swimming pool cooling, domestic water cooling, boiler back up etc.
Description:
1. Heating for swimming pool, Spa pool, Sauna, etc.
2. Working condition range: -30℃ to 43℃
3. Max outlet water temperature: 45℃
4. Anti-corrosion, with titanium tube water heat exchanger
5. Copeland or Sanyo scroll compressor
FEATURES · Controls the heating of two independent reservoirs (tank for sanitary water and tank for heating water) · Control of two equitherm circuits heating (i.e. floor heating and radiator heating) · Controlling of EVI system for high COP and capacity · System is more economical by using load management · System monitors power input to prevent damage by wrong connection, over or under voltage · Controls defrost mode depending on time, temperature and outdoor weather · Automatic alarm and error reports
1. Working air temperature range:-25℃to 45℃.
2. Copeland Enhanced vapour injection (EVI) technology scroll compressor with high COP in cold area.
3. Max water outlet temperature: 60℃.
4. Working mode is changeable between heating and hot water by 3-way valve.
5. Copeland scroll compressor.
6. R407C refrigerant.
7. Linkage function of heat pump ON/OFF controlled by external controlling system.
8. Anti-freeze function.
9. LCD display controller
10. 220V/50Hz/1ph,380V/50Hz/3ph.
Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 12 invention patents, more than 50 other patents, and participated in the preparation of 25 national standards.
Leader member for editting air source heat pumps standards, top manufacture of various heat pumps for swimming pool, spas, schools, hotels, etc
Strong and professional technical and commercial support!
Water Heater Supplying Hot Water/Scouring Bath/Swimming Pool/Domestic Hot Water/Villa Residence/Air Source Heat Pump
Spec. | KRY-8II | KRY-12II | KRY-24II | KRY-48II | KRY-96II | KRY-145II | KRY-220II |
Rated heating capacity(A24/26oC) | 8kw | 12kw | 24kw | 48kw | 96kw | 145kw | 220kw |
Rated power(kW) | 1.56 | 2.35 | 4.7 | 9.3 | 18.5 | 23.6 | 42.5 |
COP | 5.1 | 5.1 | 5.1 | 5.16 | 5.41 | 6.14 | 5.17 |
Rated heating capacityA20/26oC | 7.5kw | 11kw | 21kw | 44 kw | 90kw | 138kw | 208kw |
Rated power(kW) | 1..5 | 2.3 | 4.5 | 8.6 | 17.5 | 24.1 | 41.5 |
COP | 5 | 4.78 | 4.66 | 5.11 | 5.14 | 5.73 | 5 |
Cooling Capacity(kW) | 3.8 | 5.7 | 11.3 | 23.7 | 40 | 58.1 | 98 |
Consumed Power(kW) | 1.67 | 2.5 | 4.9 | 9.1 | 18.2 | 24.2 | 39 |
EER | 2.3 | 2.3 | 2.3 | 2.6 | 2.2 | 2.4 | 2.5 |
Rated voltage(Hz) | 220V 50HZ | 220V 50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
Maximum input power(kW) | 2 | 3 | 6 | 12 | 24 | 36.5 | 61 |
Maximum current(A) | 8 | 12 | 24 | 42 | 80 | 90 | 130 |
Water flownWh | 2.3 | 3.5 | 7 | 13 | 32 | 41 | 62 |
noise dB(A) | <50 | <50 | <65 | <68 | <69 | <71 | <73 |
Anti-shock level | I | I | I | I | I | I | I |
waterproof level | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 | IPV4 |
Unit size (mm) | 910x350x835 | 1030x410x865 | 780x820x1700 | 1550x780x1700 | 1550x1550x1700 | 2360x1550x1840 | 2206x2020x2170 |
Unit Weight(kg) | 65 | 95 | 260 | 380 | 760 | 2100 | 4005 |
Swimming pools, spas, restaurants, hotels, schools, household, wherever need heating, cooling or hot water
Some of our projects
Welcome to contact for further details!
