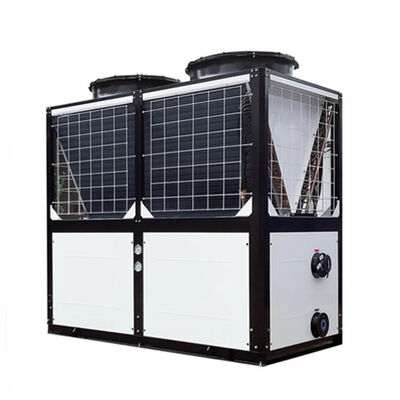

Our high-temperature heat pumps provide efficient industrial heating up to 90-150°C, offering a low-carbon, energy-saving alternative to traditional boilers. They are ideal for industrial hot water, process heating, food processing, chemical plants, and district heating systems.
Features:
1. EVI scroll compressor with high-efficiency design for stable operation in low-temperature environments.
2. High-efficiency condenser tube/shell and tube heat exchanger.
3. Commercial hot water heat pump provides hot water up to 90°C–120°C.
4. Uses a well-known brand electronic expansion valve for precise control and high heating efficiency at different ambient temperatures.
5. Intelligent control system with a simple and clear LCD display.
Advantages:
1. Engineering Efficiency
Commercial heat pumps are designed and manufactured for maximum efficiency.
2. Wide Operating Range
Industry-leading operating range for high-temperature water, chilled water, and simultaneous heating and cooling.
3. Sustainability
Significant reduction in carbon emissions and environmental impact through electrification and the use of low global warming potential refrigerants.
Specifications
| Model CN LM-LM40U | ||||
Power Supply |
380V/3N~/50Hz | 380V/3N~/50Hz | ||
| Condensing Side Operating Temp.Range(℃) | 90~130 | 90~130 | ||
| Evaporating Side Operating Temp.Range(℃) | 50~70 | 10~43 | ||
| Ingress Protection Rating | IPX4 | IPX4 | ||
| Electric Shock Protection | Class l | Class l | ||
| Rated Heating Capacity(kW) | Evaporator Inlet/outlet 65.0 |
Evaporator side Inlet /Oulet Ambient Temp 25℃/20℃ User side water outlet temp. 115℃ |
65.0 | |
| Rated Input Power(kW) | Water Temp. 57℃/52℃ |
21.5 | 30.2 | |
| Rated Operating Current(A) | User side water 38.0 |
50.9 | ||
| Hot Water Volume(L/h) | outlet temp. 115℃ |
930.0 | 930.0 | |
| Rated Input Power(kW) | 29.1 | 53.3 | ||
| Operating Current(A) | 58.0 | 88.2 | ||
| Water Pressure Drop(kPa) | 50.0 | 50.0 | ||
| Rated Water Flow Rate(m³/h) | Hot side 12.0/Cold side 7.5 | 12.0 | ||
| Water Inlet/Outlet Size | 4-G2"(Internal Thread) | 2-G2.5"(Internal Thread) | ||
| Refrigerant | R245fa | R410A+R245fa | ||
| Number of Compressors | 1 | 2 | ||
| Sound Pressure Level@1m (dB(A)) | ≤65 | ≤65 | ||
| Net Dimension(mm) | 1505×1155×1100 | 2100×1050×2010 | ||
| Net Weight(kg) | 500 | 700 | ||
Get more help
If you are interested in our heat pumps, please contact us. Our heat pump experts will provide you with the best solution.
|
|
