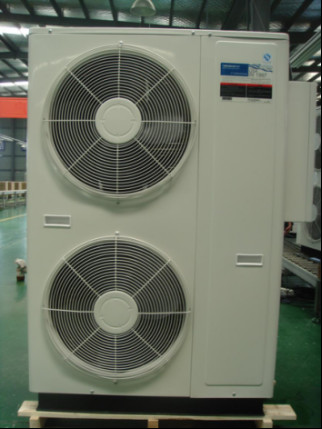

Flower greenhouse thermostatic heating heat pump unit air source heat pump
Vegetable greenhouse heating, fruit greenhouse constant temperature heating heat pump, flower greenhouse cultivation heat pump, modern sightseeing agriculture air energy heat pump, heat pump air conditioning system heating temperature is 18 ℃ ~ 35 ℃, belongs to low temperature heating, small temperature difference, low loss, avoiding energy Waste.
Flower greenhouse thermostatic heating heat pump unit air source heat pump strength
High efficiency tank heat exchanger
Increase the preparation, more adequate heat exchange
The use of superconducting finned tubes enables high-speed heat exchange between refrigerant and water, effectively improving heat exchange efficiency
How to determine the heat pump capacity?
The capacity of the heat pump is mainly determined according to the heating area, floor height, wall insulation, door and window insulation and sealing of the house.
For houses with large heating area and poor thermal insulation, heat pumps with large capacity should be selected;
Houses with small heating area and good insulation can choose a heat pump with a smaller capacity.
The heat pump selection is not the larger the capacity, the better, the appropriate is the best, the heat pump is large, it is easy to cause frequent start and stop, at the same time, the cost is high, and the power distribution is large, causing unnecessary waste; No heating effect.
Spec. | DKFXRS-9I/CY | DKFXRS-11I/CY | DKFXRS-11II/CY | DKFXRS-16I/CY |
Nominal heating at room temperature・(kW) | 9.6 | 10.9 | 10.8 | 16 |
Nominal power consumption at room temperature(kW〕 | 2.17 | 2.63 | 2.7 | 3.9 |
Low temperature heating(kW) | 4.1 | 4.65 | 4.8 | 7.8 |
Low temperature power consumption(kW) | 1.85 | 2.1 | 2.16 | 3.37 |
Maximum input power(kW) | 3 | 4.2 | 4.2 | 6.6 |
Maximum current(A) | 16 | 23 | 8A | 32 |
Power Spec.(Hz) | 220V-50 | 220V-50 | 380V3N-50 | 220V-50 |
Refrigerant/charge amount | R22/2500g | R22/5600g | R22/5600g | R22/6000g |
noisedb(A) | <55 | <62 | <62 | <65 |
Water resistancekPa | <55 | <55 | <55 | <100 |
Anti-shock level | I | I | I | I |
waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
Circulation port diameter | DN20 | DN32 | DN32 | DN32 |
Unit size (mm) | 1010x350x835 | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 |
Unit Weight(kg) | 87 | 142 | 142 | 148 |
Spec. | DKFXRS-16II/CY | DKFXRS-19II/CY | DKFXRS-38II/CY |
Nominal heating at room temperature・(kW) | 16.4 | 17.4 | 38.9 |
Nominal power consumption at room temperature(kW〕 | 4.1 | 4.6 | 8.82 |
Low temperature heating(kW) | 7.5 | 8.5 | 17.6 |
Low temperature power consumption(kW) | 3.4 | 3.68 | 7.3 |
Maximum input power(kW) | 6.8 | 8.5 | 17 |
Maximum current(A) | 12 | 15 | 30 |
Power Spec.(Hz) | 380V 3N-50 | 380V3N-50 | 380V 3N-50 |
Refrigerant/charge amount | R22/6000g | R22/6500g | R22/6500gx2 |
noisedb(A) | <65 | <66 | <68 |
Water resistancekPa | £100 | <65 | <65 |
Anti-shock level | I | I | I |
waterproof level | IPX4 | IPX4 | IPX4 |
Circulation port diameter | DN32 | DN32 | DN40 |
Unit size (mm) | 1030x410x1390 | 780x820x1700 | 1550x780x1700 |
Unit Weight(kg) | 149 | 265 | 435 |
FAQ:
Q1 | How about your delivery time ? |
A1 | Generally, it will take 1 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. |
Q2 | What is your term of delivery ? |
A2 | EXW, FOB, CIF, etc |
Q3 | What is your terms of packing? |
A3 | Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters. |
Q4 | What is your sample policy? |
A4 | We accept the sample order, but the customers have to pay the sample cost and the courier cost. |
Q5 | Do you test all your goods before delivery? |
A5 | Yes, we have 100% test before we pack the goods for delivery |
Q6 | How long is the guarantee time? |
A6 | 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period. |
