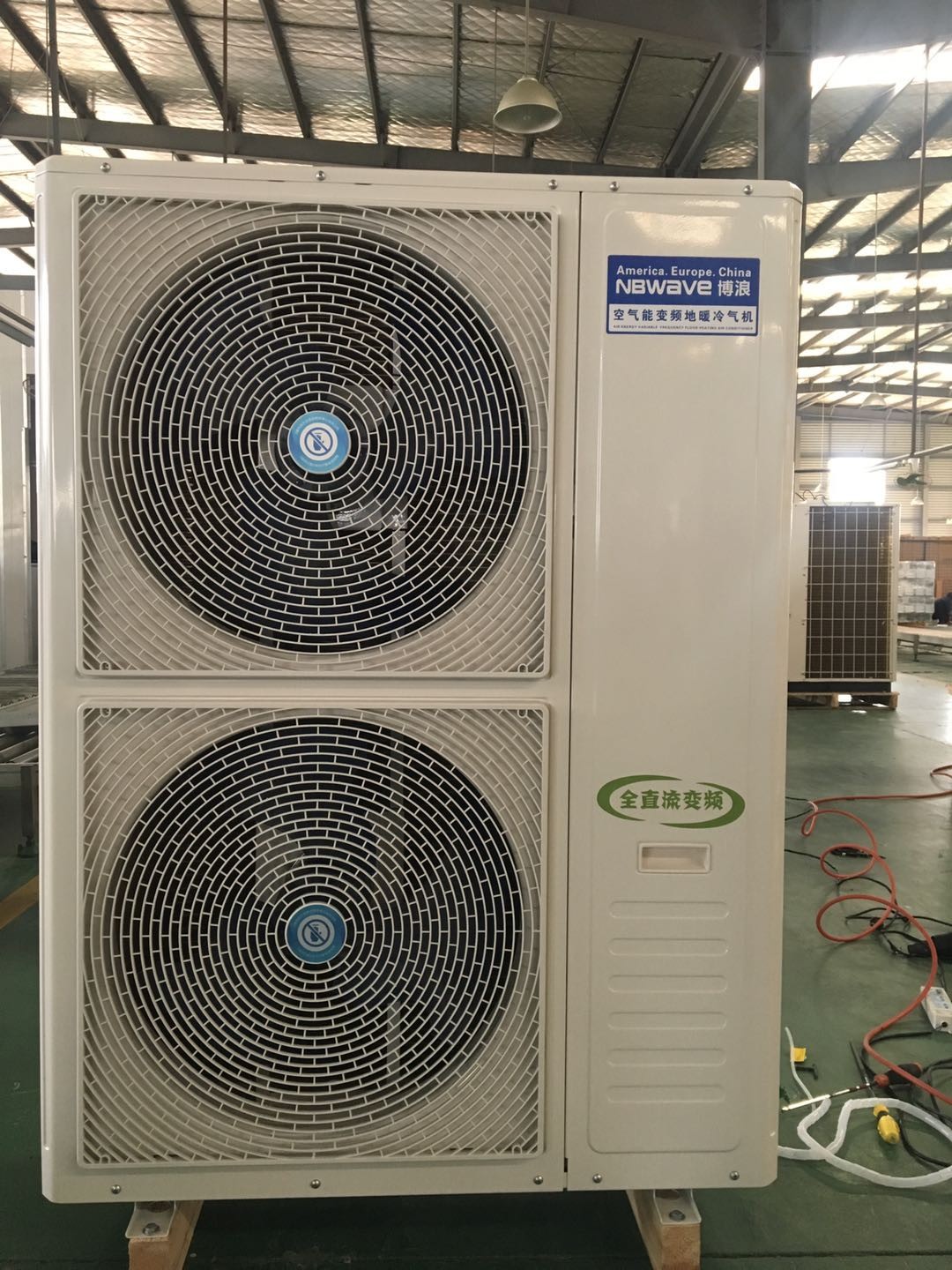

EVI Air Source Monoblock Heating Cooling Heat Pump 200KW DHW
1 pc
MOQ
EVI Air Source Monoblock Heating Cooling Heat Pump 200KW DHW
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CB, CE, EMC, RoHS
Model Number: KCHR-8I/BP Side wind
High Light:

EMC Heating Cooling Heat Pump

,

60dbA EVI Heating Cooling Heat Pump

,

DHW Heating Cooling Heat Pumps

Payment & Shipping Terms
Packaging Details: export package Woonden case or plastic film
Delivery Time: 1-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50,000pcs/year
Specifications
Defrosting: Automatic Defrosting
Working Ambient Temperature: -30-50℃
End Water Temperature: 60℃
Power Ranges: 10-200KW
Low Noise & Vibration: ≤60db(A)
Automatic Control: Wifi Remote Control
Product Description

Decades experience, strong technical and commercial team, over 300 patents, Leomon Technlogy plays top role in producing and supplying heat pumps

Features:

Powerful heating at low temperature Adopting air supplement and enthalpy technology, it can run efficiently even at -30℃.

• High efficiency and energy saving

Adopting patented SCL heat exchange technology, no electric auxiliary heat, high energy efficiency ratio.

Leomon technology developed An ultra-low temperature air energy heat pump unit provides an ultra-low temperature air energy heat pump unit with simple structure, automatic defrosting of the condenser, good defrosting effect, and energy saving, which solves the existing air energy heat pump unit in the prior art In the case of ultra-low temperature, the condenser cannot be defrosted normally, and the defrosting effect is poor. In severe cases, the air energy heat pump water heater or the heating air conditioner cannot work normally and other technical problems. It includes the water tank and the outdoor unit. The outdoor unit is equipped with a compressor and a condenser connected to the compressor through a pipeline. The output and input ends of the heat exchanger are respectively connected to the condenser through upper and lower connecting pipes. The condenser is equipped with a condenser sensor and Several sets of heating fins, the heating fins are parallel to the condenser fins and fixed on the copper tube of the condenser. A water temperature sensor is installed in the water tank. The compressor, heating fins, condenser sensor and water temperature sensor are connected with the controller through the controller. Connect to an external power supply.

Spec. DKFXRS-11I/R DKFXRS-11II/R DKFXRS-16I/R DKFXRS-16II/R
Nominal heating capacity at room temperature(kW) 11.3 10.9 16 16.8
Nominal heating at room temperature(kW) 2.56 2.65 3.9 4.1
Low-temperature
nominal heating
capacity(kW)
4.8 4.75 7.9 8.1
Low temperature nominal heating(kW) 2.1 2.15 3.38 3.5
Maximum input power(kW) 4.2 4.2 6.6 6.8
Maximum current(A) 23 8 32 12
Power Specifications(Hz) 220V ~ 50 380V 3N ~ 50 220V ~ 50 380V 3N ~ 50
Refrigerant/charge amount R22/5600g R22/5600g R22/6000g R22/6000g
noisedb(A) <62 <62 <65 <65
Water resistancekPa <55 <55 <100 <100
Anti-shock level I
waterproof level IPX4 IPX4 IPX4 IPX4
Caliber of inlet
and outlet
DN32 DN32 DN32 DN32
Unit size (mm) 1030x410x1390 1030x410x1390 1030x410x1390 1030x410x1390
Unit Weight(kg) 142 142 148 149



Spec. DKFXRS-19II/R DKFXRS-38II/R DKFXRS-95II/R DKFXRS-190II/R
Nominal heating capacity at room temperature(kW) 18.6 38.8 90 190
Nominal heating at room temperature(kW) 4.5 8.8 19.5 43
Low-temperature
nominal heating
capacity(kW)
8.6 17.7 42 84
Low temperature nominal heating(kW) 3.7 7.35 16.3 32.6
Maximum input power(kW) 8.3 17 40 80
Maximum current(A) 15 30 88 176
Power Specifications(Hz) 380V3N ~ 50 380V3N ~ 50 380V 3N ~ 50 380V 3N ~ 50
Refrigerant/charge amount R22/6500g R22/6700gx2 R410A/8500gX2 R410A/8500gX4
noisedb(A) <66 <68 <78 <81
Water resistancekPa <100 <100 <100 <123
Anti-shock level I
waterproof level IPX4 IPX4 IPX4 IPX4
Caliber of inlet
and outlet
DN32 DN40 DN50 DN75
Unit size (mm) 780x820x1700 1550x780x1700 2206x1030x2170 2206x2020x2170
Unit Weight(kg) 263 431 750 1200



EVI Air Source Monoblock Heating Cooling Heat Pump 200KW DHW 0

EVI Air Source Monoblock Heating Cooling Heat Pump 200KW DHW 1

EVI Air Source Monoblock Heating Cooling Heat Pump 200KW DHW 2

FAQ:

Q1.What does Leomon Technology do and strength?
A:Leomon Technology is a professional manufacturer enjoy over 20 years experience in refrigeration and heating industry. We are leader member and as mainly manager for edditing several air source heat pumps standard. Over 300 patents, our heat pumps are widely used for villas, buildings, commercial buildings, etc



Q2. What is your product series and application?

A: We make full range heat pump products involving air to water heat pump, water to water heat pump ,heat pump drier , industrial water cooled chiller ,swimming pool heat pump and some other relative products . Used for swimming pool, spa, buildings, household, cold places, for heating, cooling, hot water(DHW)



Q3. I am not professional, how do i choose?
A: We have professional technical team, we can offer you plan, just need to tell your application.

Q4. How about the delivery time?
A: If stock, can delivery same day

Q5. What is the MOQ ?
A: You can order even 1 pc, no MOQ request

Q6. OEM order is ok ?
A: Yes. OEM brand is accepted. Please provide your logo and brand authorization to us before production .

Q7: What's the warranty time?

A: 24 month.

Q8. What about quality control?

A:  3C certification, 100% products inspection, free spares supply, free technical support for customers!
