9.6Kw Air To Water Heat Pumps IPX4 Enviromental Friendly
9.6Kw Air To Water Heat Pumps IPX4 Enviromental Friendly
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-9I/CY
High Light:

16A EVI Heat Pumps


9.6kw Air To Water Heat Pumps


IPX4 Air To Water Heat Pumps

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Specificaition: DKFXRS-9I/CY Air Source Heat Pump Water Heater
Power: 9.6 Kw
Noisedb(A): <55
Service: Company Brand Or OEM/odm
Compressor: Rotary,Copeland,*MitsubishI* Inverter Twin Rotary Compressor
Function: Cooling,Heating,hot Water,heating/hot Water,DHW
Product Description

Features of EVI air to water (air source)heat pumps:

It is mainly composed of compressor, heat exchanger, axial fan, heat preservation water tank, water pump, liquid storage tank, filter, electronic expansion valve and electronic automatic controller. After the power is turned on, the axial flow fan starts to run, and the outdoor air passes through the evaporator for heat exchange. The air after the temperature is lowered is discharged from the system by the fan. At the same time, the working fluid inside the evaporator absorbs heat and vaporizes and is sucked into the compressor. A low-pressure working fluid gas is compressed into a high-temperature, high-pressure gas and sent to the condenser. The water forced to circulate by the water pump also passes through the condenser. It is heated by the working medium and sent to the user for use. The working medium is cooled into a liquid, and the liquid is expanded After the valve throttles and cools down, it flows into the evaporator again, and the heat energy in the air is continuously "pumped" to the water, so that the temperature of the water in the heat preservation water tank gradually rises, and finally reaches about 55°C, which is just suitable for people to take a bath. It is the basic working principle of air source heat pump water heater.

EVI air source heat pumps are designed for domestic/commercial hot water and house heating in cold areas where lowest air temperature is above -25℃.


1. High COP to 5.2


2. Multifunction usage to choose: air conditioning, floor heating, cooling, domestic/commercial hot water


3. Efficient and Energy-saving

4. Enviromental friendly

5. Suitable any weather in any season


No matter it is rainy, snow, sunny, the EVI heat pumps always work as normal in high quality performance



The Enhanced Vapor Injection (EVI) technology from Copeland compressor with crankcase heater for special cold area, Danfoss electronic expansion valve, Eaton AC contactor and thermal relay and other brand components of the heat pump guarantee high quality and a long lifespan. All of our screws and clips (both external and internal) are stainless steel. The cabinets we are using are made of GALVANIZED STEEL, making them more rust resistant, durable and affordable.


● Multiple Protections and wifi remote control


The system will be warning automatically if there is non enough water flow nor unstable power, or any others.


● Linkage Function

External signal on/off function


● Guaranteed Safety

Complete isolation of water and electricity avoids electric shock, explosion and poisoning; LCD screen digital controller for automatic operation


● Convenient install

With patented design for integration of spares, the EVI air source heat pump is easily to install in many places, such as garage, balcony, kitchen, etc.fix in one place or separately.


Low temperature Air source heat pumps (EVI)
Nominal heating at room temperature・(kW) 9.6
Nominal power consumption at room temperature(kW〕 2.17
Low temperature heating(kW) 4.1
Low temperature power consumption(kW) 1.85
Maximum input power(kW) 3
Maximum current(A) 16
Power Spec.(Hz) 220V-50
Refrigerant/charge amount R22/2500g
noisedb(A) <55
Water resistancekPa <55
Anti-shock level I
waterproof level IPX4
Circulation port diameter DN20
Unit size (mm) 1010x350x835
Unit Weight(kg) 87
Unit Price usd/set 1377


Company introduction:

Leomon technology rnjoy rich experience in supplying air source heat pumps, supply its own brand and OEM for customers worldwide. Keep working at technical and commercial ability, company is athorized over 300 patents, norminated factory for supplying heat pumps.

Quality Control:

100% products inspection before delivery, 3 phrases test to guarantee right quality and quantity before delivery

Whole lifespan after sale service

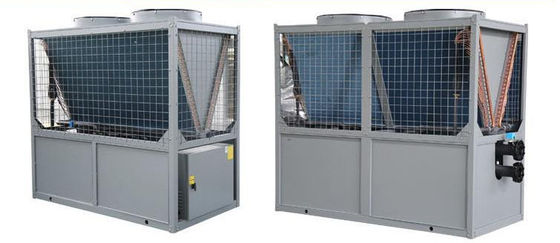

9.6Kw Air To Water Heat Pumps IPX4 Enviromental Friendly 0
