Strength of Stainless Steel Domestic Air Ducted Air Source Water Heater All In One Heat Pump
The closed water replenishment tank is connected to the air-energy heat pump circulation system through the attachment structure, the air-energy heat pump circulating system includes a circulating water pump, the closed water replenishment tank is provided with antifreeze, and the closed water replenishment tank is connected to The water inlet end of the circulating water pump is used to supplement the fluid loss during the operation of the air energy heat pump circulation system; this air energy heat pump closed water replenishment system has a simple and reasonable structure, and can add antifreeze to the air energy heat pump circulation system. It can supplement the loss in the operation of the circulating system, and can also prevent system fouling caused by the use of hard water such as tap water. It replaces and improves the difficulty of replenishing water caused by the installation of an open water replenishment tank at the highest end of the system. The addition of antifreeze also provides antifreeze effect..
Maximum hot water up to 60°C.
● Water proof cover available.
● Air ducted offer free cool air when heating water.
● LCD controller/ Touch panel controller optional.
● Maintenance port 80-150 mm optional.
● Interal/External refrigerant coil optional.
● Mg stick inside water tank for anti-erode protection.
● Optional extra solar coil inside to combine with solar heaters.
● CE/CB approved.
Leomon heat pumps introduction for 200L Air Ducted Heat Pump All In One Domestic Water Heater
Leader for air source heat pumps, decades experience,authorized over100 patents, leader for swimming pool air source heat pumps and other pumps, member for editing heat pumps field standards, strong and professional technical team
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.

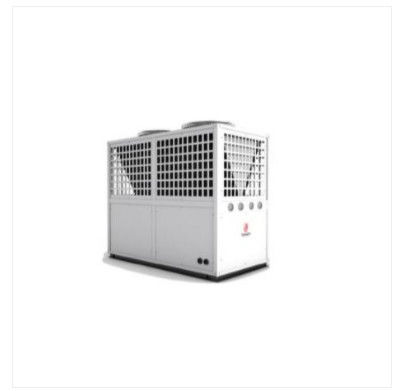

Technical paremeters for Monobloc Air Source Water Heater All In One Heat Pump
| Low temperature hot water unit parameters | ||||
| Spec. | DKFXRS-11I/R | DKFXRS-11II/R | DKFXRS-16I/R | DKFXRS-16II/R |
| Nominal heating capacity at room temperature(kW) | 113 | 10.9 | 16 | 16.8 |
| Nominal heating at room temperature(kW) | 2.56 | 2.65 | 3.9 | 4.1 |
| Low-temperature nominal heating capacity(kW) |
4.8 | 4.75 | 7.9 | 8.1 |
| Low temperature nominal heating(kW) | 2.1 | 2.15 | 3.38 | 3.5 |
| Maximum input power(kW) | 4.2 | 4.2 | 6.6 | 6.8 |
| Maximum current(A) | 23 | 8 | 32 | 12 |
| Power Specifications(Hz) | 220V ~ 50 | 380V 3N ~ 50 | 220V ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/5600g | R22/5600g | R22/6000g | R22/6000g |
| noisedb(A) | <62 | <62 | <65 | <65 |
| Water resistancekPa | <55 | <55 | <100 | <100 |
| Anti-shock level | I | |||
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of inlet and outlet |
DN32 | DN32 | DN32 | DN32 |
| Unit size (mm) | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 |
| Unit Weight(kg) | 142 | 142 | 148 | 149 |
