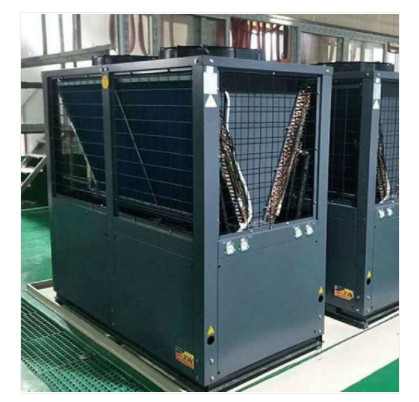

Side Wind Split 60dbA High COP Heat Pump Flexible DN25
negotiable
MOQ
Negotiable
Price
Side Wind Split 60dbA High COP Heat Pump Flexible DN25
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CB, CE, EMC, RoHS
Model Number: KCHR-8I/BP Side wind
High Light:

Split DN25 High COP Heat Pump

,

60dbA Flexible High COP Heat Pump

,

10KW High COP Heat Pump

Payment & Shipping Terms
Packaging Details: export package Woonden case or plastic film
Delivery Time: 1-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50,000pcs/year
Specifications
Install: Flexible, Separate Or Install Together Are Both Ok
Working Ambient Temperature: -30-50℃
After Sale Service: Free Spares Supply 24 Months Warranty
Power Ranges: 10-200KW
Low Noise & Vibration: ≤60db(A), Depends On Machine
Type: Air To Water Air Source Heat Pumps
Product Description

Different KW split heat pumps for various usage



Adopt a connection type split heat pump air conditioner check valve assembly, including a check valve. There is a section of copper pipe on the left and right sides of the check valve. The outer ends of the check valve are connected with a bidirectional capillary tube; The outer end of the left copper pipe on the left side of the valve is processed into a copper pipe bell mouth, and the left copper pipe is sleeved with a copper pipe receiving interface with internal threads. The copper pipe receiving interface can be pressed tightly on the copper pipe horn after moving , And then can be sleeved with the external threaded liquid valve joint of the outdoor unit of the air conditioner; the outer end of the right copper pipe on the right side of the check valve is welded with a single joint with external thread, which can be connected to the liquid pipe of the outdoor unit of the air conditioner. Butted, the utility model becomes a component connected in series between the liquid valve and the liquid pipe of the outdoor unit of the air conditioner. Adopting the one-way valve assembly of the utility model makes it unnecessary to disassemble the external unit of the air-conditioner for the common operation of replacing the one-way valve in air-conditioning maintenance, do not need to discharge refrigerant, and do not need to use welding tools, so as to save time, labor, and reduce maintenance costs.

We are proud to announce the launch of our new Inverter+ commercial range of inverter driven heat pumps

The largest capacity Inverter pool heat pump on the market

The leader for EVI air to water heatpumps factory

Over 300 patents, decades experience, patents parts intergration, flexible installtion, high COP, high effective

Heat pumps working very well till -30℃



Leomon heat pump allows to reduce up to 80% of the energy consumption of a house, using a renewable source of energy that minimizes the CO2 emissions to the environment.

Years of reserch and studying, Our R&D department was able to produce a very compact and easy to install heat pump keeping on it all the controls necessary to regulate your house temperature. our heat pumps is able to work in very extreme weather conditions(-30℃) keeping it's high performance.

An icing and antifreezing device for a casing heat exchanger and a manufacturing method thereof are adopted, and belong to the field of heat pumps. This
A tube-in-tube heat exchanger icing and anti-freezing device includes a tube-in-tube heat exchanger composed of a concentric inner tube and an outer tube, and a plurality of inflatable elastic balls are arranged at equal intervals in the inner tube. The inflatable elastic ball is a butyl rubber ball. The gas inflated inside the inflatable elastic ball is nitrogen. Furthermore, the inflatable elastic ball is adhered and fixed to the inner tube. The diameter of the inflatable elastic ball is half of the diameter of the inner tube. Furthermore, the total volume of the inflatable elastic ball is 0.4 times the internal volume of the inner tube. It can achieve the effects of not being easy to freeze and anti-freezing, and has a simple structure and low cost.

Specification of Different KW split heat pumps for various usage

Unit type SJKRS-28 II/C SJKRS-36II/C SJKRS-55 II/C SJKRS-73 I/C SJKRS-106 IC SJKRS-I60II /C
Specifications 7.5HP 10HP 15HP 20HP 30HP 40HP
Power supply Three-phase five-wire380V/50Hz
Heating mode Direct heat/cycle type
Standard working condition Heating capacity( kw ) 27.5 36.7 55.1 72.8 10.6.5 155.1
Input Power(kW) 6.1 8.2 13.7 16.1 23.6 34.5
COP 4.5 4.5 4.5 4.5 4.5 4.5
Hot Water flow(m³/h) 0.59 0.79 1.18 1.56 2.29 3.33
High temperature condition Heating capacity kw ) 23.9 28.5 51.5 59.5 89 13.1.5
Input Power(kW) 7.5 8.9 16.1 18.6 27.8 41.1
COP 3.2 3.2 3.2 3.2 3.2 3.2
Hot Water flow(m³/h) 0.27 0.33 0.59 0.68 1.02 1.51
Low temperature condition Heating capacity( kw ) 17.3 21.4 34.8 41.5 62.2 94.5
Input Power(kW) 6.2 7.6 12.4 14.8 22.2 33.8
COP 2.8 2.8 2.8 2.8 2.8 2.8
Hot Water flow(m³/h) 0.32 0.4 0.65 0.78 1.16 1.77
Component Information Size of water pipe joint DN20 DN25 DN32 DN40
Water heat exchanger Plate or sleeve heat exchanger
Air Heat Exchanger Aluminum Fin for copper tube
compressor type Semi-closed reciprocating
Operation Panel Color touch screen
Maximum outlet temperature(℃) 90℃
Refrigerants R744 (CO2 )
Design pressure(MPa) High side 15, low side 8
Dimensions (length, width and height mm) 1450x950x1450 1600x950x1500 1850x1150x1900 2050x1150x1950 2670x1410x2150 2290x2270x1980
Noise (dB) 56 59 62 67 70 70
Weight(kg) 550 660 780 860 1180 221360
SCOPE of use Feed water temperature(℃) 5~ 40
Feed water pressure 0.05~ 0.4
Effluent temperature(℃) 55~ 90
Maximum flow 1.2 1.5 2.4 3.2 4.9 6.5
Ambient temperature(℃) ’-20~43















FAQ:

Q1.What does Leomon Technology do and strength?
A:Leomon Technology is a professional manufacturer enjoy over 20 years experience in refrigeration and heating industry. We are leader member and as mainly manager for edditing several air source heat pumps standard. Over 300 patents, our heat pumps are widely used for villas, buildings, commercial buildings, etc



Q2. What is your product series and application?

A: We make full range heat pump products involving air to water heat pump, water to water heat pump ,heat pump drier , industrial water cooled chiller ,swimming pool heat pump and some other relative products . Used for swimming pool, spa, buildings, household, cold places, for heating, cooling, hot water(DHW)



Q3. I am not professional, how do i choose?
A: We have professional technical team, we can offer you plan, just need to tell your application.

Q4. How about the delivery time?
A: If stock, can delivery same day

Q5. What is the MOQ ?
A: You can order even 1 pc, no MOQ request

Q6. OEM order is ok ?
A: Yes. OEM brand is accepted. Please provide your logo and brand authorization to us before production .

Q7: What's the warranty time?

A: 24 month.

Q8. What about quality control?

A:  3C certification, 100% products inspection, free spares supply, free technical support for customers!



Welcome to contact Different KW split heat pumps for various usage!
