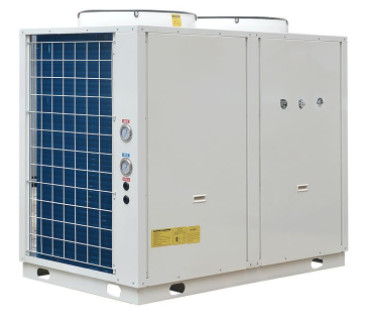

Touch Screen Cop Air Source Heat Pump Environmental Friendly
negotiable
MOQ
Negotiable
Price
Touch Screen Cop Air Source Heat Pump Environmental Friendly
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CB, CE, EMC, RoHS
Model Number: KCHR-8I/BP Side wind
High Light:

200KW cop air source heat pump

,

R744 cop air source heat pump

,

DN20 cop air source heat pump

Payment & Shipping Terms
Packaging Details: export package Woonden case or plastic film
Delivery Time: 1-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50,000pcs/year
Specifications
Install: Flexible, Separate Or Install Together Are Both Ok
Working Ambient Temperature: -30-50℃
After Sale Service: Free Spares Supply 24 Months Warranty
Power Ranges: 10-200KW
Low Noise & Vibration: ≤60db(A), Depends On Machine
Type: Air To Water Air Source Heat Pumps
Product Description

Environmental Friendly Split Air Source Heat Pump



With A wet desulfurization system and a wet desulfurization method. A generator and a waste water evaporator are arranged in a split heat pump system to continuously reduce the temperature of the sulfur-containing flue gas passing into the desulfurization tower to reduce it to below the acid dew point temperature and promote the smoke Gas SO3 condensation and small pollutants grow up for the first time. The sulfur-containing flue gas is used in the wastewater evaporator to evaporate the desulfurization wastewater, and water vapor is generated to be injected into the desulfurization tower to establish a supersaturated water vapor environment to promote the second growth of fine pollutants in the desulfurization flue gas. At the same time, a certain amount of cold and heat are produced by the generator and deep evaporator. The cold is used to purify the deep cooling of the flue gas, build a supersaturated water vapor environment, and promote the third growth of small pollutants, and the heat is used to heat the desulfurization The tower purifies the flue gas to increase its temperature and eliminate the phenomenon of white smoke. In turn, the goal of removing fine pollutants from the desulfurization flue gas, eliminating white smoke, and reducing desulfurization wastewater emissions.

Leomon heat pump allows to reduce up to 80% of the energy consumption of a house, using a renewable source of energy that minimizes the CO2 emissions to the environment.

Years of reserch and studying, Our R&D department was able to produce a very compact and easy to install heat pump keeping on it all the controls necessary to regulate your house temperature. our heat pumps is able to work in very extreme weather conditions(-30℃) keeping it's high performance.

An icing and antifreezing device for a casing heat exchanger and a manufacturing method thereof are adopted, and belong to the field of heat pumps. This
A tube-in-tube heat exchanger icing and anti-freezing device includes a tube-in-tube heat exchanger composed of a concentric inner tube and an outer tube, and a plurality of inflatable elastic balls are arranged at equal intervals in the inner tube. The inflatable elastic ball is a butyl rubber ball. The gas inflated inside the inflatable elastic ball is nitrogen. Furthermore, the inflatable elastic ball is adhered and fixed to the inner tube. The diameter of the inflatable elastic ball is half of the diameter of the inner tube. Furthermore, the total volume of the inflatable elastic ball is 0.4 times the internal volume of the inner tube. It can achieve the effects of not being easy to freeze and anti-freezing, and has a simple structure and low cost.

Specification of Environmental Friendly Split Air Source Heat Pump

Unit type SJKRS-28 II/C SJKRS-36II/C SJKRS-55 II/C SJKRS-73 I/C SJKRS-106 IC SJKRS-I60II /C
Specifications 7.5HP 10HP 15HP 20HP 30HP 40HP
Power supply Three-phase five-wire380V/50Hz
Heating mode Direct heat/cycle type
Standard working condition Heating capacity( kw ) 27.5 36.7 55.1 72.8 10.6.5 155.1
Input Power(kW) 6.1 8.2 13.7 16.1 23.6 34.5
COP 4.5 4.5 4.5 4.5 4.5 4.5
Hot Water flow(m³/h) 0.59 0.79 1.18 1.56 2.29 3.33
High temperature condition Heating capacity kw ) 23.9 28.5 51.5 59.5 89 13.1.5
Input Power(kW) 7.5 8.9 16.1 18.6 27.8 41.1
COP 3.2 3.2 3.2 3.2 3.2 3.2
Hot Water flow(m³/h) 0.27 0.33 0.59 0.68 1.02 1.51
Low temperature condition Heating capacity( kw ) 17.3 21.4 34.8 41.5 62.2 94.5
Input Power(kW) 6.2 7.6 12.4 14.8 22.2 33.8
COP 2.8 2.8 2.8 2.8 2.8 2.8
Hot Water flow(m³/h) 0.32 0.4 0.65 0.78 1.16 1.77
Component Information Size of water pipe joint DN20 DN25 DN32 DN40
Water heat exchanger Plate or sleeve heat exchanger
Air Heat Exchanger Aluminum Fin for copper tube
compressor type Semi-closed reciprocating
Operation Panel Color touch screen
Maximum outlet temperature(℃) 90℃
Refrigerants R744 (CO2 )
Design pressure(MPa) High side 15, low side 8
Dimensions (length, width and height mm) 1450x950x1450 1600x950x1500 1850x1150x1900 2050x1150x1950 2670x1410x2150 2290x2270x1980
Noise (dB) 56 59 62 67 70 70
Weight(kg) 550 660 780 860 1180 221360
SCOPE of use Feed water temperature(℃) 5~ 40
Feed water pressure 0.05~ 0.4
Effluent temperature(℃) 55~ 90
Maximum flow 1.2 1.5 2.4 3.2 4.9 6.5
Ambient temperature(℃) ’-20~43
