| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

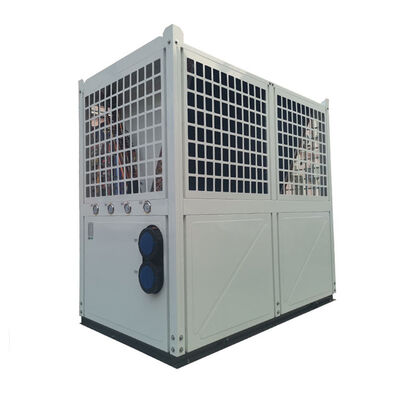

High-temperature air-source heat pumps can supply water at temperatures ranging from 95°C to 150°C, making them ideal for complete boiler replacement or as a backup boiler solution.
Our high-temperature heat pumps are suitable for domestic hot water and space heating applications. They also serve specialized industries—such as food processing, electric forging, spray coating, packaging and printing, chemical manufacturing, and slaughtering—that require hot water temperatures exceeding 55°C.
Features
1. EVI Compressor Technology: Utilizes Copeland EVI compressors for efficient operation across various conditions.
2. Multi-Power Compatibility: Supports both 220V–240V single-phase and 380V–415V three-phase power supplies.
3. Comprehensive Safety Protection: Includes safeguards for temperature, timing, water flow, anti-freezing, and current, as well as pressure switch functions.
4. Flexible Customization: Offers options for full customization, small-batch customization, and production based on specific designs or samples.
5. Wide Range of Applications: Suitable for villas, hotels, factories, hospitals, and student dormitories.
6. Quality Certifications: Holds CE, ISO9001, CCC, CB, RoHS, SASO, and SGS certifications.
7. High Energy Efficiency: Achieves an energy efficiency ratio (EER) of 2.52–2.56, offering approximately 70% energy savings compared to traditional heaters.
Advantages
1. Compressor
Our large-scale heat pumps utilize US-made Copeland scroll compressors, while smaller models use compressors; both are specifically designed for heat pump applications and deliver high operating efficiency.
2. Electrical Control System
The control system manages circulation pumps, water make-up, water supply, auxiliary electric heating, and PID-based automatic defrosting. Users can configure parameters to meet specific project requirements and achieve full system automation.
3. Shell-and-Tube Heat Exchanger
The heat pump employs a high-efficiency shell-and-tube heat exchanger with a heat transfer surface area 3.7 times that of bare-tube designs; its unique configuration and compact spiral structure ensure optimal heat exchange for the refrigerant.
4. Electronic Expansion Valve
We utilize Sanhua expansion valves in conjunction with our proprietary control system to develop a specialized electronic expansion controller. This system employs digital technology to regulate refrigerant flow based on temperature, ensuring optimal flow rates and achieving a higher Coefficient of Performance (COP).
Specifications
| Stacked air source high-temperature steam heat pump(150℃ steam) | ||||||
| Model | FKH-18II/TGW | FKH-45II/TGW | FKH-651I/TGW | FKH-90Il/TGW | FKH-130II/TGW | FKH-250Il/TGW |
| Generate steam quantity | 30kg | 80kg | 100kg | 160kg | 200kg | 360kg |
| Power Specifications | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
| A1 heating capacity(20℃) | 20KW | 45KW | 65KW | 90KW | 130KW | 250KW |
| A1 Heating consumption power |
12KW | 28KW | 40.5KW | 56KW | 81KW | 165KW |
| Maximum operating current | 30A | 70A | 120A | 150A | 200A | 400A |
| Noise | ≤72dB(A) | ≤72dB(A) | ≤75dB(A) | ≤80dB(A) | ≤80dB(A) | ≤86dB(A) |
| Unit size(length x width x height mm) |
1600×780×2000 | 2100×780×2000 | 3260×1030×2400 | 3260×1230×2400 | 3260×1230×2400 | 4000×2260×2600 |
| Steam connection size | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 |
| Size of water replenishment connection pipe |
DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |
| Unit weight(kg) | 240 | 580 | 1180 | 1430 | 2100 | 5000 |
| Price( usd) | 6176 | 12500 | 16470 | 22058 | 30882 | 63235 |
Need Further Assistance
Leomon offers high-quality ODM and OEM services, providing solutions customized to your specific needs. Contact us today to learn more.
|
|
