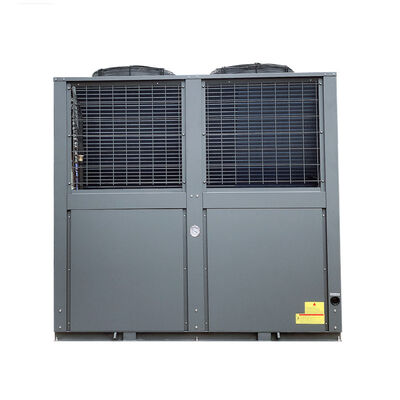

A heavy-duty air source steam heat pump designed specifically for the continuous production of 150°C industrial steam, with a rated output of 100 kg/h. This unit delivers robust performance for facilities with high steam demands while offering significant energy savings.
Engineered for 24/7 operation, the heat pump maintains reliable performance even at ambient temperatures as low as 15°C. With a noise level of ≤75 dB(A), it is suitable for most industrial environments.
Advantages
1. Designed for Continuous Operation
Equipped with industrial-grade scroll compressors and large-scale evaporators, the heat pump is built for extended run times. An intelligent defrost cycle ensures stable output even in humid or low-temperature conditions. The Mean Time Between Failures (MTBF) exceeds 30,000 hours.
2. Significant Energy Savings
Compared to electric boilers (which have an energy efficiency ratio of 1.0), this heat pump achieves a ratio of 1.6 (65/40.5 = 1.6), reducing electricity consumption by approximately 38%. Despite the significant temperature rise required to reach 150°C, the long-term energy savings are substantial. For users currently relying on diesel or gas boilers, the savings are even more dramatic (potentially reaching 50%–70%, depending on fuel prices).
3. Integrated Safety Protection
The unit features high-pressure cut-off, low-pressure protection, compressor over-current protection, freeze protection, and a manual-reset high-temperature thermostat. It complies with CE certification and international industrial safety standards.
4. Flexible Installation
Despite its compact footprint, the unit can be installed on outdoor concrete pads or steel frames. Its corrosion-resistant casing (comparable to 304 stainless steel) ensures rust resistance. Multiple units can be cascaded to increase total steam output.
Applications
1. Dairy and Beverage Plants
Suitable for pasteurization, pre-heating for UHT (Ultra-High Temperature) sterilization, and steam heating for CIP (Clean-in-Place) systems. A steam flow rate of 100 kg/h meets the requirements of medium-sized milk processing lines.
2. Rubber Vulcanization
It supplies 150°C saturated steam to vulcanizing machines. A high-capacity compressor and defrosting system ensure reliable operation, even in humid factory environments.
3. Timber Drying Kilns
Ideal for preheating and processing wood veneers or lumber. Compared to electric heating, the unit's continuous output helps shorten drying times.
Specifications
| Stacked air source high-temperature steam heat pump(150℃ steam) | ||||||
| Model | FKH-18II/TGW | FKH-45II/TGW | FKH-651I/TGW | FKH-90Il/TGW | FKH-130II/TGW | FKH-250Il/TGW |
| Generate steam quantity | 30kg | 80kg | 100kg | 160kg | 200kg | 360kg |
| Power Specifications | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz | 380V 3N~50Hz |
| A1 heating capacity(20℃) | 20KW | 45KW | 65KW | 90KW | 130KW | 250KW |
| A1 Heating consumption power |
12KW | 28KW | 40.5KW | 56KW | 81KW | 165KW |
| Maximum operating current | 30A | 70A | 120A | 150A | 200A | 400A |
| Noise | ≤72dB(A) | ≤72dB(A) | ≤75dB(A) | ≤80dB(A) | ≤80dB(A) | ≤86dB(A) |
| Unit size(length x width x height mm) |
1600×780×2000 | 2100×780×2000 | 3260×1030×2400 | 3260×1230×2400 | 3260×1230×2400 | 4000×2260×2600 |
| Steam connection size | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 |
| Size of water replenishment connection pipe |
DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |
| Unit weight(kg) | 240 | 580 | 1180 | 1430 | 2100 | 5000 |
| Price( usd) | 6176 | 12500 | 16470 | 22058 | 30882 | 63235 |
Need Further Assistance
Leomon offers high-quality ODM and OEM services, providing solutions customized to your specific needs. Contact us today to learn more.
|
|
