It is A multifunctional swimming pool dehumidification heat pump includes a dehumidification and swimming pool air heating circuit, a dehumidification and swimming pool water heating circuit, and a swimming pool air cooling circuit. The beneficial effect of the utility model is that the mechanical cooling method is adopted to realize the cooling and dehumidification of the swimming pool air, and the heat obtained from the dehumidification can be used to heat the dehumidified air or swimming pool water to realize the effective use of energy; in addition, according to the indoor swimming pool air and outdoor The comparison of air thermal characteristics will activate the smart fresh air function in real time to ensure indoor air quality and save energy consumption.
The purpose of the new model is to provide a test device for the performance of an air-energy heat pump unit. The technical scheme of the utility model is: a water-air heater, a first circulating pump, a water supply tank, a ground source side water tank, a second circulating pump, a throttle valve, a third circulating pump, a second electromagnetic flowmeter, and load side water Composition of tank and temperature sensor. The ground source side water outlet pipe of the test unit is connected to the ground source side water inlet of the unit to be tested, the ground source side water inlet pipe is connected to the ground source side water outlet of the unit to be tested, and the load side water outlet pipe is connected to the load side of the unit to be tested. Connect the water inlet, and connect the load-side water inlet pipe with the load-side water outlet of the unit to be tested; connect the power supply of the unit to be tested with the control system of the test device. The device is to overcome the disadvantages of high cost, large space occupation, and large energy loss in the prior art enthalpy difference laboratory, and provides a small space, energy-saving, and cost-saving air-energy heat pump unit performance test device

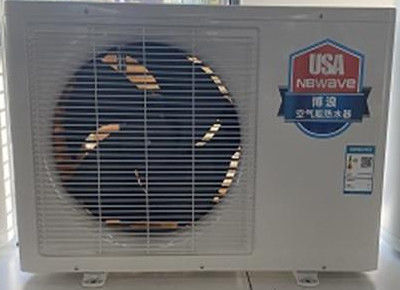

| Constant temperature swimming pool heat pump | ||||
| Spec. | KRY-8II | KRY-12II | KRY-24II | KRY-48II |
| Rated heating capacity(A24/26oC) | 8kw | 12kw | 24kw | 48kw |
| Rated power(kW) | 1.56 | 2.35 | 4.7 | 9.3 |
| COP | 5.1 | 5.1 | 5.1 | 5.16 |
| Rated heating capacityA20/26oC | 7.5kw | 11kw | 21kw | 44 kw |
| Rated power(kW) | 1..5 | 2.3 | 4.5 | 8.6 |
| COP | 5 | 4.78 | 4.66 | 5.11 |
| Cooling Capacity(kW) | 3.8 | 5.7 | 11.3 | 23.7 |
| Consumed Power(kW) | 1.67 | 2.5 | 4.9 | 9.1 |
| EER | 2.3 | 2.3 | 2.3 | 2.6 |
| Rated voltage(Hz) | 220V 50HZ | 220V 50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
| Maximum input power(kW) | 2 | 3 | 6 | 12 |
| Maximum current(A) | 8 | 12 | 24 | 42 |
| Water flownWh | 2.3 | 3.5 | 7 | 13 |
| noise dB(A) | <50 | <50 | <65 | <68 |
| Anti-shock level | I | I | I | I |
| waterproof level | IPV4 | IPV4 | IPV4 | IPV4 |
| Unit size (mm) | 910x350x835 | 1030x410x865 | 780x820x1700 | 1550x780x1700 |
| Unit Weight(kg) | 65 | 95 | 260 | 380 |
| Constant temperature swimming pool heat pump | |||
| Spec. | KRY-96II | KRY-145II | KRY-220II |
| Rated heating capacity(A24/26oC) | 96kw | 145kw | 220kw |
| Rated power(kW) | 18.5 | 23.6 | 42.5 |
| COP | 5.41 | 6.14 | 5.17 |
| Rated heating capacityA20/26oC | 90kw | 138kw | 208kw |
| Rated power(kW) | 17.5 | 24.1 | 41.5 |
| COP | 5.14 | 5.73 | 5 |
| Cooling Capacity(kW) | 40 | 58.1 | 98 |
| Consumed Power(kW) | 18.2 | 24.2 | 39 |
| EER | 2.2 | 2.4 | 2.5 |
| Rated voltage(Hz) | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
| Maximum input power(kW) | 24 | 36.5 | 61 |
| Maximum current(A) | 80 | 90 | 130 |
| Water flownWh | 32 | 41 | 62 |
| noise dB(A) | <69 | <71 | <73 |
| Anti-shock level | I | I | I |
| waterproof level | IPV4 | IPV4 | IPV4 |
| Unit size (mm) | 1550x1550x1700 | 2360x1550x1840 | 2206x2020x2170 |
| Unit Weight(kg) | 760 | 2100 | 4005 |
FAQ:
Q:Why choose air to source heat pump?
A:1.It can get 4-5 times more heat than the traditional water heater. Therefore,the heating efficiency is higher.
2.Heating with air heat source is safer than electric heating.
3.Even when it is snowing in winter, you can enjoy the 24-hour hot water service provided by the air energy water heater at any time. 4.The heat pump product has no fuel emissions,can be controled by Wifi.
Q:What service do you offer?
A:.We offer OEM/ODM or our brand, strong technical team, decades experience, leader member for editting the heat pumps standard
Q:What is needed to buy a heat pumps?
A:Please tell the application of heat pumps, sizes need to be heated, then we will match accordingly
