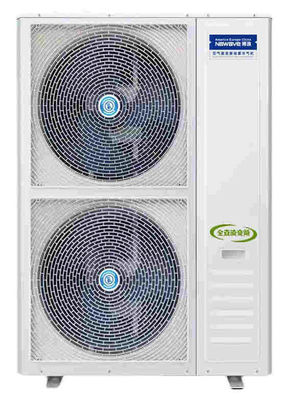

Residential Swimming Pool Heat Pump COP 5.14 Household Heat Pump 1PH
Residential Swimming Pool Heat Pump COP 5.14 Household Heat Pump 1PH
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CB, CE, EMC, RoHS
Model Number: KRY-24II
High Light:

Residential 1PH Air Source Heat Pump


COP 5.14 Household Heat Pump


50HZ Household Heat Pump

Payment & Shipping Terms
Packaging Details: export package Woonden case or plastic film
Delivery Time: 1-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50,000pcs/year
Type: Air Source Heat Pump
Power Supply: 220V/1PH/50HZ,380V/3P/50HZ & Others,220V/50HZ,50/ 60Hz,380V/ 220V
Use: Swimming Pool Heater,residential Pool,school, Department Etc.,Bathroom/swim Pool/commercial,hotel
Refrigerant: R410A, R407C/R410A, R22/R407C, R143a, R407c
Brand: LN Or OEM
Function: Pool Heating,Spa Water Heating And Cooling,Chill/Heat Pool Water,Hot Water & Cold Water,heating Or Cooling Water
Heat Exchanger: Titanium Heat Exchanger,Titanium In PPR
Product Description

The swimming pool heat pump is a high-tech in the field of thermal energy applications in the world. It is a device that uses electrical energy to drive heat to transfer heat from a low-temperature heat source to a high-temperature heat source. According to the principle of inverse Carnot cycle, using very little electric energy to drive, the heat source of air above minus 15 degrees in the air is transferred to the air generator through the endothermic working medium, and the heat generated by the gasification of the refrigerant in the air exchanger is released by heating. Into the water, causing the water temperature to rise. The swimming pool heat pump is a new type of high-efficiency energy-saving constant-temperature heating equipment. Its working principle is similar to that of an air conditioner. It uses a small amount of electric energy to drive the compressor according to the principle of reverse Carnot cycle. The high-pressure liquid working medium passes through the expansion valve and then enters the evaporator. The internal evaporation becomes a gaseous state and absorbs a large amount of heat energy in the air. The gaseous working fluid is compressed by the compressor into a high-temperature, high-pressure liquid state, and then enters the condenser to release heat to heat the water. Such continuous heating cycle can heat the water to 50°C-65°C. During the operation, one part of energy is consumed (750 watts per horse, which is only equivalent to the electricity consumption of a household electric rice cooker), and four parts of energy (heat) are absorbed and transferred from the ambient air to the water Compared with electric water heaters, it saves three-quarters of electricity.


Automatic control of pool water and air temperature
A complete swimming pool constant temperature dehumidification system uses a microcomputer controller, which can automatically determine and maintain a comfortable environment. Its built-in sensor can monitor the temperature and humidity of the swimming pool air, and quickly adjust the air supply status through the microcomputer controller to meet the settings. The comfort point, even when using loads at the height of the pool.
The swimming pool constant temperature dehumidification unit also continuously monitors the temperature of the pool water and heats the pool water when needed. In order to avoid the formation of condensate on the walls and windows, the swimming pool constant temperature dehumidification unit automatically adjusts the air humidity and temperature to meet the changes in the temperature of the cold surfaces on the walls and windows.
When the seasonal weather conditions change, the swimming pool constant temperature dehumidification unit can therefore change its operating mode. Throughout the year, the pool constant temperature dehumidification unit always considers efficiency and automatically selects the lowest energy consumption for air and pool water heating.
Reduce corrosion of buildings in humid air
Effective control of the air temperature and humidity of the indoor swimming pool environment can eliminate the formation of condensate on the indoor surface of the swimming pool. Condensed water containing pool chemicals can cause mold, paint peeling, rust, and steel structures and indoor metal materials will be quickly corroded. For maintenance, the installation of constant temperature dehumidification equipment for swimming pools can greatly reduce building maintenance costs by preventing damage to the building.
reduce energy consumption
Swimming pool constant temperature dehumidification unit has two important methods to reduce energy consumption noticeably: one is to recover the heat of the exhaust air and recycle it to the indoor swimming pool environment. The second is to control the indoor air condition. When the requirements are met, when the fresh air needs to be heated, reduce the fresh air volume to a minimum. Compared with the traditional heating and ventilation swimming pool system, the swimming pool constant temperature dehumidification unit embodies a huge advantage, because the traditional exhaust a large amount of indoor air and wastes energy and money. Compared with the traditional dehumidifier, it adopts appropriate Control method.
Swimming pool constant temperature dehumidification heat pump unit provides the above functions, and at the same time reduces a lot of operating costs. Therefore, swimming pool constant temperature dehumidification heat pump unit is the best swimming pool constant temperature dehumidification equipment.
Swimming pool heating series
The unit uses fluorine-free environmentally friendly refrigerants, advanced heat pump technology and patented titanium coil heat exchange technology to directly absorb low-grade heat energy in the air to heat or maintain the constant temperature of the swimming pool water. The unit is suitable for villa swimming pools, club swimming pools, and large swimming pools.
Swimming pool constant temperature dehumidification series
This is a new type of energy-saving equipment that integrates constant temperature, dehumidification and heating. It is widely used for constant temperature, heating and dehumidification of indoor swimming pools. With the characteristics of stable performance, safety and environmental protection, it is very suitable for large and medium-sized indoor swimming pool projects such as clubs, resorts and gymnasiums.
Sauna hot water machine series
This unit is specially designed for sauna hot water. The high-efficiency high-temperature titanium coil heat exchanger is used inside, which has good corrosion resistance. It is the best choice for spa, foot massage and sauna places.

Constant temperature swimming pool heat pump
Spec. KRY-96II KRY-145II KRY-220II
Rated heating capacity(A24/26oC) 96kw 145kw 220kw
Rated power(kW) 18.5 23.6 42.5
COP 5.41 6.14 5.17
Rated heating capacityA20/26oC 90kw 138kw 208kw
Rated power(kW) 17.5 24.1 41.5
COP 5.14 5.73 5
Cooling Capacity(kW) 40 58.1 98
Consumed Power(kW) 18.2 24.2 39
EER 2.2 2.4 2.5
Rated voltage(Hz) 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ
Maximum input power(kW) 24 36.5 61
Maximum current(A) 80 90 130
Water flownWh 32 41 62
noise dB(A) <69 <71 <73
Anti-shock level I I I
waterproof level IPV4 IPV4 IPV4
Unit size (mm) 1550x1550x1700 2360x1550x1840 2206x2020x2170
Unit Weight(kg) 760 2100 4005


Residential Swimming Pool Heat Pump COP 5.14 Household Heat Pump 1PH 0


Q:Why choose air to source heat pump?

A:1.It can get 4-5 times more heat than the traditional water heater. Therefore,the heating efficiency is higher.

2.Heating with air heat source is safer than electric heating.

3.Even when it is snowing in winter, you can enjoy the 24-hour hot water service provided by the air energy water heater at any time. 4.The heat pump product has no fuel emissions,can be controled by Wifi.

Q:What service do you offer?

A:.We offer OEM/ODM or our brand, strong technical team, decades experience, leader member for editting the heat pumps standard

Q:What is needed to buy a heat pumps?

A:Please tell the application of heat pumps, sizes need to be heated, then we will match accordingly
