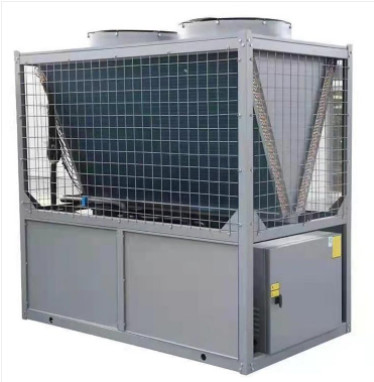

Description of 10.9 kw heating and air conditioning domestic hot water(DHW) heat pumps:
A heat pump water heater control system based on the Internet of Things is adopted. The data acquisition unit is used to collect preheating information and indoor air temperature information, and the data processing unit is used to receive preheating information and air temperature information and process them to obtain preheating. Processing information and air temperature processing information, using the data analysis unit to receive and analyze the preheating information and air temperature processing information to obtain the analysis data, and send the analysis data to the control and adjustment unit, and use the control and adjustment unit according to the first preheating information And the second preheating information respectively control the operation of the heat pump water heater in the morning and evening until the heat pump water heater’s preheating temperature reaches the preheating standard value for heat preservation treatment; all aspects disclosed in the present invention are used to solve the problems in the existing solutions The problem of automatic preheating according to the user’s work and rest time, and the problem of poor control of the preheating effect of the heat pump water heater
Application of air source heat pumps
Air Source Heat Pump Air Conditioning provide house heating and hot water,wherever need hot water, energy saving and more economical, not feel dry,it is widely use in hospital,sauna,factory,commercial centre,slaughter, swimming pools, spas, etc
Company introduction
Decades production experience, its own labotory, over 380patents, norminated supplier for buildings, leader member for ediiting air source heat pumps standard, about 80000pcs air to water heat pumps production capacity a year!
Quality control:
100% inspection for each product, 3 phrases test before delivery, free spares supply, good prize if found any unqualified items
Production line:
3 production lines to guarantee production capacity and quick delivery, 2 shifts working
| Low temperature hot water unit parameters | |
| Spec. | DKFXRS-11II/R |
| Nominal heating capacity at room temperature(kW) | 10.9 |
| Nominal heating at room temperature(kW) | 2.65 |
| Low-temperature nominal heating capacity(kW) |
4.75 |
| Low temperature nominal heating(kW) | 2.15 |
| Maximum input power(kW) | 4.2 |
| Maximum current(A) | 8 |
| Power Specifications(Hz) | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/5600g |
| noisedb(A) | <62 |
| Water resistancekPa | <55 |
| Anti-shock level | I |
| waterproof level | IPX4 |
| Caliber of inlet and outlet |
DN32 |
| Unit size (mm) | 1030x410x1390 |
| Unit Weight(kg) | 142 |
| Spec. | DKFXRS-38II/R |
| Nominal heating capacity at room temperature(kW) | 38.8 |
| Nominal heating at room temperature(kW) | 8.8 |
| Low-temperature nominal heating capacity(kW) |
17.7 |
| Low temperature nominal heating(kW) | 7.35 |
| Maximum input power(kW) | 17 |
| Maximum current(A) | 30 |
| Power Specifications(Hz) | 380V3N ~ 50 |
| Refrigerant/charge amount | R22/6700gx2 |
| noisedb(A) | <68 |
| Water resistancekPa | <100 |
| Anti-shock level | I |
| waterproof level | IPX4 |
| Caliber of inlet and outlet |
DN40 |
| Unit size (mm) | 1550x780x1700 |
| Unit Weight(kg) | 431 |
