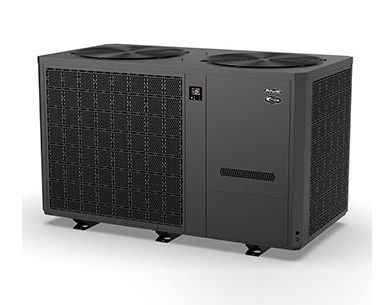

3KW Air Conditioning Heat Pump Commercial Air Source Heat Pumps R407C
Negotiable
MOQ
Negotiable
Price
3KW Air Conditioning Heat Pump Commercial Air Source Heat Pumps R407C
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: KFXRS-11I/CY
High Light:

3KW Air Conditioning Heat Pumps

,

R407C Air Conditioning Heat Pumps

,

IPX4 Air Conditioning Heat Pumps

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Specifications
Hot Water: Instant Hot Wayer
Type: Monoblock Inverter DC Air Source Heat Pumps
Refrigerant: R410A,R407C,R407C/R32/R22,R410a/ R417a/ R407c/ R22/ R134a,R410a/R407c/R22
Working Ambient Temperature: -25C To 60 C
Heating Capacity: 3-300KW
Function: Air Conditioning, Heating, Cooling, Hot Water
Product Description

Description of Forced Air Heating Commercial Air Source Heat Pumps

This kind of heat pump adopts an air energy water heater shell frame, which includes a front panel, a rear mesh cover and a side panel. The front panel and the rear mesh cover are arranged vertically relative to each other, and the upper part of the front panel and the rear mesh cover is provided with a top cover The front panel is connected to the right front side panel, and the right front side panel and the front panel are located on the same plane, the opposite surface of the top cover plate is provided with a chassis, and the chassis is placed horizontally, and The chassis is located at the lower part of the front panel and the rear mesh cover. An air outlet hood is provided on the front panel. The utility model has the advantages of relatively small volume of the shell frame of the air energy water heater, convenient transportation, convenient installation, relatively low cost, stable structure, and not easy to damage.

Application of air source heat pumps
Air Source Heat Pump Air Conditioning provide house heating and hot water,wherever need hot water, energy saving  and more economical, not feel dry,it is widely use in hospital,sauna,factory,commercial centre,slaughter, swimming pools, spas, etc


How is the effect of air energy heating compared to electric boilers?
Nowadays, many users’ homes choose to install air energy heat pumps. After all, the indoor environment can become very comfortable in winter. However, since electric boilers can also release heat, some users think that electric boilers can be used for heating in winter, so the following is Let us introduce the comparison of the effect of air energy heating compared with electric boilers.
If an electric boiler is used for heating, in fact, if the outside temperature is not too low, power saving is still more cost-effective, because the energy efficiency of the electric boiler is still possible. In the normal operation process, the electric boiler consumes low power, but if If the outside temperature is low, it is not very useful, because if the electric boiler is in a place of minus 10 degrees Celsius in winter, it will freeze and need to use electricity to defrost. This will require more electricity and the heating effect will be worse.
Different from the electric boiler, the air energy heat pump does not need to use too much heat, so it can be installed indoors, which also makes the operation effect of the air energy heat pump not affected by the outside world, and the higher the outdoor temperature, the better the operation efficiency. Energy saving. During normal heating in winter, the thermal efficiency is still higher than that of electric boilers, and the comfort during heating is better, and there is no sultry feeling in the house.

Company introduction
Decades production experience, its own labotory, over 380patents, norminated supplier for buildings, leader member for ediiting air source heat pumps standard, about 80000pcs air to water heat pumps production capacity a year!

Quality control:
100% inspection for each product, 3 phrases test before delivery, free spares supply, good prize if found any unqualified items

Production line:
3 production lines to guarantee production capacity and quick delivery, 2 shifts working

Technical paremeters of air to water heat pumps with instant hot water

Spec. KFXRS-11I/CY
Nominal heating capacity at room temperature(kW) 10.8
Nominal input power at room temperature(kW) 2.7
Rated voltage(Hz) 220V-50
Low temperature heating(kW) 8.8
Low temperature input power(kW) 2.65
Maximum input power(kW) 4.2
Maximum current(A) 23
noisedb(A) <63
Anti-shock level I
waterproof level IPX4
Caliber of outlet DN20
Unit size (mm) 1030x410x865
Unit Weight(kg) 88

Nominal heating conditions at room temperature: environmental dry bulb 20C, environmental wet bulb 15C, initial water temperature 15C, termination water temperature 5C. Low temperature heating conditions: environmental dry bulb 7C, environmental wet bulb 6'C, initial water temperature 15'C, stop water temperature 55C.


3KW Air Conditioning Heat Pump Commercial Air Source Heat Pumps R407C 0
