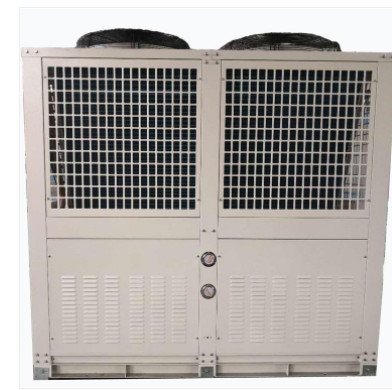

Description of Residential Air To Water Air Source Heat Pump Household Bathroom Heating And Cooling Domestic Hot Water(DHW)
Function
1.Floor Radient Heating, air conditioner
2. Cooling
3. Hot water
Feature
Heating & cooling heat pumps are a smart, efficient way to heat and cool houses or commercial buildings. they function as an air conditioner in summer and a heater in winter. In addition to its flexibility, these heat pumps are energy-efficient too. Enjoy a comfortable environment and save energy with multifunctional heat pumps.
Application
1. Apartment
2. House
3. Villa
4. Factory
5. Hotel
6. School
7. Hospital
8. Commercial building
Advantage
1. Adopted with world-famous brand(Copeland) compressor and other components.
2. Durable, reliable, quiet, and efficient.
3. Intelligent remote wifi control offers comfortable heating or cooling.
4. Fast defrost
Adopts gold-aluminum finned evaporator technology, which can effectively improve the evaporation efficiency of air and rain water under the special operating conditions of air energy. -30℃ can also be highly effective in heating.
Safety and stability Closed refrigerant system
Fluorine refrigerant system leakage points, easy to lead to frequent leakage of refrigerant, reduce equipment performance and service life. Leomon air source heat pumps water machine system adhere to the international standard of closed refrigerant design, the unit in high or low temperature conditions are with more excellent heat transfer efficiency.
OEM/ODM Service
1. Galvanized steel or 304 stainless steel cabinet is optional.
2. Grey, white, black and other color is optional.
3. Heating function, cooling function, and hot water function are optional.
4. OEM brand name is optional.
5. ODM cabinet is optional.
6. Other power supplies (110V, 60Hz) are optional.
Company introduction
Decades production experience, its own labotory, over 380patents, norminated supplier for buildings, leader member for ediiting air source heat pumps standard, about 80000pcs air to water heat pumps production capacity a year!
Quality control:
100% inspection for each product, 3 phrases test before delivery, free spares supply, good prize if found any unqualified items
Production line:
3 production lines to guarantee production capacity and quick delivery, 2 shifts working
Technical paremeters of Residential Air To Water Air Source Heat Pump Household Bathroom Heating And Cooling Domestic Hot Water(DHW)
| Spec. | KFXRS-28II/CY |
| Nominal heating capacity at room temperature(kW) | 28 |
| Nominal input power at room temperature(kW) | 6.2 |
| Rated voltage(Hz) | 380V3N-50 |
| Low temperature heating(kW) | 23 |
| Low temperature input power(kW) | 6.18 |
| Maximum input power(kW) | 8 |
| Maximum current(A) | 13 |
| noisedb(A) | <62 |
| Anti-shock level | I |
| waterproof level | IPX4 |
| Caliber of outlet | DN32 |
| Unit size (mm) | 820x780x1700 |
| Unit Weight(kg) | 260 |
Nominal heating conditions at room temperature: environmental dry bulb 20C, environmental wet bulb 15C, initial water temperature 15C, termination water temperature 5C. Low temperature heating conditions: environmental dry bulb 7C, environmental wet bulb 6'C, initial water temperature 15'C, stop water temperature 55C.
