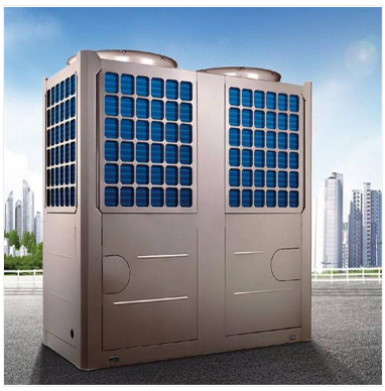

Bathroom 8KW Residential Air Source Heat Pump For Floor Heating
Negotiable
MOQ
Negotiable
Price
Bathroom 8KW Residential Air Source Heat Pump For Floor Heating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC ROHS
Model Number: KFXRS-100II
High Light:

8KW Residential Air Source Heat Pump

,

Villa DHW heat pump

,

410V Residential Air Source Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/yearCryogenic Operation/Long-Range Control /R22 R410A/Residential and Commercial Buildings Air Source Heat Pump
Specifications
Compressor: Danfoss
Performance COP (C.O.P.): 5.0
Max Pool Volume (m3 / Gal): 600 / 158400
Water Side Heat Exchanger: Shell & Tube
Operating Voltage: 220-380-410V
Function: Pool Water Heating,Cooling &floor Heating, Hot Water,pool Water Heating/cooling,House Heating Cooling Hot Water,Space Heating
Product Description

Description of 8kw Air Source Heat Pump For Residential Heating And Cooling Bathroom

Function
1.UnderFloor Radient Heating, air conditioner
2. Cooling
3. Hot water


Feature

This 8kw Air Source Heat Pump For Residential Heating And Cooling Bathroom heat pump adopts a leak-proof automatic water replenishing device of a closed central air-conditioning water system, which belongs to the field of air-conditioning assembly. Aiming at the problems of complicated installation of equipment, high cost, large floor space and easy water leakage, this solution provides a leak-proof automatic water replenishing device for closed central air conditioning water systems, including electric ball valves, pressure sensors, alarms and settings Button; Among them: the pressure sensor detects the pressure in the closed central air conditioning water system and connects with the external system; the electric ball valve, when the pressure detector detects the pressure in the closed central air conditioning water system, the pressure detection signal continuously appears, and the water leakage alarm function is activated , The electric ball valve is closed; the alarm will sound when a water leak is detected; the setting button is used to set the system; the electric ball valve and the pressure sensor are connected in sequence, and then connected to the alarm and the setting button connection. It can achieve the effect of low installation cost, small footprint and no water leakage

Water leakage alarm automatically replenish water

Leomon air source heat pumps anti-leakage alarm automatic water filling device is a national patent product, which is applied to the water system of floor heating air conditioner. It can not only solve the automatic water filling of the water system but also judge the system water leakage to reach the alarm function. Users can use APP to supplement water in real time to avoid the trouble of manual hydration.

Application
1. Apartment
2. House
3. Villa
4. Factory
5. Hotel
6. School
7. Hospital
8. Commercial building



Advantages of air energy heat pump:

1. Strong low temperature resistance and stable operation. Low-temperature air energy heat pumps can not only work in the cold winter in the north, but also work normally in weather such as typhoons, rainstorms, and hail. It can truly achieve heating 24 hours a day, 365 days a year.

2. Environmental protection, clean, high safety. Low-temperature air energy heat pumps use air energy, that is, free heat in the air for heating, without fuels such as gas, oil, or coal, and there is no open flame during heating, and no exhaust gas emissions are produced. This working principle not only eliminates the possibility of fire, explosion, poisoning and other accidents, but also reduces the emission of air pollutants and protects the atmospheric environment.

3. High degree of intelligence and simple operation. As a high-tech product, the low-temperature air energy heat pump has sufficient technological content and a very high degree of intelligence. When the user uses it, he only needs to set it up in advance, and the microcomputer control in the heat pump will control the heat pump to run automatically and accurately control the temperature. The whole heating process does not require any manual monitoring, and the operation is very simple, and the elderly and children can easily learn it. 4. Energy-saving and electricity-saving, with little impact on the grid. Because air energy is mainly used for heating, instead of electric heating like ordinary electric boilers and electric heaters, the heating efficiency of low-temperature air energy heat pumps is up to 400%, which is four times that of ordinary electric heaters. According to statistics, to heat a ton of 15-degree tap water to 55 degrees (note: 40 degrees hot water can provide heating for floor heating), using low-temperature air energy heat pumps to heat only requires 11 degrees of electricity. The use of low-temperature air energy heat pumps not only saves household electricity, but also has a small impact on the power grid, saving the country the cost of transforming the power grid.

Company introduction
Leomon supply
 most products in HVAC field, such as Rooftop Packaged Unit, Split Commercial Unit, Air Cooled Water Chiller, Water Cooled Water Chiller, Chilled Water Air Handling Unit and Fan Coil Unit etc.Decades production experience, its own labotory, over 380patents, norminated supplier for buildings, leader member for ediiting air source heat pumps standard, about 80000pcs air to water heat pumps production capacity a year!

Quality control:
100% inspection for each product, 3 phrases test before delivery, free spares supply, good prize if found any unqualified items

Production line:
3 production lines to guarantee production capacity and quick delivery, 2 shifts working

Technical paremeters of
8kw Air Source Heat Pump For Residential Heating And Cooling Bathroom

Spec. KRY-8II
Rated heating capacity(A24/26oC) 8kw
Rated power(kW) 1.56
COP 5.1
Rated heating capacityA20/26oC 7.5kw
Rated power(kW) 1..5
COP 5
Cooling Capacity(kW) 3.8
Consumed Power(kW) 1.67
EER 2.3
Rated voltage(Hz) 220V 50HZ
Maximum input power(kW) 2
Maximum current(A) 8
Water flownWh 2.3
noise dB(A) <50
Anti-shock level I
waterproof level IPV4
Unit size (mm) 910x350x835
Unit Weight(kg) 65

The nominal working conditions at room temperature are: ambient dry bulb 20°C, ambient wet bulb 15°C, initial water temperature 15°C, and ending water temperature 55.

(2; The nominal low temperature conditions are: ambient dry bulb 72, ambient wet bulb 61, initial water temperature 15°C, and ending water temperature 55℃.
