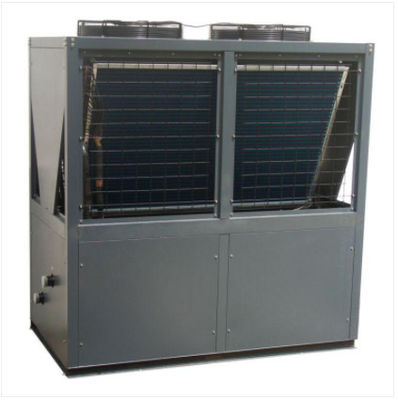

Instant Hot Water Heater Provided Air Source Exchange Heat Pump Air To Water HVAC system
An energy storage interconnected heat pump defrosting device with slow frost formation includes an energy storage interconnected heat pump body, the energy storage interconnected heat pump body is provided with a heat pump chamber inside, and the left side of the energy storage interconnected heat pump body is fixedly connected with an intake pipe, The right side of the energy storage interconnected heat pump body is fixedly connected with a water outlet, the right side of the energy storage interconnected heat pump body is fixedly connected with a water inlet, and a water storage tank is fixedly installed inside the heat pump chamber. The utility model effectively removes the frost layer inside the energy storage interconnected heat pump body, so that the hot air inside the energy storage interconnected heat pump body enters the defrosting pipe from the air inlet, and leaves the defrosting pipe through the air outlet, so that the hot air is directed to the evaporator The outer frost layer is removed to achieve the defrosting effect, thereby reducing the forming efficiency of the frost layer, and achieving the advantages of slow frost formation, which effectively solves the problem that the existing energy storage interconnected heat pump cannot effectively remove the frost layer. The use of energy storage interconnected heat pumps.
Strength of Leomon Instant Hot Water Heater Provided Air Source Exchange Heat Pump Air To Water HVAC System
Low noise:
Full DC inverter floor heating air conditioner adopts inverter compressor dedicated for heat pump, and the noise is less than 50 decibels
Wifi remote control
The full DC frequency conversion floor heating air-conditioner adopts the linkage control of the internal and external units. The main unit and the thermostat have 485 remote, which can be remotely controlled. If there is an area air conditioner and floor heating, it can be viewed and turned off remotely
HVAC system design
The full DC frequency conversion floor heating air conditioner adopts a secondary system design, using the unit circulating pump and the end circulating pump respectively. The unit circulating pump and the end circulating pump adopt self-frequency conversion control. When the use area is small, the water pump runs at low frequency, which can greatly reduce the water pump. Energy loss.
Heat recovery technology
In summer, air-source heat pump triple-supply unit can adopt heat recovery method to produce hot water for free when the air-conditioning host is cooling
Company brief introduction
Over 20 years production experience, thanks to R&D hard and smart working, company is authorized over 400 patents, products quality play a lead role in HVAC system field
Over 20% sales volume are invested on improving products research and company service imporovement, we are happy to say"We cannot promise that equipment won't break, that software won't fail, or that we will always be perfect. What we can promise is that if something goes wrong, we will rise to the occasion, take action, and help resolve the issue, and the most important is we have abilidty to solve! ."
Some technical paremeters for Instant Hot Water Heater Provided Air Source Exchange Heat Pump Air To Water HVAC System
| Spec. | KRY-24II | KRY-48II | KRY-96II |
| Rated heating capacity(A24/26oC) | 24kw | 48kw | 96kw |
| Rated power(kW) | 4.7 | 9.3 | 18.5 |
| COP | 5.1 | 5.16 | 5.41 |
| Rated heating capacityA20/26oC | 21kw | 44 kw | 90kw |
| Rated power(kW) | 4.5 | 8.6 | 17.5 |
| COP | 4.66 | 5.11 | 5.14 |
| Cooling Capacity(kW) | 11.3 | 23.7 | 40 |
| Consumed Power(kW) | 4.9 | 9.1 | 18.2 |
| EER | 2.3 | 2.6 | 2.2 |
| Rated voltage(Hz) | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
| The compressor | ZW61KA-TFP-52E(one sets ) | ZW61KA-TFP-52E(two sets ) | ZW61KA-TFP-52E(four sets ) |
| Fan Quantity | 1 | 2 | 4 |
| Fan Quantity(W) | 370×1 | 370×2 | 370×4 |
| Fan speed(rpm) | 850 | 850 | 850 |
| Maximum input power(kW) | 6 | 12 | 24 |
| Maximum current(A) | 24 | 42 | 80 |
| Water flownWh | 7 | 13 | 32 |
| noise dB(A) | <65 | <68 | <69 |
| Anti-shock level | I | I | I |
| waterproof level | IPV4 | IPV4 | IPV4 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 1550x1550x1700 |
| Unit Weight(kg) | 260 | 380 | 760 |
| Rated heating conditions: outdoor dry/wet bulb temperature is 24°C/19°C, hot water inlet temperature is 26°C, outlet water temperature is 28°C; | |||
| Rated heating conditions: outdoor dry/wet bulb temperature is 20°C/15°C, hot water inlet temperature is 26°C, outlet water is 28°C; | |||
| Rated Cooling conditions: outdoor dry/wet bulb temperature is 35°C, COOL water inlet temperature is 30°C, outlet water is 28°C. | |||
Compressor Info
| Model | Refrigerant | Heating (kw) |
Input power (KW) |
Current (A) |
Large running current (A) |
Weight (kg) |
| ZW61KA-TFP-52E | R22 | 21.86 | 3.12 | 9.6 | 14.4 | 30 |
