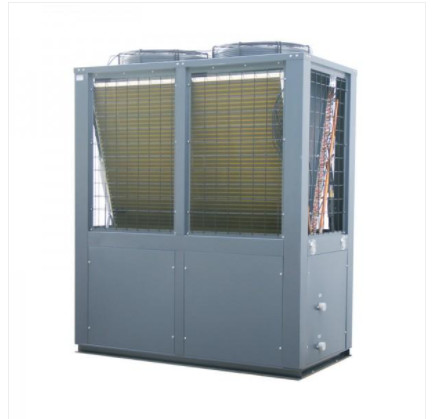

Gavanized Steel Housing Air Source Heating And Cooling Heat Pump Water Heater
Negotiable
MOQ
Negotiable
Price
Gavanized Steel Housing Air Source Heating And Cooling Heat Pump Water Heater
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-9I/CY
High Light:

EER 2.3 Heat Pump Water Heater

,

500L Heating And Cooling Heat Pump

,

5.1 COP Heating And Cooling Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Specifications
Housing Material: Gavanized Steel Or Stainless Steel
Compressor Type: Scroll
HVAC System: Air Energy Heat Pumps Unit
Defrosting: Fast Automatic Defrosting
Installtion: Freestanding, Flexible Install
Water Tank: 1-500 L, Free To Wash Whole Lifespan
Product Description

Heat Pump Water Heater Hot Water System Air Source Heat Pumps Inverter Air to Water Heat Pump,is operating steadily under -30~45℃ ambient temperature,for cold regions Heating in Winter ,Cooling in Summer, and with 5 optional functions: Domestic hot water,Heating Cooling, Heating&Hot Water,Cooling&Hot Water.

The heat pump type double-effect negative pressure solid-liquid separation unit system belongs to the technical field of solid-liquid separation unit structure. It includes a heating chamber with a feed inlet and a discharge port. A heat pump condenser for full contact with the solid-liquid mixture is installed in the heating chamber. The heat pump condenser is connected to the heat pump through a circulating pipeline, and the heat pump is also connected to a moisture condensation chamber. The moisture condensing chamber is connected with a vacuum pump system for vacuuming. The heat pump is also connected with two first heat pump evaporators and second heat pump evaporators for absorbing heat energy in the moisture condensing chamber and the air. The first heat pump evaporator is sealed and installed in In the moisture condensation chamber, one port of the heating chamber is connected to the moisture evaporation chamber through a circulating pump, and the other port is connected to the moisture evaporation chamber through a circulating pipeline. The utility model has reasonable structural design, high efficiency, environmental protection and no emission, good solid-liquid separation effect, and can effectively save energy.

Applicable places: places such as factory dormitories, hotels, schools, hospitals, apartments, beauty salons, villas, swimming pool constant temperature, breeding constant temperature, high temperature hot water of electroplating factory, high temperature hot water of slaughterhouse, etc.
Advantages: Compared with traditional water heaters, it is energy-saving and environmentally friendly, safe and reliable, and is not limited by the installation site.
Features: Fully automatic control, small footprint
Strength of Leomon Heat Pump Water Heater Hot Water System Air Source Heat Pumps
Air energy heat pumps are different from traditional hot water machines. Air energy heat pumps are the fourth generation of new energy heating products, which achieve energy-saving and safe heating effects through the extensive use of free air energy.
The air-energy heat pump heating mode is also different from the traditional method. It is no longer completely dependent on a single energy source, and uses a new type of clean energy-air energy. The air energy unit converts low-temperature air into high-temperature and high-pressure heat through multiple processes such as compressor unit, evaporator, and heat exchange, and transfers it to the water tank to heat the cold water.
80% of the energy of the air heat pump is air, and the remaining electric energy is used to drive the operation of the unit. The air heat pump converts free air into energy, which saves 75% of the air heat pump unit compared with the traditional motor unit. Heating cost. The air energy heat pump uses a large amount of air energy, and only a quarter of the electric energy is enough to produce more high-temperature hot water, which will greatly extend the time that users use hot water and increase the water output of the air energy heat pump. .
The air energy heat pump does not use fuel for heating. There are only two types of energy sources: air and electricity. In terms of heating, explosion accidents and poisoning accidents are avoided. The heating activity in the water tank does not involve power supply, so the heat pump The unit can prevent electric shock safety hazards and create a safe hot water space for users.
Some technical paremeters for Instant Hot Water Heater Provided Air Source Exchange Heat Pump Air To Water HVAC System

Spec. KRY-24II KRY-48II KRY-96II
Rated heating capacity(A24/26oC) 24kw 48kw 96kw
Rated power(kW) 4.7 9.3 18.5
COP 5.1 5.16 5.41
Rated heating capacityA20/26oC 21kw 44 kw 90kw
Rated power(kW) 4.5 8.6 17.5
COP 4.66 5.11 5.14
Cooling Capacity(kW) 11.3 23.7 40
Consumed Power(kW) 4.9 9.1 18.2
EER 2.3 2.6 2.2
Rated voltage(Hz) 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ
The compressor ZW61KA-TFP-52E(one sets ) ZW61KA-TFP-52E(two sets ) ZW61KA-TFP-52E(four sets )
Fan Quantity 1 2 4
Fan Quantity(W) 370×1 370×2 370×4
Fan speed(rpm) 850 850 850
Maximum input power(kW) 6 12 24
Maximum current(A) 24 42 80
Water flownWh 7 13 32
noise dB(A) <65 <68 <69
Anti-shock level I I I
waterproof level IPV4 IPV4 IPV4
Unit size (mm) 780x820x1700 1550x780x1700 1550x1550x1700
Unit Weight(kg) 260 380 760
Rated heating conditions: outdoor dry/wet bulb temperature is 24°C/19°C, hot water inlet temperature is 26°C, outlet water temperature is 28°C;
Rated heating conditions: outdoor dry/wet bulb temperature is 20°C/15°C, hot water inlet temperature is 26°C, outlet water is 28°C;
Rated Cooling conditions: outdoor dry/wet bulb temperature is 35°C, COOL water inlet temperature is 30°C, outlet water is 28°C.



Compressor Info

Model Refrigerant Heating
(
kw)
Input power
(
KW)
Current
(
A)
Large running current
(
A)
Weight
(
kg)
ZW61KA-TFP-52E R22 21.86 3.12 9.6 14.4 30
