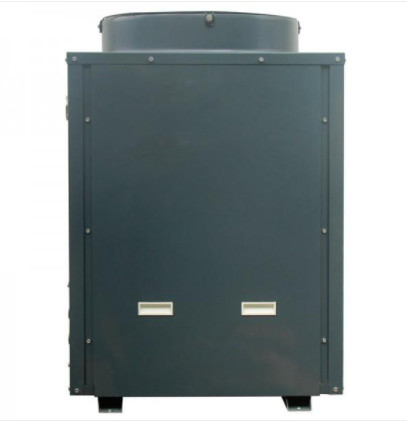

Low Noise Low Temperature Meeting Heat Pumps, Monoblock Heat Pump, Inverter Air To Water Heat Pump
This hybrid heat pump system includes air source heat pump water heaters, solar water heaters and fan coils, between air source heat pump water heaters and solar water heaters, between air source heat pump water heaters and fan coils, and between solar water heaters and fan coils. Through the pipeline and the shut-off valve set on the pipeline connection, the winter solar water heater and the air source heat pump water heater can work together to provide residents with hot water for heating and kitchen and bathing. In summer, the solar water heater provides residents with the kitchen and bathing. For hot water, the air source heat pump water heater provides a cooling mode, which reduces the residents' configuration of the water heater, reduces costs, and saves energy.
Low Noise Low Temperature Meeting Heat Pumps, Monoblock Heat Pump, Inverter Air To Water Heat Pump
A solar heat pump hot water system and control method capable of automatically adjusting the filling amount of working fluid. It includes a heat pump unit, a solar energy unit, a circulating water unit, and a control unit; the heat pump unit includes a compressor, a condenser, an electronic expansion valve, an evaporator, a heat pump accumulator, an electromagnetic three-way valve, and an electromagnetic valve; the solar energy unit Including solar collectors, solar accumulators, and working fluid pumps; circulating water units including water tanks, water pumps, and hot water storage tanks; control units including microcomputers, temperature sensors, pressure sensors, and liquid level sensors. When using solar energy units and heat pump units to produce hot water, the present invention can make full use of heat and solar energy in the air; through the control of electromagnetic three-way valves, electromagnetic valves, compressors and other components, the liquid The working fluid is maintained at a certain amount, so as to ensure that the solar unit and heat pump unit can maintain the best working fluid charge during the working process
Technical paremeters for Low Noise Low Temperature Meeting Heat Pumps, Monoblock Heat Pump, Inverter Air To Water Heat Pump
| Spec. | KRY-24II |
| Rated heating capacity(A24/26oC) | 24kw |
| Rated power(kW) | 4.7 |
| COP | 5.1 |
| Rated heating capacityA20/26oC | 21kw |
| Rated power(kW) | 4.5 |
| COP | 4.66 |
| Cooling Capacity(kW) | 11.3 |
| Consumed Power(kW) | 4.9 |
| EER | 2.3 |
| Rated voltage(Hz) | 380V 3N-50HZ |
| Maximum input power(kW) | 6 |
| Maximum current(A) | 24 |
| Water flownWh | 7 |
| noise dB(A) | <65 |
| Anti-shock level | I |
| waterproof level | IPV4 |
| Unit size (mm) | 780x820x1700 |
| Unit Weight(kg) | 260 |
