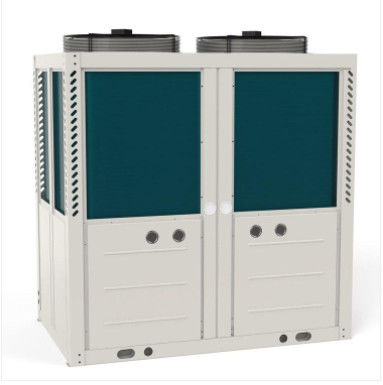

This 6 P Heating Cooling Frequency Conversion Dual-Supply Unit Air Source Heat Pump Water Chiller meet the needs of home heating and cooling, the terminal can be connected to radiators, floor heating, fan coils, etc. The installation is simple and convenient, creating a refreshing and comfortable living environment in summer and warm spring in winter, allowing you to have a warm and comfortable home .
Warm in winter and cool in summer, all seasons like spring, comfortable experience, not noisy at all. Traditional large flat-floor houses need to install high-power equipment for floor heating and air-conditioning, and all need to apply for capacity expansion. Bilai's household air source heat pump products can meet the needs of residents' lives with 220V voltage, without additional capacity, making it more convenient to use.
Some paremters
Item | KFXRS-7I | KFXRS-11I | KFXRS-11II | KFXRS-19I |
Nominal heating capacity at room temperature(kW) | 7.2 | 10.8 | 10.8 | 19 |
Nominal input power at room temperature(kW) |
1.63 | 2.7 | 2.7 | 4.19 |
Rated voltage(Hz) | 220V-50 | 220V-50 | 380V3N-50 | 220V-50 |
Low temperature nominal heatingWkW) |
5.9 | 8.8 | 8.8 | 15.5 |
Low temperature nominal input power(kW) |
1.62 | 2.65 | 2.65 | 4.18 |
Maximum input power(kW) | 2.5 | 4.2 | 4.2 | 8 |
Maximum current(A) | 11.5 | 23 | 8 | 32 |
noisedb(A) | <51 | <63 | <63 | <66 |
Anti-shock level | I | I | I | I |
waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
Caliber of inlet and outlet | DN20 | DN20 | DN20 | DN32 |
Unit size (mm) | 1010x350x835 | 1030x410x865 | 1030x410x865 | 1030x410x1390 |
Unit Weight kg) | 72 | 88 | 88 | 126 |
