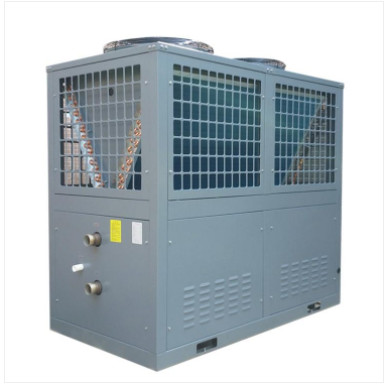

This 18 P Air Energy Triple Supply Unit T Air Source Heat Pump Water Chiller Heating Cooling Domestic Hot Water(DHW) meet the needs of home heating and cooling as well as domestic house hot water, the terminal can be connected to radiators, floor heating, fan coils, etc. The installation is simple and convenient, creating a refreshing and comfortable living environment in summer and warm spring in winter, allowing you to have a warm and comfortable home .
Application: bath center, health club, hotel, guesthouse
Product 18 P Air Energy Triple Supply Unit T Air Source Heat Pump Water Chiller Heating Cooling Domestic Hot Water(DHW) introduction: Module intelligent centralized controller, automatic monitoring unit, users more worry; Integrated design of air conditioning and hot water for air source triple supply unit, easy to install and reduce cost; Multi-system design, more cost saving when users use; Efficient scroll compressor, good stability, COP up to 6.5, longer unit life; Unit can be freely combined, save investment; Users can choose different working modes in different seasons to make the unit more energy saving. The operation of the unit is pollution-free.
Leomon air source heat pump Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 12 invention patents, more than 50 other patents, and participated in the preparation of 25 national standards.
Some paremters of 18 P Air Energy Triple Supply Unit T Air Source Heat Pump Water Chiller Heating Cooling Domestic Hot Water(DHW)
| Item | KFXRS-7I | KFXRS-11I | KFXRS-11II | KFXRS-19I |
| Nominal heating capacity at room temperature(kW) | 7.2 | 10.8 | 10.8 | 19 |
| Nominal input power at room temperature(kW) |
1.63 | 2.7 | 2.7 | 4.19 |
| Rated voltage(Hz) | 220V-50 | 220V-50 | 380V3N-50 | 220V-50 |
| Low temperature nominal heatingWkW) |
5.9 | 8.8 | 8.8 | 15.5 |
| Low temperature nominal input power(kW) |
1.62 | 2.65 | 2.65 | 4.18 |
| Maximum input power(kW) | 2.5 | 4.2 | 4.2 | 8 |
| Maximum current(A) | 11.5 | 23 | 8 | 32 |
| noisedb(A) | <51 | <63 | <63 | <66 |
| Anti-shock level | I | I | I | I |
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of inlet and outlet | DN20 | DN20 | DN20 | DN32 |
| Unit size (mm) | 1010x350x835 | 1030x410x865 | 1030x410x865 | 1030x410x1390 |
| Unit Weight kg) | 72 | 88 | 88 | 126 |
