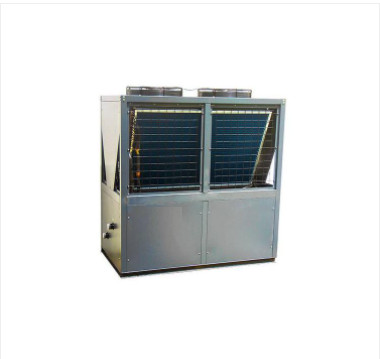

60P Air Source Heat Pump Hot Water Heater For Restaurant
60P Air Source Heat Pump Hot Water Heater For Restaurant
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: KCHR-15II/BP (Out of the wind)
High Light:

60P Heat Pump Hot Water Heater


3.5kw Restaurant Heat Pump


R22 Heat Pump Hot Water Heater

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Type: Air Source Heat Pump,All In One Hot Water Heat Pump,air To Water Heat Pump(for House Heating Cooling And Hot Water)
Compressor Type: Scroll,Semi-enclosed Twin-screw Compressor
Refrigerant: R410a,R134a,R407C/R410A,R22/R407C,R407C
Heating Capacity: 750/800 W,3 KW,3.5kw,17kw,5100w, 1-60P
Heating Type: Circulating Heat
Work Environment:: Low-temperature Heat Pump
Product Description

Latest Technology Air to Water Air Source Heat Pump Water Heater heating and cooling for Hotel and Restaurant
ir source heat pump technology has been widely used all over the world due to its high efficiency and energy saving benefits and excellent working performance. The ultra-low temperature air source heat pump unit adopts the international advanced jet enthalpy increase technology to achieve the effect of "quasi-two-stage compression", which is highly efficient and energy-saving. High-efficiency heating and stable operation at ultra-low temperature, the highest outlet water temperature can reach 60 ℃, it is the model of coal-to-electricity projects in the northern region. The ultra-low temperature air source heat pump unit for coal-to-electricity conversion is efficient and stable. It is widely used in the comfortable central air-conditioning system of public facilities such as hotels, shopping malls, office buildings, exhibition halls, airports, gymnasiums, etc., and can meet the needs of electronics, pharmaceuticals, biological, light Different use requirements of technological air-conditioning systems in textile, chemical, metallurgical, pharmaceutical, electric power, machinery and other industries.
2. Product features
1. Strong heating. The ultra-low temperature air source heat pump unit can easily heat at -25°C. In severe cold conditions, the heating capacity is increased by more than 20%, and the COP is increased by more than 10%. The outlet water temperature of the unit under heating conditions can reach 60℃, which can fully meet the various heating methods at the load end. The traditional heating method has been completely innovated, and the heating problem in North China and East China has been effectively improved.
The unit adopts the air supplement and enthalpy compressor, which can realize quasi-two-stage compression, which not only ensures the ultra-low temperature operation of the unit, but also greatly improves the heating capacity of the unit and reaches the energy-saving standard.
2. Intelligent defrosting. The unit adopts intelligent defrosting technology, according to the temperature change rate of the surface cooler, and at the same time considering the change of the external environment temperature, it automatically corrects the conditions for entering the defrost. It truly realizes "rapid defrost and thorough defrost" to ensure normal heating operation.
3. Centralized building control
(1) The controller and electrical components adopt the international advanced well-known brand wide temperature configuration;
(2) The microcomputer controller can operate stably and reliably at an ambient temperature of -25°C to 65°C;
(3) The microcomputer control system dynamically monitors the operation of each unit, and can optionally be equipped with RS485/RS-232 standard connection communication interface, built-in Modbus communication protocol, realize network group control, and ensure that the unit is in a better state of operation.
4. The system structure is stable and reliable  Latest Technology Air to Water Air Source Heat Pump Water Heater heating and cooling for Hotel and Restaurant
(1) Adopting the international advanced EVI high-efficiency scroll compressor, ultra-wide operating range, ultra-long operating life, to ensure long-term stable operation of the unit. The high-efficiency finned heat exchanger adopts high-efficiency internally threaded copper tubes and sine wave-shaped aluminum fins. The air distribution is evenly distributed, the air resistance is small, and the heat exchange efficiency is high.
(2) The uniquely designed shell and tube heat exchanger has high heat exchange efficiency, low water quality requirements, and is easy to clean.
(3) The ultra-optimized pipeline structure adopts a "V" surface cooler layout designed according to a better grace gradient, and a heat pipe loop is preset at the bottom of the heat exchanger to suppress ice by supercooling to ensure more thorough defrosting.
(4) High-strength frame structure with good stability. The panel is made of high-quality galvanized steel plate, sprayed with epoxy resin to prevent rust, beautiful appearance, and strong anti-corrosion performance.
(5) The heating of the unit is more diversified, and the load end can be radiators, fan coils, floor heating, etc.
5. Diversified heating methods
The diversified heating modes of the unit meet the requirements of different users:
(1) Applicable to renovation projects in old urban areas. Such as: teacher radiator renovation project that needs high temperature water.
(2) Applicable to the new city heating project. Such as: household floor heating (floor heating).
(3) Suitable for modern central air-conditioning system engineering. Such as: water + fan-coil central air-conditioning system, all-air central air-conditioning system

Rated heating capacity(A24/26oC)24kw
Rated power(kW)4.7
Rated heating capacityA20/26oC21kw
Rated power(kW)4.5
Cooling Capacity(kW)11.3
Consumed Power(kW)4.9
Rated voltage(Hz)380V 3N-50HZ
Maximum input power(kW)6
Maximum current(A)24
Water flownWh7
noise dB(A)<65
Anti-shock levelI
waterproof levelIPV4
Unit size (mm)780x820x1700
Unit Weight(kg)260

60P Air Source Heat Pump Hot Water Heater For Restaurant 0
