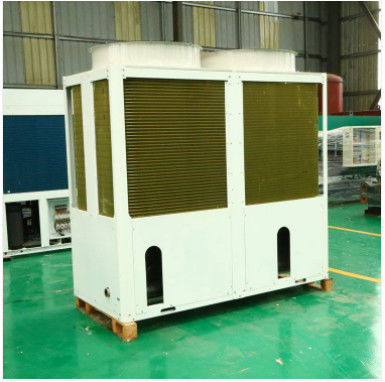

Features of DC Inverter Heat Pump Air Source Water Heater with house heating and cooling system

Air energy water heater, also called "air source heat pump water heater". Heating, the high temperature heat energy after compression gradually heats the water temperature.
The air source heat pump water heater, as its name implies, transfers the heat in the air to the water through the refrigerant. Traditional electric water heaters and gas water heaters obtain heat energy by consuming gas and electricity, while air energy water heaters heat water by absorbing heat in the air. The purpose is to absorb heat energy equivalent to about three times the electrical energy to heat water while consuming the same electrical energy.

Gold - aluminum condensation process rapid frost

Adopts American gold-aluminum finned evaporator technology and unique precious metal coating, which can effectively improve the evaporation efficiency of air and rain water according to the operation condition of air energy in special environment. -25℃ can also be highly effective for heating.

SCL heat exchange technology high efficiency heating

SCL technology has high heat transfer efficiency. Adopts precious metal coating to prevent scaling and withstand pressure up to 30KG. Specially used in air energy products, it is an alternative product for stainless steel plate and tube type heat exchanger.

 DC Inverter Heat Pump Air Source Water Heater With House Heating And Cooling System

Closed refrigerant system, safe and stable

Fluorine refrigerant system leakage points, easy to lead to frequent leakage of refrigerant, reduce equipment performance and service life. Leomon heat pumps water machine system adhere to the international standard of closed refrigerant design, the unit in high or low temperature conditions also has excellent heat transfer efficiency.

Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 120 invention patents, more than 350 other patents, and participated in the preparation of 25 national standards.

Our strong and professional technical and marketing team ready to make best service!

• Technical paremeters for Air Source Heat Pump Water Heater Inverter 2020 OEM Heat Pumps HVAC System Hot Water Solution

• Item KCHR-13I/BP Side wind) Rated voltage 220V~50Hz Cooling and heating Nominal cooling capacity 13kW(3kW-15kW) Nominal cooling power consumption 4.6KW Nominal cooling(COP) 2.82 IPLV 4.13 Nominal heating capacity 14kW(3.5kW-16kW) Nominal heating power consumption 4.5KW Heating Nominal heating capacity 10.5KW Nominal heating power consumption 2.65KW Nominal heating(COP) 3.96 Maximum operating current 33A Maximum power consumption 6.6KW Rated water flow 2.24m²/h Refrigerant/charge volume R410A/4000g noise ≤56dB(A) Water resistance ≤15kPa Maximum working pressure on low pressure/high pressure side 4.5Mpa/0.15Mpa Allowable working pressure on suction/exhaust side 4.5Mpa/0.15Mpa Anti-shock level I waterproof level IPX4 Unit size (l× w × h) 1030×410×1390(mm) (Cold and warm) Caliber of inlet and outlet DN32 (Hot water) Caliber DN25 Application area 100㎡

• Nominal refrigeration conditions: ambient dry bulb 35℃, outlet temperature 7℃. Nominal heating conditions: ambient dry bulb 7℃, ambient wet bulb 6℃,outlet temperature 45℃
• Nominal hot water production conditions: ambient dry bulb 20℃, ambient wet bulb 15℃, initial water temperature 15℃, end water temperature 55℃.
•
•
