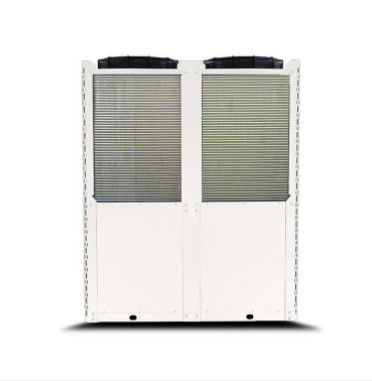

Household Air Source Screw Type DHW Heat Pump 415V IPV4
Negotiable
MOQ
Negotiable
Price
Household Air Source Screw Type DHW Heat Pump 415V IPV4
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-9I/CY
High Light:

Household DHW Heat Pump 415V

,

Villa DHW Heat Pump IPV4

,

R410A Villa DHW Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000pcs/year
Specifications
Heat Source Type: Air Source Heat Pump
Application: Appartment, House, Villa, School, Factory, Hotel
Function: Air Conditioning, Heating, Cooling, Hot Water
Working Medium:: R410A
Power Supply: 380~415V/50Hz
Circulating HeatApplication: Villa Family, Sauna And Swimming Pool, Hotels, Factory Hospital, Studen: Circulating Heat
Product Description

Features of High Industrial Screw Type Air Cool Air Source Heat Pump China

20 years of professional heat pump system technology excellence

We give full play to the advantages of scientific and technical personnel, and constantly overcome the technical bottlenecks in the field of air energy water heater. We have obtained 12 invention patents, more than 50 other patents, and participated in the preparation of 25 national standards.



Gold - aluminum condensation process rapid frost

Adopts American gold-aluminum finned evaporator technology and unique precious metal coating, which can effectively improve the evaporation efficiency of air and rain water according to the operation condition of air energy in special environment. -25℃ can also be highly effective for heating.



SCL heat exchange technology high efficiency heating

SCL technology has high heat transfer efficiency. Adopts precious metal coating to prevent scaling and withstand pressure up to 30KG. Specially used in air energy products, it is an alternative product for stainless steel plate and tube type heat exchanger.



Closed refrigerant system, safe and stable

Fluorine refrigerant system leakage points, easy to lead to frequent leakage of refrigerant, reduce equipment performance and service life. Leomon heat pumps water machine system adhere to the international standard of closed refrigerant design, the unit in high or low temperature conditions also has excellent heat transfer efficiency.



The kinetic energy of subdivision, the water tank is free of washing for life

Leomon heat pumps air domestic water tank can be heated in three chambers, dynamic water circulation, to prevent muddy water, scale, the water tank life free washing, to ensure that the household hot water clean, healthy; At the same time, the subdivision heating technology can ensure that the hot water output reaches 100%, and the hot water output of 150L is equivalent to that of 200L of similar products.



Three point temperature control, real-time detection of water temperature

Leomon heat pumps air domestic water tank adopts three-point temperature control technology, which can detect the water temperature in real time to ensure that hot water is available immediately.



Integrated process of floor heating and air conditioning reduces installation faults

In the strategic deployment of "integration of host parts" for Leomon heat pumps floor heating air conditioners and ultra-low temperature heating machines, Leomon heat pumps hydraulic balancer and floor heating air conditioners integrator have been released to reduce the installation threshold and installation faults, save installation time, and improve the quality of the whole machine and the energy efficiency of the system.



Ship cabin positioning monitoring system, accurate detection of water temperature

Leomon heat pumps air commercial hot water unit adopts ultrasonic rangefinder to measure the distance between the water surface and the reference position. The weak current power supply is adopted. The ultrasonic rangefinder does not directly contact with the water in the hot water storage box, which makes it safer to use



Dual working conditions of broadband diversion technology, prolong the life of the unit

Leomon heat pumps commercial heat pump unit dual working conditions of broadband diversion combined with temperature compensation technology, in the state of temperature change, to ensure the compressor to achieve the best working state, prolong the service life, improve thermal efficiency.



Modular control system reduces energy loss

The host provides moderate energy requirements according to the end, reducing unnecessary energy loss.



The main machine does not contain electricity auxiliary heat, energy saving

The host machine of all series products of Leomon heat pumps does not contain electricity and auxiliary heat, which saves unnecessary operation cost.

Some specifications of High Industrial Screw Type Air Cool Air Source Heat Pump China



Spec. KRY-8II KRY-12II KRY-24II KRY-48II KRY-96II KRY-145II KRY-220II
Rated heating capacity(A24/26oC) 8kw 12kw 24kw 48kw 96kw 145kw 220kw
Rated power(kW) 1.56 2.35 4.7 9.3 18.5 23.6 42.5
COP 5.1 5.1 5.1 5.16 5.41 6.14 5.17
Rated heating capacityA20/26oC 7.5kw 11kw 21kw 44 kw 90kw 138kw 208kw
Rated power(kW) 1..5 2.3 4.5 8.6 17.5 24.1 41.5
COP 5 4.78 4.66 5.11 5.14 5.73 5
Cooling Capacity(kW) 3.8 5.7 11.3 23.7 40 58.1 98
Consumed Power(kW) 1.67 2.5 4.9 9.1 18.2 24.2 39
EER 2.3 2.3 2.3 2.6 2.2 2.4 2.5
Rated voltage(Hz) 220V 50HZ 220V 50HZ 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ 380V 3N-50HZ
Maximum input power(kW) 2 3 6 12 24 36.5 61
Maximum current(A) 8 12 24 42 80 90 130
Water flownWh 2.3 3.5 7 13 32 41 62
noise dB(A) <50 <50 <65 <68 <69 <71 <73
Anti-shock level I I I I I I I
waterproof level IPV4 IPV4 IPV4 IPV4 IPV4 IPV4 IPV4
Unit size (mm) 910x350x835 1030x410x865 780x820x1700 1550x780x1700 1550x1550x1700 2360x1550x1840 2206x2020x2170
Unit Weight(kg) 65 95 260 380 760 2100

4005

Application of High Industrial Screw Type Air Cool Air Source Heat Pump China

Villa, Hotels, restarants, household, swimming pool, spas, etc

Some of our projects

Household Air Source Screw Type DHW Heat Pump 415V IPV4 0Household Air Source Screw Type DHW Heat Pump 415V IPV4 1

Household Air Source Screw Type DHW Heat Pump 415V IPV4 2
