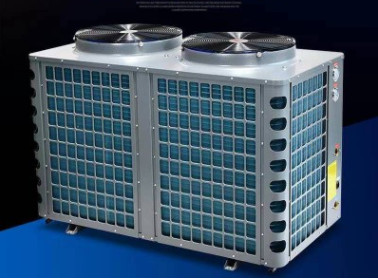

Radiant Floor Heating Air Source DHW Heat Pump 2.17KW 23A

Negotiable
MOQ
Negotiable
Price
Radiant Floor Heating Air Source DHW Heat Pump 2.17KW 23A
Features Gallery Product Description Request A Quote
Features
Specifications
Heat Source Type: Air Source Heat Pump
Application: Appartment, House, Villa, School, Factory, Hotel
Function: Air Conditioning, Heating, Cooling, Hot Water
Work Environment:: Low-temperature Heat Pump
Working Ambient: -30-50℃
Type: Central Air Conditioners Radient Floor Heating
Highlight:

23A DHW Heat Pump

,

-30 degree DHW Heat Pump

,

50Hz Radiant Floor Heating Heat Pump

Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-9I/CY
Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram-25C cold winter monoblock air source new energy heat pump inverter heatpump air to water
Supply Ability: 80000pcs/year
Product Description

Features of Air to Water Heat Pump by Air Source High Efficiency

Copeland special compressor: more suitable for stable operation under high temperature and high pressure, longer service life.

High efficiency titanium gold heat exchanger: strong corrosion resistance, not easy to touch dust, self-cleaning, durable and high efficiency heat absorption.

Four-way reversing valve: can change direction instantly and operate under the minimum pressure difference, safe and more reliable.

Schneider contactor: international famous brand, long service life, low voltage start non adhesion, safe and more reliable.

Intelligent electronic control chip: water temperature, water supply, water level, start time can be set and adjusted freely.

High efficiency tank heat exchanger: high convection design of fin threaded copper tube, high heat transfer efficiency, corrosion resistance and scaling.

Electronic expansion valve: accurately regulate refrigerant flow and pressure, facilitate full evaporation, improve energy efficiency.

Fan blade: optimized blade, large air volume, low noise, strong anti-aging performance, long service life.

Three point temperature control, real-time detection of water temperature

Leomon heat pumps air domestic water tank adopts three-point temperature control technology, which can detect the water temperature in real time to ensure that hot water is available immediately.



Integrated process of floor heating and air conditioning reduces installation faults

In the strategic deployment of "integration of host parts" for Leomon heat pumps floor heating air conditioners and ultra-low temperature heating machines, Leomon heat pumps hydraulic balancer and floor heating air conditioners integrator have been released to reduce the installation threshold and installation faults, save installation time, and improve the quality of the whole machine and the energy efficiency of the system.

Some specifications of Air to Water Heat Pump by Air Source High Efficiency

Spec. DKFXRS-9I/CY DKFXRS-11I/CY DKFXRS-11II/CY DKFXRS-16I/CY DKFXRS-16II/CY DKFXRS-19II/CY DKFXRS-38II/CY
Nominal heating at room temperature(kW) 9.6 10.9 10.8 16 16.4 17.4 38.9
Nominal power consumption at room temperature(kW 2.17 2.63 2.7 3.9 4.1 4.6 8.82
Low temperature heating(kW) 4.1 4.65 4.8 7.8 7.5 8.5 17.6
Low temperature power consumption(kW) 1.85 2.1 2.16 3.37 3.4 3.68 7.3
Maximum input power(kW) 3 4.2 4.2 6.6 6.8 8.5 17
Maximum current(A) 16 23 8A 32 12 15 30
Power Spec.(Hz) 220V-50 220V-50 380V3N-50 220V-50 380V 3N-50 380V3N-50 380V 3N-50
Refrigerant/charge amount R22/2500g R22/5600g R22/5600g R22/6000g R22/6000g R22/6500g R22/6500gx2
noisedb(A) <55 <62 <62 <65 <65 <66 <68
Water resistancekPa <55 <55 <55 <100 £100 <65 <65
Anti-shock level I I I I I I I
waterproof level IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Circulation port diameter DN20 DN32 DN32 DN32 DN32 DN32 DN40
Unit size (mm) 1010x350x835 1030x410x1390 1030x410x1390 1030x410x1390 1030x410x1390 780x820x1700 1550x780x1700
Unit Weight(kg) 87 142 142 148 149 265 435



Some projects of Air to Water Heat Pump by Air Source High Efficiency

About the detailed information of service, you can contact with our sales personnel!
