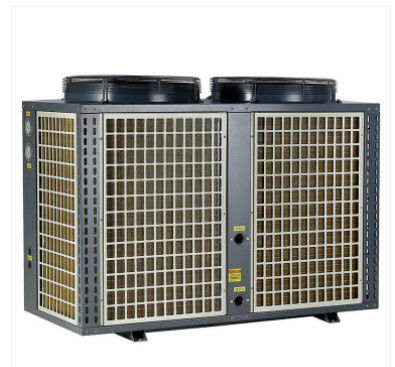

Ultra Low Temperature Two Stage Water Heating DHW Heat Pump IPX4 DN40
Negotiable
MOQ
Negotiable
Price
Ultra Low Temperature Two Stage Water Heating DHW Heat Pump IPX4 DN40
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: LN
Certification: CE ISO CCC
Model Number: DKFXRS-9I/CY
High Light:

Eco DHW Heat Pump IPX4

,

DN40 DHW Heat Pump

,

Two Stage 50 degree Heat Pump

Payment & Shipping Terms
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram-25C cold winter monoblock air source new energy heat pump inverter heatpump air to water
Supply Ability: 80000pcs/year
Specifications
Heat Source Type: Air Source Heat Pump
Application: Appartment, House, Villa, School, Factory, Hotel
Function: Air Conditioning, Heating, Cooling, Hot Water
Work Environment:: Low-temperature Heat Pump
Working Ambient: -30-50℃
Type: Central Air Conditioners Radient Floor Heating
Product Description

Features of Ultra Low Temperature Two Stage Water Heating Air Source Heat Pump

An air energy water heater, comprising a heat exchanger, a water pump and a water tank, characterized in that the water tank comprises a high-temperature heat storage liner and a low-temperature circulating liner respectively connected with the heat exchanger, which are heated by the heat exchanger The latter water below the set temperature enters the low-temperature circulation liner and then enters the heat exchanger for cyclic heating until it reaches the set temperature and then enters the high-temperature heat storage liner for use. Ensure the stability of the outlet water temperature, realize that there will be no water mixing problems during defrosting and water replenishment; and can reduce the volume, reduce the requirements for installation space, and increase the scope of application.
It includes an ultra-low temperature air energy hot fan body. Two square rods are symmetrically arranged on the outer side of the ultra-low temperature air energy hot fan body. Both ends of the square rods are fixed with connecting plates, and the connecting plates are fixed to the ultra-low temperature air energy hot fan body. The connecting plate is sleeved with two sliders, the upper end surface of the slider is provided with a foot hole, the upper end surface of the slider is provided with a first round hole on the side away from the foot hole, the square The upper end surface of the rod is equidistantly provided with a plurality of threaded through holes that are matched with the first circular hole, and the first circular hole is provided with a first connecting bolt, and the first connecting bolt passes through the first circular hole to engage with the thread In the through hole, compared with the prior art, the utility model has the following beneficial effects: the convenient adjustment of the fixed position is realized, and the position of the ultra-low temperature air energy hot air blower does not need to be adjusted as a whole

Some specifications of Ultra Low Temperature Two Stage Water Heating Air Source Heat Pump

Spec. DKFXRS-9I/CY DKFXRS-11I/CY DKFXRS-11II/CY DKFXRS-16I/CY DKFXRS-16II/CY DKFXRS-19II/CY DKFXRS-38II/CY
Nominal heating at room temperature(kW) 9.6 10.9 10.8 16 16.4 17.4 38.9
Nominal power consumption at room temperature(kW 2.17 2.63 2.7 3.9 4.1 4.6 8.82
Low temperature heating(kW) 4.1 4.65 4.8 7.8 7.5 8.5 17.6
Low temperature power consumption(kW) 1.85 2.1 2.16 3.37 3.4 3.68 7.3
Maximum input power(kW) 3 4.2 4.2 6.6 6.8 8.5 17
Maximum current(A) 16 23 8A 32 12 15 30
Power Spec.(Hz) 220V-50 220V-50 380V3N-50 220V-50 380V 3N-50 380V3N-50 380V 3N-50
Refrigerant/charge amount R22/2500g R22/5600g R22/5600g R22/6000g R22/6000g R22/6500g R22/6500gx2
noisedb(A) <55 <62 <62 <65 <65 <66 <68
Water resistancekPa <55 <55 <55 <100 £100 <65 <65
Anti-shock level I I I I I I I
waterproof level IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Circulation port diameter DN20 DN32 DN32 DN32 DN32 DN32 DN40
Unit size (mm) 1010x350x835 1030x410x1390 1030x410x1390 1030x410x1390 1030x410x1390 780x820x1700 1550x780x1700
Unit Weight(kg) 87 142 142 148 149 265 435



Some projects of Ultra Low Temperature Two Stage Water Heating Air Source Heat Pump

Ultra Low Temperature Two Stage Water Heating DHW Heat Pump IPX4 DN40 0Ultra Low Temperature Two Stage Water Heating DHW Heat Pump IPX4 DN40 1
