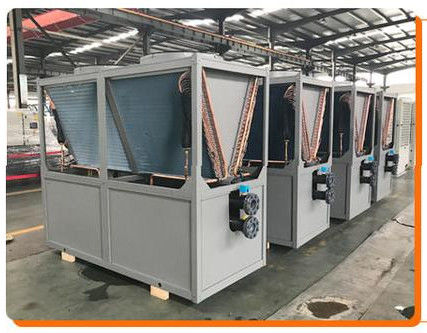

Features of Inverter DC Heat Pump Water Heater For Swimming Pool
★ DC Inverter Heat Pump, Ambient Temperature Lower to -25°C. The Heating Capacity "NO"
Attenuation even lower to -15°C ; Operation Steadily,COP 30% Higher than Normal heat pump; Meet the needs of Heating, Cooling and Hot Water
★ Designed as Split Type , Indoor Unit and Outdoor Unit Connected by Copper pipe, Installation With Simple, Flexible and Conveniently. The Indoor Unit can be Installed in Kitchen, Bathroom or basement,Ensuring less Energy loss, also Prevent Water Pipes
From Freezing in Cold Winter and sun Exposure in Summer.
★ Indoor Unit Includes:Plate Heat Exchanger, Controller, Water Pump, Differential Pressure Flow Switch, Three Way Valve and so on parts.
★ Outdoor Unit Includes:Compressor, Evaporator, Controller, Expansion Valve, Four way valve, Motor,Refrigerant valve and so on parts.
★ Using DC Inverter Compressor, Green Environment & High-Efficiency, Providing Wonderful
Performance and Reliability.
1. Full inverter and full DC frequency conversion technology
2. The average COP is 10 (26℃ air temperature / 26℃ water temperature)
3. Soft start to protect the power system
4. Smart phone APP remote control
For further specification of Inverter DC Heat Pump Water Heater For Swimming Pool and other specifications, welcome to contact us!
| Spec. | KRY-24II | KRY-48II | KRY-96II |
| Rated heating capacity(A24/26oC) | 24kw | 48kw | 96kw |
| Rated power(kW) | 4.7 | 9.3 | 18.5 |
| COP | 5.1 | 5.16 | 5.41 |
| Rated heating capacityA20/26oC | 21kw | 44 kw | 90kw |
| Rated power(kW) | 4.5 | 8.6 | 17.5 |
| COP | 4.66 | 5.11 | 5.14 |
| Cooling Capacity(kW) | 11.3 | 23.7 | 40 |
| Consumed Power(kW) | 4.9 | 9.1 | 18.2 |
| EER | 2.3 | 2.6 | 2.2 |
| Rated voltage(Hz) | 380V 3N-50HZ | 380V 3N-50HZ | 380V 3N-50HZ |
| The compressor | ZW61KA-TFP-52E(one sets ) | ZW61KA-TFP-52E(two sets ) | ZW61KA-TFP-52E(four sets ) |
| Fan Quantity | 1 | 2 | 4 |
| Fan Quantity(W) | 370×1 | 370×2 | 370×4 |
| Fan speed(rpm) | 850 | 850 | 850 |
| Maximum input power(kW) | 6 | 12 | 24 |
| Maximum current(A) | 24 | 42 | 80 |
| Water flownWh | 7 | 13 | 32 |
| noise dB(A) | <65 | <68 | <69 |
| Anti-shock level | I | I | I |
| waterproof level | IPV4 | IPV4 | IPV4 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 1550x1550x1700 |
| Unit Weight(kg) | 260 | 380 | 760 |
| Rated heating conditions: outdoor dry/wet bulb temperature is 24°C/19°C, hot water inlet temperature is 26°C, outlet water temperature is 28°C; | |||
| Rated heating conditions: outdoor dry/wet bulb temperature is 20°C/15°C, hot water inlet temperature is 26°C, outlet water is 28°C; | |||
| Rated Cooling conditions: outdoor dry/wet bulb temperature is 35°C, COOL water inlet temperature is 30°C, outlet water is 28°C. | |||
Specification for Compressor
| Model | Refrigerant | Heating (kw) |
Input power (KW) |
Current (A) |
Large running current (A) |
Weight (kg) |
| ZW61KA-TFP-52E | R22 | 21.86 | 3.12 | 9.6 | 14.4 | 30 |
