Product introduction: Home air water heater water and electricity are completely isolated, users use more safe, more assured; The host is small in size, easy to install, the water tank can be flexibly matched to meet the different requirements of customers; The unit adopts the built-in heat exchanger, the water tank without copper pipe, only the water pipe is connected between the main machine and the water tank, the forced heat exchange between the medium and water, so that the heat exchange efficiency of the unit is higher, better stability, longer life;
Adopt microcomputer controller, users can set freely according to the use requirements; But withthe combination of solar energy, more cost saving, make up for the solar rainy day no hot water, to ensure the normal use of hot water.
A water heater including a water container; a combustion chamber adjacent the water container; a burner associated with the combustion chamber; a blower assembly located to receive combustion products generated by the burner; an intake conduit sealingly connected to the combustion chamber and having a combustion air intake opening located adjacent an upper portion of the water heater; and a dilution air conduit sealingly connected to the blower assembly and having a dilution air intake opening located adjacent a lower portion of the water heater.
R-134A in good thermal and physical properties and environmental protection.
Completely does not destroy the ozone layer, is the current world mainstream use of environmentally friendly refrigerant.

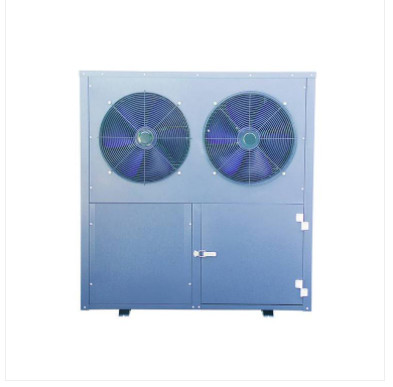

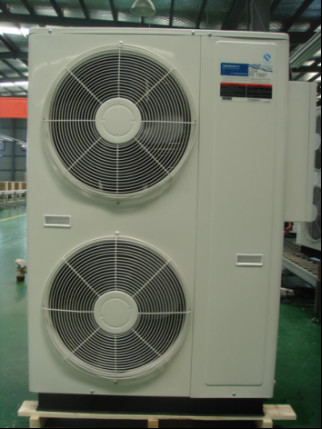

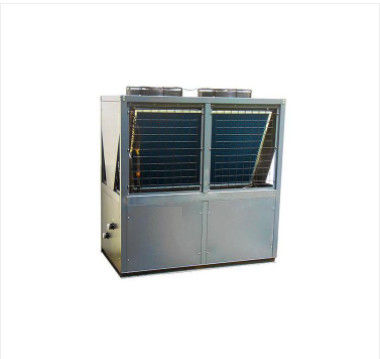

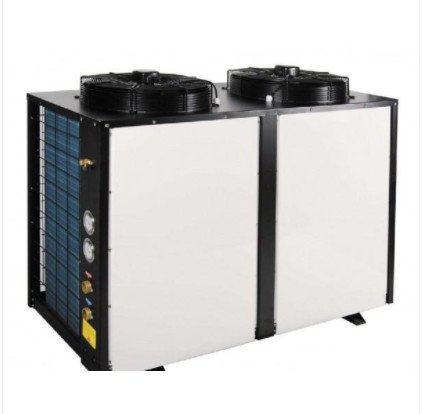

Features of R134A 19kw Monoblock Air Source Heat Pump for Domestic Hot Water
High efficiency and energy saving
It consumes a small amount of electricity and obtains a large amount of free heat from the air for heating. More than 50% energy saving than electric water heater.
Safety and environmental protection
No combustion, no waste gas, carbon monoxide and other harmful gas emissions; Complete separation of water and electricity to prevent leakage accidents.
All-weather use,suitable for any bad or good weather
No solar water heater in rainy weather system insufficient phenomenon, with electricity and air can be 24 hours of continuous heating
Long service life
Air source heat pump and air conditioning working principle is similar, the service life can reach more than 10 years.
Multi-purpose use
Provide us with hot water, heating, air conditioning, the effect is very ideal.
Comfortable enjoy
Water production temperature of 55 degrees, constant water temperature, will not appear sometimes hot and sometimes cold; Super large water output, multi-point water supply at the same time.
Welcome to conctact,our strong and professional technical and marketing team ready to make best service!
| Item | KFXRS-19I |
| Nominal heating capacity at room temperature(kW) | 20 |
| Nominal input power at room temperature(kW) |
4.19 |
| Rated voltage(Hz) | 220V-50 |
| Low temperature nominal heatingWkW) |
15.5 |
| Low temperature nominal input power(kW) |
4.18 |
| Maximum input power(kW) | 8 |
| Maximum current(A) | 32 |
| noisedb(A) | <66 |
| Anti-shock level | I |
| waterproof level | IPX4 |
| Caliber of inlet and outlet | DN32 |
| Unit size (mm) | 1030x410x1390 |
| Unit Weight kg) | 126 |
