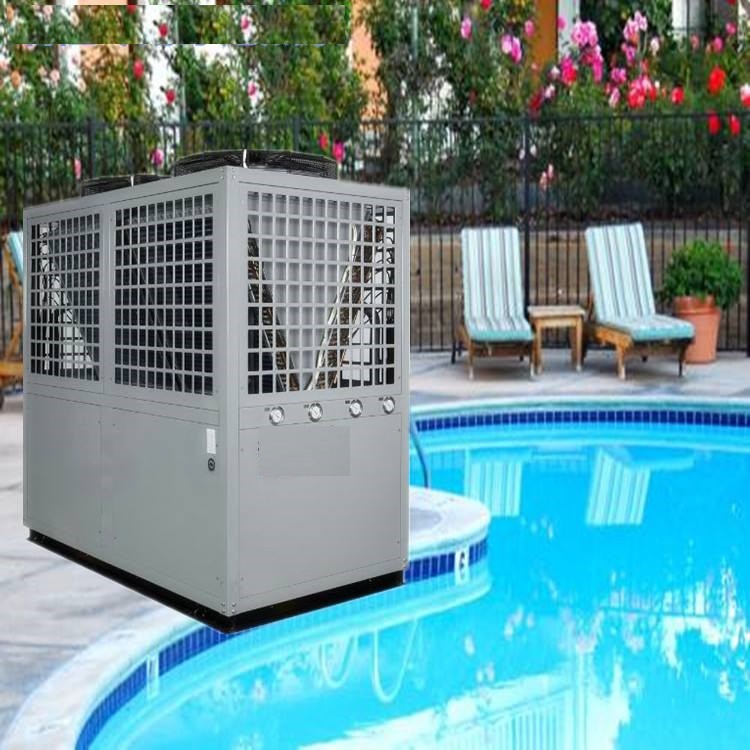

75 kw CO2 water source heat pump
1. Product model: LN-75ZW
2. Refrigerant: carbon dioxide (R744/CO2);
3. Heating capacity: 75kW;
4. Cooling capacity: 59.8kW;
5. Operating power: 16.3kW;
6. Comprehensive energy efficiency: 8.26;
7. Heating temperature: 55-98℃;
8. Refrigeration temperature: 3-15℃;
9. Use function: places that need hot water and cold water at the same time.
CO2 Refrigerant: Advantages
①Non-flammable, non-toxic.
② Natural product.
3Does not require any special procedures to recover refrigerant
4 No need to reacquire.
5 No damage to the Ozone Layer.
6.ODP=0 (Ozone Threat Potential Value 0)2
7.GWP=1(Greenhouse Effect Potential Value 1)
8.Not subject to any country's tax and regulatory regulations.
Advantages for CO2 R744 Heat Pump:
1The water temperature can be up to 100℃, high temperature storage can reduce the volume of the water tank.
2 The working limit is-43℃, but the water still can be discharged efficiently.
3 Maximum COP is 5.5.And for the All-in-one Multifunctional Machine, its Maximum COP is 7.
4 All-in-one Machine can produce hot and cold water at the same time to achieve maximize the efficiencial energy utilization.
5.Can meet different water consumption.
6 Single mechanism coaxial 520kW can be combined with multiple modules.
⑦ Safety, with 6times for overpressure safety protection, water and electricity separation.
⑧ Intelligent frequengy conversion control can save 50% of the energy when defrosting.
9.Split design, especially for high-rise places that cannot be hoisted and transported.
10. Smart wireless APP control, can realize unmanned management.

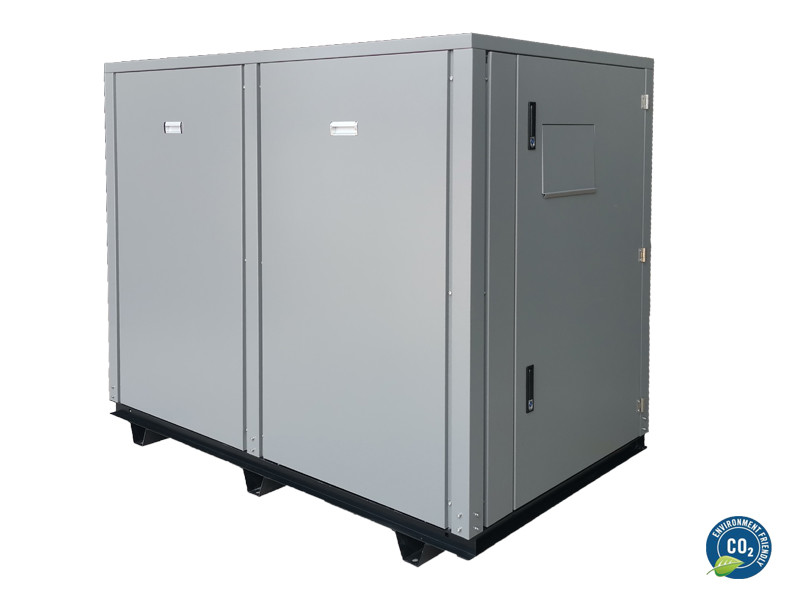

75 kw CO2 water source heat pump

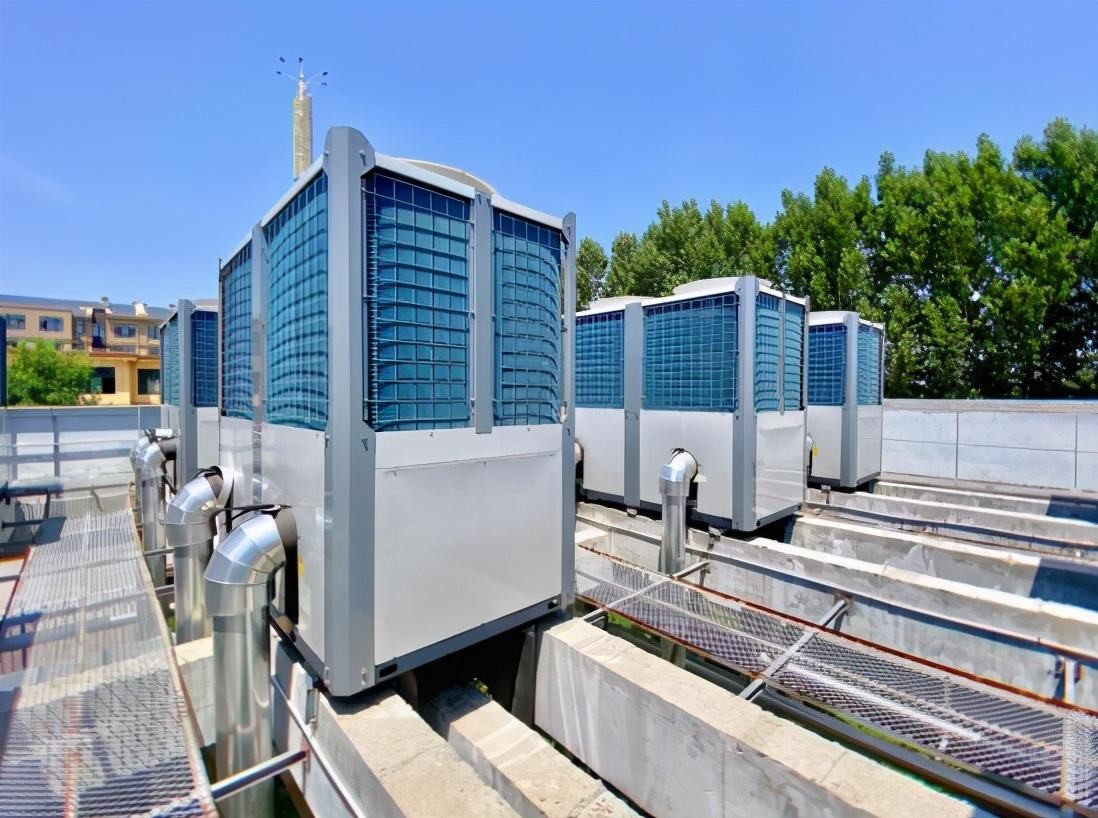

75 kw CO2 water source heat pump
1.DC variable frequency two-stage compressor.
2. The Split-Type Machine can be configured with a maximum water tank volume is 2000L.
3.Integrated built-in water tank volume as 40L,180L, 220L, 260L, 320L
④ Product Functions: Single Hot Water Unit Machine, Water Boiler,Domestic Hot Water+ Heating+ Solar Heating.
(5 Suitable for houses, illas,small hotels, small factories, hospital disinfection, etc.
CO2Cascade AC Inverter Heat Pump
① AC inverter compressor.
② CPP/PLC main control, colorful touch screen.
3 Ultra-low temperature operation-43℃C.
④ Split or whole body machine, can be customized as prefer.
⑤ Product Function: Ultra-low Temperature Heating in winter, Cooling in summer.
3.Applicable to places requiring heating such as northern high-speed railway stations,supermarkets, factories, stadiums, hot 45 kw CO2 Cascade AC Inverter Heat Pump Integral ultra-low temperature cascade carbon dioxide heat pump els, farms etc.
| CO2 AC Inverter Water Source Heat Pump | |||||
| Type | LNS-40ZW | LNS-75ZW | LNS-160ZW | ||
| Function | Heating Capacity | kW | 39.3 | 76.3 | 156 |
| Hot Water Capacity | L/H | 750 | 1450 | 2980 | |
| Heating Power Input | kW | 8.1 | 16.5 | 37.1 | |
| Cooling Capacity | kW | 31 | 59.8 | 118.9 | |
| COP | W/W | 4.7 | 4.6 | 4.2 | |
| Power Supply | V/Ph/Hz | 380V~415V~ 50/60Hz | |||
| Cooling Water Flow Volume | M3/H | 5.3 | 10.2 | 20.4 | |
| Rated Output Water Temperature | ℃ | 60 | |||
| Maximum Output Water Temperature | ℃ | 90 | |||
| Working Ambient Temperature Range | ℃ | (-)25-43 | |||
| Water Connection Pipe Size | mm | DN20/DN32 | DN20/DN40 | DN40/DN65 | |
| Refrigerant | Type | R744/CO2 | |||
| Dimensions | mm | 1500x900x1290 | 1500x900x1285 | 900*900x1910 | |
| Noise Level | dB(A) | 45 | 51 | 51 | |
| Net Weight | KG | 530 | 985 | 900 | |
| Inverter | AC | ||||
| Standard Temperature Condition: | |||||
| Cold Water Side: Inlet Water Temperature 12C, Outlet Water Temperature 7°C. | |||||
| Hot Water Side: Inlet Water Temperature 15C, Outlet Water Temperature 60°C. | |||||
75 kw CO2 water source heat pump
Application Diagram Pressure-bearing water tank
System Diagram Smart Control System
8kW household carbon dioxide all-in-one machine CO2 air source heat pump multifunctional
System schematic diagram
