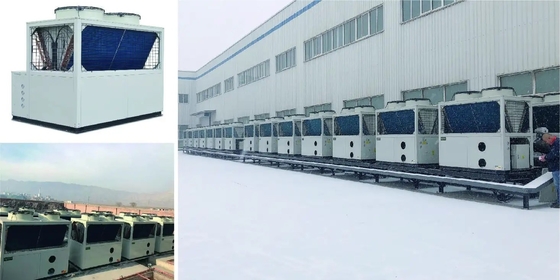

160 kw CO2 water source heat pump commercial usage industry school university heating and hot water

1. Product model: LN-160ZW

2. Refrigerant: carbon dioxide (R744/CO2);

3. Heating capacity: 160kW;

4. Cooling capacity: 124.5kW;

5. Operating power: 35.5kW

6. Comprehensive energy efficiency: 8.01

7. Heating temperature: 55-98℃;

8. Refrigeration temperature: 3-15℃;

9. Use function: places that need hot water and cold water at the same time.

CO2 Refrigerant: Advantages
①Non-flammable, non-toxic.
② Natural product.
3 Does not require any special procedures to recover refrigerant
4 No need to reacquire.
5 No damage to the Ozone Layer.
6. ODP=0 (Ozone Threat Potential Value 0)2
7. GWP=1(Greenhouse Effect Potential Value 1)
8. Not subject to any country's tax and regulatory regulations.
Advantages for CO2  R744 Heat Pump:
1The water temperature can be up to 100℃, high temperature storage can reduce the volume of the water tank.
2 The working limit is-43℃, but the water still can be discharged efficiently.
3 Maximum COP is 5.5.And for the All-in-one Multifunctional Machine, its Maximum COP is 7.
4 All-in-one Machine can produce hot and cold water at the same time to achieve maximize the efficiencial energy utilization.
5.Can meet different water consumption.
6 Single mechanism coaxial 520kW can be combined with multiple modules.
⑦ Safety, with 6times for overpressure safety protection, water and electricity separation.
⑧ Intelligent frequengy conversion control can save 50% of the energy when defrosting.
9.Split design, especially for high-rise places that cannot be hoisted and transported.
10. Smart wireless APP control, can realize unmanned management.
160 kw CO2 water source heat pump commercial usage industry school university heating and hot water
1.DC variable frequency two-stage compressor.
2. The Split-Type Machine can be configured with a maximum water tank volume is 2000L.
3.Integrated built-in water tank volume as 40L,180L, 220L, 260L, 320L
④ Product Functions: Single Hot Water Unit Machine, Water Boiler,Domestic Hot Water+ Heating+ Solar Heating.
(5 Suitable for houses, illas,small hotels, small factories, hospital disinfection, etc.
 The highest water temperature can reach 90℃
The main problem facing CO2 heat pump water heaters is to continuously improve efficiency and reduce costs, thereby improving their competitiveness with conventional heat pump water heaters. In order to improve efficiency, we need to rely on innovation in technology.
1) Development of expansion mechanism
Through theoretical analysis, the use of an expander to replace the throttle valve and recovery of the expansion work can greatly improve the performance of the transcritical CO2 cycle. Therefore, many research institutions at home and abroad are investing a lot of research and development efforts in research. The open literature reports involve expansion machine types including piston type, free piston type, scroll type, rolling rotor type, swing rotor type, sliding vane type, etc. Although A prototype has been developed, but many technical issues still need to be overcome.
2) Continuous improvement of CO2 compressor efficiency.
The compressor is a key component of the entire transcritical CO2 cycle system, and its efficiency directly affects the performance of the system. Many manufacturers and research institutions have improved the efficiency of CO2 compressors by improving the structure of CO2 compressors, improving processing accuracy, and improving the lubrication conditions of moving parts.
3) The heat exchange efficiency of the heat exchanger is continuously improved.
Through the analysis of the effective energy of the CO2 cycle system, it is found that in addition to the throttling loss, the loss of the heat exchanger also occupies a large part of the total loss, and even exceeds the throttling loss for a single-stage CO2 cycle. Heaters are critical to improving the performance of the CO2 cycle system.
4) The cold and heat of the CO2 heat pump water heater are used at the same time.
Theoretical research shows that the efficiency of the system can be significantly improved by using the cold and heat of the CO2 heat pump water heater at the same time. Therefore, it is more meaningful to develop a heat pump water heater that provides both hot water and cooling.
Minimum operating ambient temperature -25℃

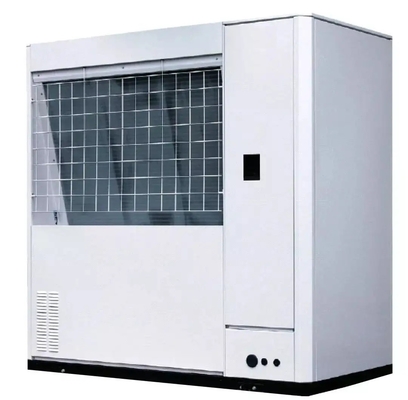

CO2Cascade AC Inverter Heat Pump
① AC inverter compressor.
② CPP/PLC main control, colorful touch screen.
3 Ultra-low temperature operation-43℃C.
④ Split or whole body machine, can be customized as prefer.
⑤ Product Function: Ultra-low Temperature Heating in winter, Cooling in summer.
3.Applicable to places requiring heating such as northern high-speed railway stations,supermarkets, factories, stadiums, hot 45 kw CO2 Cascade AC Inverter Heat Pump Integral ultra-low temperature cascade carbon dioxide heat pump els, farms etc.

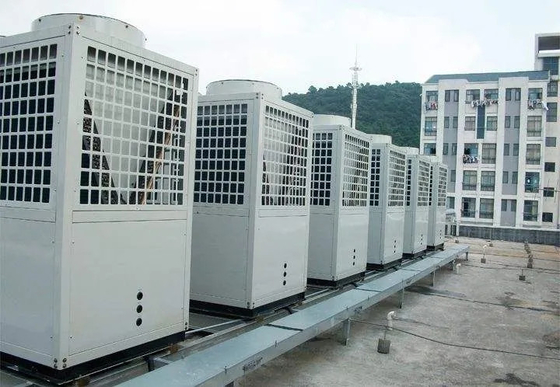

160 kw CO2 water source heat pump commercial usage industry school university heating and hot water

160 kw CO2 water source heat pump commercial usage industry school university heating and hot water
Application Diagram Pressure-bearing water tank

System Diagram Smart Control System

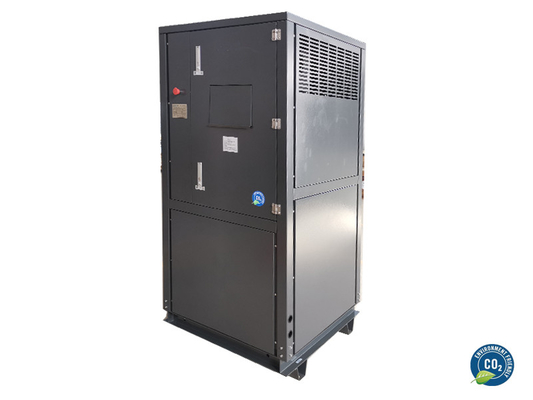

8kW household carbon dioxide all-in-one machine CO2 air source heat pump multifunctional



System schematic diagram
