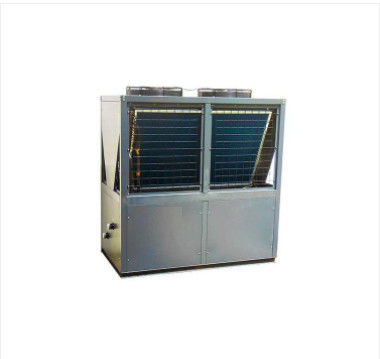

Industrial-Grade High-Temperature Water Source Heat Pump for Process Heating
Air source heat pump is an energy-saving device that utilizes high-level energy to transfer low-level heat sources to high-level heat sources . It is based on the principle of inverse Carnot cycle, and achieves heat transfer through components such as compressors, with functions of heating, cooling, and hot water supply.
Heat pumps have the ability to integrate with various renewable energy sources, including solar and geothermal energy, to establish a multi energy complementary heating framework. This integration helps to improve the stability and reliability of the heating process.
Custom temperature configuration:
Users can flexibly personalize their heating experience by setting different temperature levels for different time intervals. This can be achieved through mobile applications or control panels based on their specific requirements and preferences.
Intelligent control and remote monitoring functions:
The system supports remote monitoring of device status, temperature regulation, and power on/off scheduling through mobile applications. This feature not only enhances the overall user experience by providing convenient access to system controls, but also improves management efficiency. Users can monitor and adjust the system's operation from anywhere to ensure optimal performance and energy efficiency.
Silent design:
Using low-noise compressors and axial fans, combined with multiple noise reduction control system designs and sound-absorbing barrier technology, to reduce operating noise and provide a peaceful usage environment
| Type | FKH-100II/CGW |
| Top out wind | |
| Power specifications | 380V3N~50Hz |
| Heating capacity under A1 operating condition(20) |
100kW |
| Heating consumption power under A1 working condition |
47.6kW |
| Heating capacity under A2 working condition(7) |
95kW |
| Heating consumption power under A2 working condition |
50kW |
| Heating capacity under A3 working cond ition (-12) |
90kW |
| Heating consumption power under A3 working condition |
56.5kW |
| Heating capacity under A4working condition(-20) |
80kW |
| Heating consumption power under A4 working condition |
55.2kW |
| Maximum operating current | 160A |
| Discharge | 17.2m³/h |
| Noise | ≤68dB(A) |
| Water side pressure loss | ≤85kPa |
| Unit size (ength x width x height mm) | 2260×1230×2170 |
| CONNECT SIZE | DN65(flange) |
| Unit weight (kg) | 1110 |
Shipbuilding industry: In ship structure operations, the use of specific technologies for welding, cleaning, and drying can improve production efficiency, ensure product quality, and reduce energy consumption.
Ink and Coatings Industry: Used for melting, mixing, and processing materials, as well as drying products, to improve the quality and durability of paints and coatings, and reduce energy consumption.
Fertilizer and pesticide manufacturing: Heating and drying are indispensable in the production process of fertilizers and pesticides, and their application can improve production speed and optimize product quality.
Ma'anshan Laineng Energy saving Technology Co., Ltd. is an enterprise that integrates research and development, production, sales, and service, and has outstanding performance in the field of heat pump energy-saving products. The company's business mainly covers energy-saving and environmentally friendly products, such as carbon dioxide heat pumps, providing customers with one-stop services from design, production to delivery. In terms of energy-saving products, taking carbon dioxide heat pumps as an example, their products have the characteristics of natural environmental protection, good high-temperature heating performance, strong low-temperature adaptability, high efficiency, and wide applicability. Our company's products have been exported to more than 40 countries and regions including the United States, Canada, Australia, Kenya, Brazil, etc., and have received praise and praise from customers. The company is committed to every project, guided by customer needs, and strives to become a first-class service enterprise with international competitiveness.
If you are satisfied with our company's heat pump products, you can directly order or consult about heat pump related issues. We will provide you with the best heat pump products and services. We are pleased to cooperate with you and bring you satisfactory products.
What should I do if the heat pump produces loud noise during operation?
Regularly check the equipment status and replace aging components such as compressors and fans in a timely manner. Ensure stable installation of equipment and reduce vibration and noise generation.
What should be done if the heating efficiency decreases in a low-temperature environment?
Choose a two-stage compression or cascade heat pump (such as the COLDNOT model) to ensure stable operation at -35 ° C; Install auxiliary electric heating, but pay attention to the increase in energy consumption.
What if you don't know how to use a heat pump?
Provide detailed user manuals and maintenance guidelines to guide users in the correct use and maintenance of the heat pump; Regularly conduct user training and technical support activities to enhance users' usage skills and maintenance awareness.
