| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

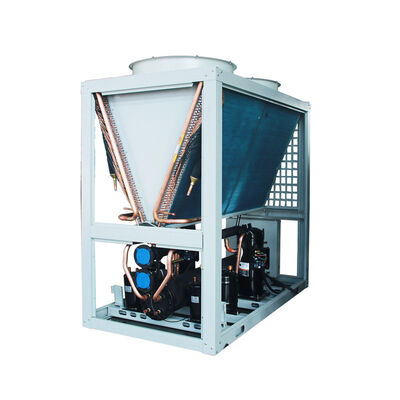

This 75°C high-temperature heat pump boasts powerful performance and high stability, ensuring a maximum outlet water temperature of 75°C. This is thanks to its dedicated heat pump compressor and intelligent temperature control system. The application of a variable frequency control system further enhances stability under high-temperature conditions, making it more energy-efficient and environmentally friendly.
Our high-temperature heat pumps can also be used for domestic hot water and heating applications. They can also be applied in specialized industries (such as food processing, electroforging, spraying, packaging and printing, chemical industry, and slaughtering) requiring hot water temperatures above 55°C.
Features
1. High-efficiency fully hermetically sealed Copeland scroll compressor.
2. R410A refrigerant.
3. Aluminum heat exchanger with added blue fins.
4. Reverse circulation valve.
5. Compact design with sound insulation.
6. High-efficiency tank heat exchanger on the water side.
7. Automatic anti-freeze and defrost function.
8. Comprehensive protection functions include high pressure, low pressure, overheat, overload, antifreeze, phase sequence, and exhaust temperature protection.
9. Each unit undergoes routine and operational testing before factory packaging.
Advantages
1. Compressor
Our large heat pumps use Copeland scroll compressors (USA), while small heat pumps use compressors, specifically designed for heat pumps with high operating efficiency.
2. Electrical Control System
Through project control functions, the circulating pump, water compensation, water supply, auxiliary electric heating, and PID automatic defrosting can be easily controlled. Users can set different parameters according to different project needs and achieve automation of the entire system.
3. Shell-and-Tube Heat Exchanger
The heat pump utilizes a high-efficiency shell-and-tube heat exchanger, with a heat exchange area 3.7 times that of bare tubes. Its unique design and compact spiral structure ensure sufficient heat exchange of the refrigerant.
4. Electronic Expansion Valve
We use Sanhua brand expansion valves and, combined with our company's control system, have developed a special electronic expansion controller. This controller uses digital technology to adjust the refrigerant based on temperature factors to achieve optimal flow performance and a higher COP value.
Specifications
| type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
12kW | 20kW | 40kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.2kW |
| Heating capacity under A2 working condition(7) |
11.5kW | 19kW | 38kW |
| Heating consumption power under A2 working condition |
5.3kW | 8.7kW | 17.5kW |
| Heating capacity under A3 working condition(-12) |
10.5kW |
17kW | 35kW |
| Heating consumption power under A3 working condition |
5.3kW |
8.5kW | 19kW |
| Heating capacity under A4working condition(-20) |
9kW |
15kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW |
9.3kW | 18.5kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon nipples) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 212 | 412 |
