| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

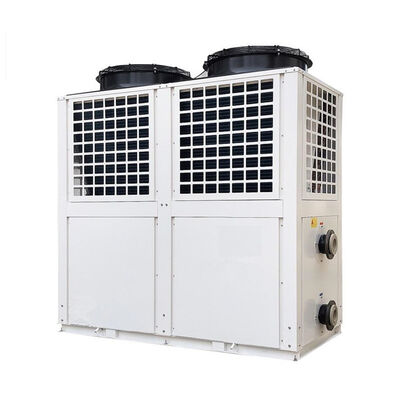

Leomon's high-temperature air source heat pumps are designed for commercial/industrial hot water supply, with a maximum outlet water temperature of 80°C.
Our high-temperature heat pumps can also be used for domestic hot water and heating applications. High-temperature heat pumps can also be applied in some specialized industries (such as food, electroforging, spraying, packaging and printing, chemical, slaughtering, etc.) requiring hot water temperatures above 55°C.
Features
1. EVI Compressor Technology: Employs a Copeland EVI compressor for efficient operation under various conditions.
2. Multi-Power Supply Compatibility: Supports 220V-240V single-phase power and 380V-415V three-phase power.
3. Comprehensive Safety Protection: Features temperature, time, water flow, antifreeze, current protection, and pressure switch functions.
4. Flexible Customization: Offers fully customized, small-batch customization, and design/sample-based options.
5. Wide Application Range: Suitable for villas, hotels, factories, hospitals, and student apartments.
6. Quality Certifications: Certified with CE, ISO9001, CCC, CB, RoHS, SASO, and SGS.
7. High Energy Efficiency: Energy efficiency ratio reaches 2.52-2.56, saving approximately 70% energy compared to traditional heaters.
8. Maximum outlet water temperature can reach 80℃ when the air temperature ranges from 5℃ to 45℃.
Advantages
1. Compressor
Our large heat pumps use American Copeland scroll compressors, while small heat pumps use compressors, specifically designed for heat pumps with high operating efficiency.
2. Electrical Control System
Through project control functions, the circulating pump, water compensation, water supply, auxiliary electric heating, and PID automatic defrosting can be easily controlled. Users can set different parameters according to different project needs and achieve automation of the entire system.
3. Shell-and-Tube Heat Exchanger
The heat pump utilizes a high-efficiency shell-and-tube heat exchanger, with a heat exchange area 3.7 times that of bare tubes. Its unique design and compact spiral structure ensure sufficient heat exchange of the refrigerant.
4. Electronic Expansion Valve
We use Sanhua brand expansion valves and, combined with our company's control system, have developed a special electronic expansion controller. This controller uses digital technology to adjust the refrigerant based on temperature factors to achieve optimal flow performance and a higher COP value.
Specifications
| type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
12kW | 20kW | 40kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.2kW |
| Heating capacity under A2 working condition(7) |
11.5kW | 19kW | 38kW |
| Heating consumption power under A2 working condition |
5.3kW | 8.7kW | 17.5kW |
| Heating capacity under A3 working condition(-12) |
10.5kW |
17kW | 35kW |
| Heating consumption power under A3 working condition |
5.3kW |
8.5kW | 19kW |
| Heating capacity under A4working condition(-20) |
9kW |
15kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW |
9.3kW | 18.5kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon nipples) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 212 | 412 |
Get More Help
Leomon offers high-quality ODM and OEM services, customizing solutions to your needs. Our experienced team of engineers and designers will bring your ideas to life. Contact us today for more information.
|
|
