| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

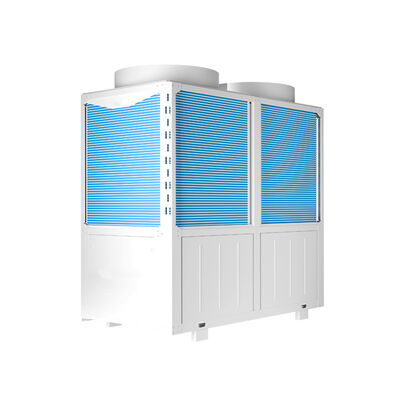

With a maximum water temperature of 85℃, our high-temperature heat pumps are easy and stable to operate, with low operating costs, ensuring the normal operation of production processes. Our high-temperature heat pumps can meet the high-temperature water needs of industries such as slaughterhouses, electroplating plants, printing and dyeing plants, chemical plants, pharmaceutical plants, and aquaculture.
Features
1. High-efficiency fully sealed scroll compressor (Copeland).
2. R134A or R417A refrigerant.
3. Aluminum heat exchanger with blue fins.
4. Reverse circulation valve.
5. Compact design and sound insulation.
6. High-efficiency tank heat exchanger on the water side.
7. Automatic antifreeze and defrost functions.
8. Comprehensive protection functions including high pressure, low pressure, overheat, overload, antifreeze, phase sequence, and exhaust temperature.
9. Each unit undergoes routine and operational testing before factory packaging.
Advantages
1. Compressor
Our large heat pumps use Copeland scroll compressors from the USA, while our small heat pumps use compressors, specifically designed for heat pumps and offering high efficiency.
2. Electrical Control System
Through project control functions, you can easily control the circulation pump, water compensation, water supply, auxiliary electric heating, and PID automatic defrosting. Users can set different parameters according to different project needs and achieve full system automation.
3. Shell and Tube Heat Exchanger
The heat pump uses a high-efficiency shell and tube heat exchanger, with a heat exchange area 3.7 times that of bare tubes. Its unique design and compact spiral structure ensure sufficient heat exchange of the refrigerant.
4. Electronic Expansion Valve
We use Sanhua brand expansion valves and, combined with our company's control system, have developed a special electronic expansion controller. This controller utilizes digital technology to adjust the refrigerant based on temperature factors to achieve optimal flow performance and a higher COP value.
Specifications
| type | FKH-12I/GW | FKH-20II/GW | FKH-40II/GW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
12kW | 20kW | 40kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.2kW |
| Heating capacity under A2 working condition(7) |
11.5kW | 19kW | 38kW |
| Heating consumption power under A2 working condition |
5.3kW | 8.7kW | 17.5kW |
| Heating capacity under A3 working condition(-12) |
10.5kW |
17kW | 35kW |
| Heating consumption power under A3 working condition |
5.3kW |
8.5kW | 19kW |
| Heating capacity under A4working condition(-20) |
9kW |
15kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW |
9.3kW | 18.5kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 2.1m³/h | 3.5m³/h | 6.9m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size(length x width x height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples ) | DN32(hexagon nipples) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 212 | 412 |
Get More Help
Leomon offers high-quality ODM and OEM services, providing customized solutions to your needs. Contact us today for more information.
|
|
