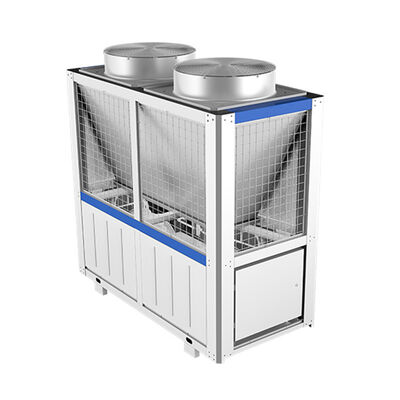

This air-cooled heat pump water heater is one of our company's independently developed water heater products. It uses a Hanbell two-stage semi-hermetic screw compressor, with a hot water temperature range of 55℃ to 85℃ and an operating ambient temperature range of -25℃ to 10℃. Therefore, we call it a "high-temperature and ultra-low-temperature air-cooled water heater."
High-temperature heat pumps are suitable for hot oil storage projects, dairy plants, beverage factories, breweries, restaurant kitchen disinfection, and the textile printing and dyeing industry, etc. This is the most energy-efficient and economical method for heating hot water.
Features
1. High-efficiency fully sealed scroll compressor (Copeland).
2. R134A or R417A refrigerant.
3. Added aluminum heat exchanger with blue fins.
4. Reverse circulation valve.
5. Compact structure and sound insulation design.
6. Equipped with a high-efficiency tank heat exchanger on the water side.
7. Automatic anti-freeze and defrost function.
8. Comprehensive protection functions include high pressure, low pressure, overheat, overload, antifreeze, phase sequence, and exhaust temperature protection.
9. Each unit undergoes routine and operational testing before factory packaging.
Advantages
1. Compressor
Our large heat pumps use Copeland scroll compressors (USA), while small heat pumps use compressors, specifically designed for heat pumps with high efficiency.
2. Electrical Control System
Project control functions allow for easy control of the circulation pump, water compensation, water supply, auxiliary electric heating, and PID automatic defrosting. Users can set different parameters according to different project requirements and automate the entire system.
3. Shell-and-Tube Heat Exchanger
The heat pump uses a high-efficiency shell-and-tube heat exchanger with a heat exchange area 3.7 times that of bare tubes. Its unique design and compact spiral structure ensure sufficient heat exchange of the refrigerant.
4. Electronic Expansion Valve
We use Sanhua brand expansion valves and, combined with our company's control system, have developed a special electronic expansion controller. This controller utilizes digital technology to adjust the refrigerant based on temperature factors to achieve optimal flow and a higher COP value.
Specifications
| type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW | 18kW | 35kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW | 17kW | 34kW |
| Heating consumption power under A2 working condition |
5kW | 8.9kW | 17.9kW |
| Heating capacity under A3 working condition(-12) |
9.5kW | 17kW | 32kW |
| Heating consumption power under A3 working condition |
6.2kW | 10.6kW | 20.6kW |
| Heating capacity under A4working condition(-20) |
8kW | 16kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW | 11.1kW | 20.1kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 1.7m³/h | 3.1m³/h | 6m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples)) |
DN32(hexagon nipples)) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 215 | 415 |
Get More Help
Leomon offers high-quality ODM and OEM services, providing customized solutions to your needs. Contact us today for more information.
|
|
