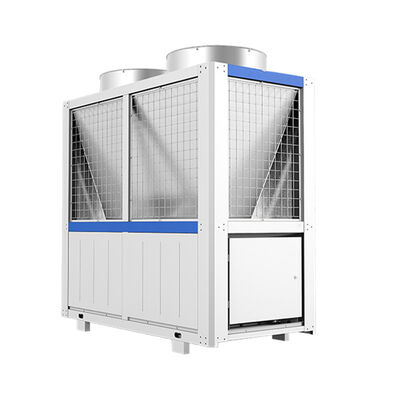

This high-temperature heat pump provides efficient high-temperature heat from ultra-low temperature heat sources, featuring stable operation, a wide temperature range, and high efficiency. It operates stably in ultra-low ambient temperatures down to -38°C, with a stable heating temperature of 95°C; all operating conditions are intelligent, precise, adjustable, and controlled for high efficiency and stability, with a maximum heating temperature of 135°C.
This high-temperature heat pump has a wide energy regulation range, accurately outputting energy according to the load, reducing energy waste and lowering operating costs. This expands the application range and efficiency of air source heat pump units in building heating, providing reliable, energy-saving, and environmentally friendly high-temperature hot water equipment for commercial and industrial sites. It reduces energy consumption, increases output, and improves business profits.
Features
1. High-efficiency fully hermetically sealed Copeland scroll compressor.
2. R134A or R417A refrigerant.
3. Aluminum heat exchanger with added blue fins.
4. Reverse circulation valve.
5. Compact structure and sound insulation design.
6. Equipped with a high-efficiency tank heat exchanger on the water side.
7. Automatic anti-freeze and defrosting functions.
8. Comprehensive protection functions including high pressure, low pressure, overheat, overload, anti-freeze, phase sequence, and exhaust temperature protection.
9. Each unit undergoes routine and operational testing before factory packaging.
Application Areas
Suitable for radiator heating, industrial high-temperature hot water, slaughterhouse high-temperature hot water, electroplating temperature control, chemical liquid heating, and high-temperature rinsing hot water.
Advantages
1. Compressor
Our large heat pumps use American Copeland scroll compressors, while small heat pumps use compressors, specifically designed for heat pumps with high operating efficiency.
2. Electrical Control System
Through project control functions, the circulating pump, water compensation, water supply, auxiliary electric heating, and PID automatic defrosting can be easily controlled. Users can set different parameters according to different project requirements and achieve automation of the entire system.
3. Shell-and-Tube Heat Exchanger
The heat pump utilizes a high-efficiency shell-and-tube heat exchanger, with a heat exchange area 3.7 times that of bare tubes. Its unique design and compact spiral structure ensure sufficient heat exchange of the refrigerant.
4. Electronic Expansion Valve
We use Sanhua brand expansion valves and, combined with our company's control system, have developed a special electronic expansion controller. This controller uses digital technology to adjust the refrigerant based on temperature factors to achieve optimal flow performance and a higher COP value.
Specifications
| type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW | 18kW | 35kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW | 17kW | 34kW |
| Heating consumption power under A2 working condition |
5kW | 8.9kW | 17.9kW |
| Heating capacity under A3 working condition(-12) |
9.5kW | 17kW | 32kW |
| Heating consumption power under A3 working condition |
6.2kW | 10.6kW | 20.6kW |
| Heating capacity under A4working condition(-20) |
8kW | 16kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW | 11.1kW | 20.1kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 1.7m³/h | 3.1m³/h | 6m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples)) |
DN32(hexagon nipples)) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 215 | 415 |
Get More Help
Leomon offers high-quality ODM and OEM services, customizing solutions to your needs. Contact us today for more information.
|
|
