| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

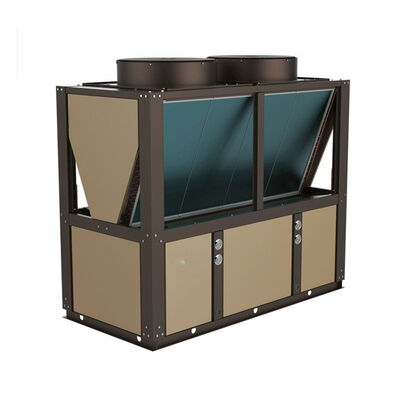

This screw-type water source heat pump efficiently produces 85℃ hot water using a low-grade heat source, achieving an energy efficiency ratio (EER) of 4.5-5.0 and energy savings exceeding 70%. It is widely used in hospitals, shopping malls, hotels, office buildings, livestock farming, brewing, petrochemicals, machinery manufacturing, and pharmaceutical industries. Furthermore, it is equipped with cloud platform monitoring, fault logging, and high-efficiency heat exchange technology.
Features
1. Wide capacity range: 428~2600kW
2. High efficiency and energy saving: EER up to 5.0
3. High-efficiency screw compressor with inverter drive
4. Waste heat recovery and recycling
5. 7-inch touchscreen controller for easy operation
6. Intelligent control: Real-time monitoring of unit operating parameters and self-diagnostic function.
7. Refrigerant: R134a
Advantages
1. High Energy Efficiency Ratio, Low Operating Costs
This system has an energy efficiency ratio of 4.5-5.0, making it a strong alternative to electric boilers and traditional oil-fired heating.
2. Stable Water Source Performance
Due to the relatively stable water source temperature, the system can maintain reliable output year-round.
3. Smart IoT and Cloud Monitoring
Real-time parameter monitoring, operating status recording, and optional AIoT cloud services for remote operation and fault prediction.
4. Clean, Reliable, Industrial-Grade Design
It utilizes a high-efficiency heat exchanger, variable frequency twin-screw compressor, and environmentally friendly refrigerant, supporting long-term low-carbon operation.
Specifications
| type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW | 18kW | 35kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW | 17kW | 34kW |
| Heating consumption power under A2 working condition |
5kW | 8.9kW | 17.9kW |
| Heating capacity under A3 working condition(-12) |
9.5kW | 17kW | 32kW |
| Heating consumption power under A3 working condition |
6.2kW | 10.6kW | 20.6kW |
| Heating capacity under A4working condition(-20) |
8kW | 16kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW | 11.1kW | 20.1kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 1.7m³/h | 3.1m³/h | 6m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples)) |
DN32(hexagon nipples)) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 215 | 415 |
Get More Help
Leomon offers high-quality ODM and OEM services, customizing solutions to your needs. Contact us today for more information.
|
|
