| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | standard export package, or as per customer request |
| Delivery Period: | 1-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union |

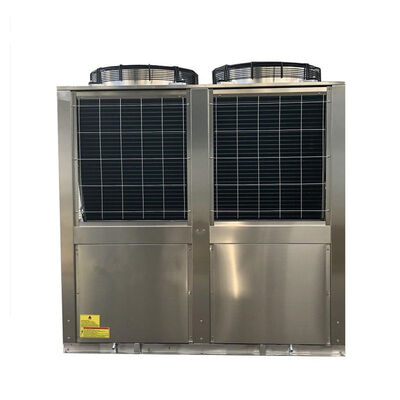

Leomon’s high-temperature air source heat pump is designed specifically for commercial and industrial hot water supply, capable of delivering outlet water temperatures up to 85°C.
Our high-temperature heat pumps are suitable for residential hot water and space heating, as well as specialized industries requiring water temperatures above 55°C—such as food processing, metal forging, spray coating, packaging and printing, chemical manufacturing, and slaughterhouses.
Features
1. EVI Compressor Technology: Utilizes Copeland EVI compressors for efficient operation across various conditions.
2. Power Supply Compatibility: Supports both 220V–240V single-phase and 380V–415V three-phase power supplies.
3. Comprehensive Safety Protection: Includes safeguards for temperature, timing, water flow, anti-freezing, and electrical current, as well as pressure switch functions.
4. Flexible Customization: Offers options for full customization, small-batch customization, and production based on specific designs or samples.
5. Wide Application Range: Suitable for villas, hotels, factories, hospitals, and student dormitories.
6. Quality Certifications: Certified by CE, ISO9001, CCC, CB, RoHS, SASO, and SGS.
7. High Energy Efficiency: Achieves an energy efficiency ratio (COP) of 2.52–2.56, offering approximately 70% energy savings compared to traditional heaters.
8. High-Temperature Output: Capable of reaching a maximum outlet water temperature of 80°C when the ambient air temperature is between 5°C and 45°C.
Advantages
1. Compressor
Our large-scale heat pumps utilize US-made Copeland scroll compressors, while smaller models use compressors; both are specifically designed for heat pump applications to ensure high operational efficiency.
2. Electrical Control System
The control system manages circulation pumps, water make-up, water supply, auxiliary electric heating, and PID-controlled automatic defrosting. Users can configure parameters to meet specific project requirements and achieve full system automation.
3. Shell-and-Tube Heat Exchanger
The unit employs a high-efficiency shell-and-tube heat exchanger with a heat transfer surface area 3.7 times larger than that of bare-tube designs. Its unique configuration and compact spiral structure ensure optimal heat exchange for the refrigerant.
4. Electronic Expansion Valve
We utilize Sanhua expansion valves in conjunction with our proprietary control system to develop a specialized electronic expansion controller. This system employs digital technology to adjust refrigerant flow based on temperature factors, ensuring optimal flow rates and achieving a higher Coefficient of Performance (COP).
Specifications
| type | FKH-10I/CGW | FKH-18II/CGW | FKH-35II/CGW |
| Side air outlet | Top out wind | Top out wind | |
| Power specifications | 220V～50Hz | 380V 3N～50Hz | 380V 3N～50Hz |
| Heating capacity under A1 operating condition(20) |
10kW | 18kW | 35kW |
| Heating consumption power under A1 working condition |
4.8kW | 8.2kW | 16.8kW |
| Heating capacity under A2 working condition(7) |
9.5kW | 17kW | 34kW |
| Heating consumption power under A2 working condition |
5kW | 8.9kW | 17.9kW |
| Heating capacity under A3 working condition(-12) |
9.5kW | 17kW | 32kW |
| Heating consumption power under A3 working condition |
6.2kW | 10.6kW | 20.6kW |
| Heating capacity under A4working condition(-20) |
8kW | 16kW | 30kW |
| Heating consumption power under A4 working condition |
5.6kW | 11.1kW | 20.1kW |
| Maximum operating current | 40A | 35A | 70A |
| discharge | 1.7m³/h | 3.1m³/h | 6m³/h |
| noise | ≤56dB(A) | ≤58dB(A) | ≤60dB(A) |
| Water side pressure loss | ≤72kPa | ≤75kPa | ≤75kPa |
| Unit size (length ×widthx height mm) | 1030×410×1390 | 860×780×1780 | 1550×780×1780 |
| CONNECT SIZE | DN32(hexagon nipples)) |
DN32(hexagon nipples)) |
DN40(hexagon nipples) |
| Unit weight(kg) | 160 | 215 | 415 |
Need Further Assistance
Leomon offers high-quality ODM and OEM services, providing solutions tailored to your specific requirements. Contact us today to learn more.
|
|
